Danfoss STC65-80, STC100-150 manual stop valve features
Applicable to all common refrigerants including R717 and non corrosive gases/liquids dependent on sealing material compatibility
• Available with:

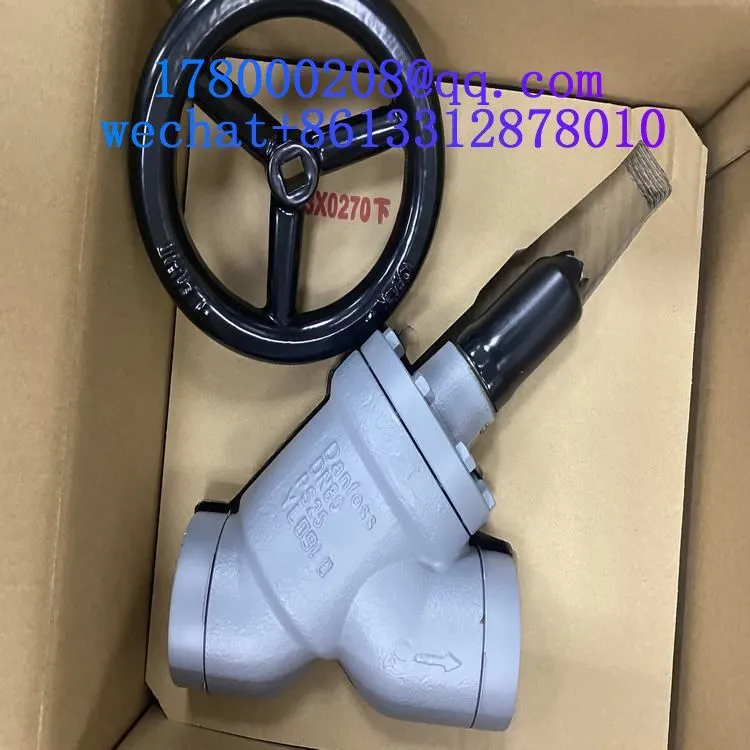

– Heavy duty industrial handwheel for frequent operation
– Vented cap for infrequent operation

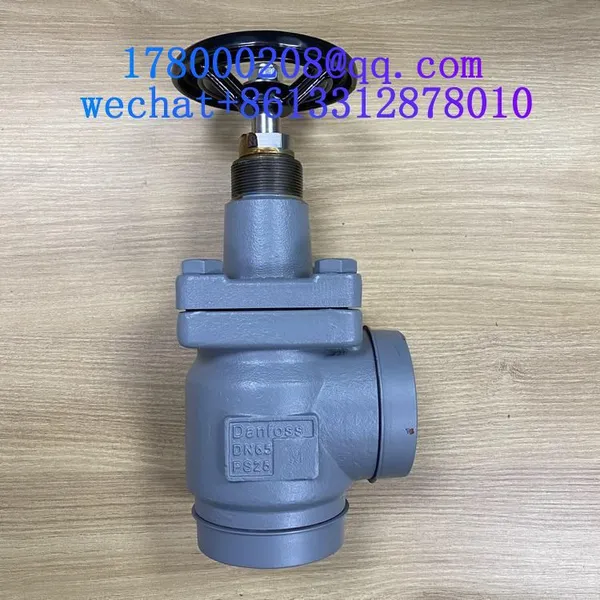

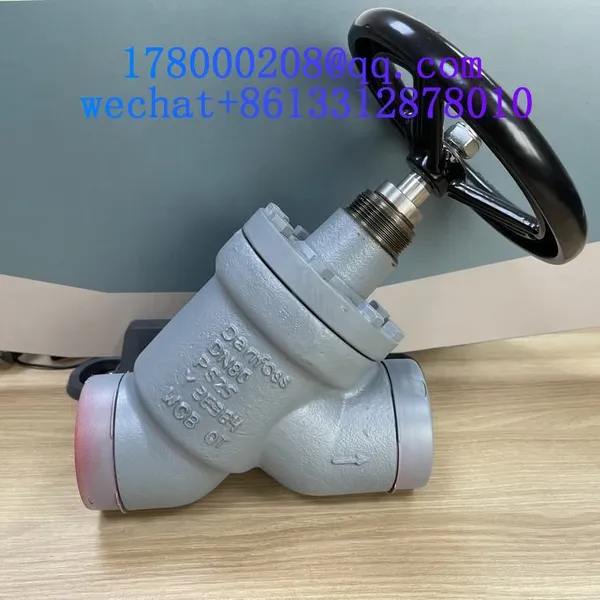

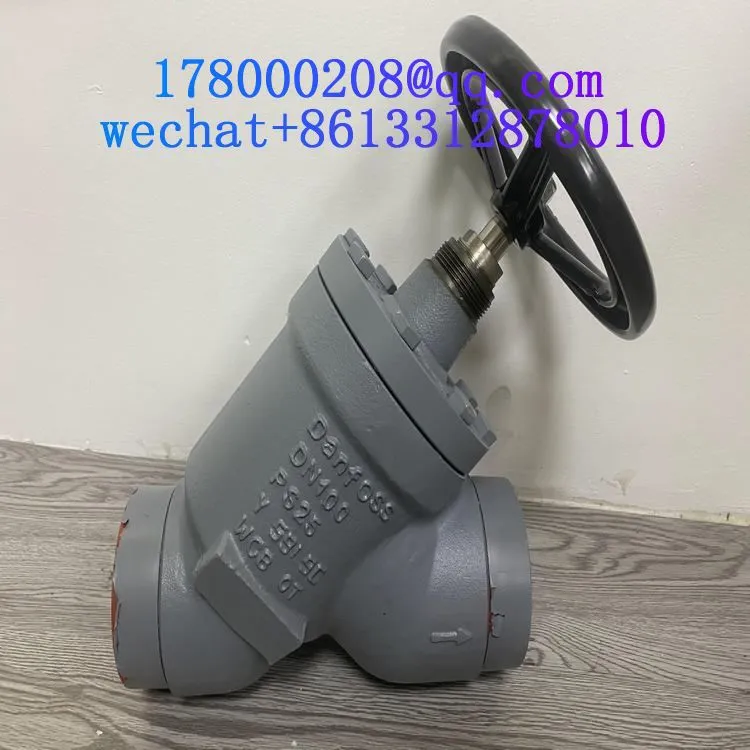

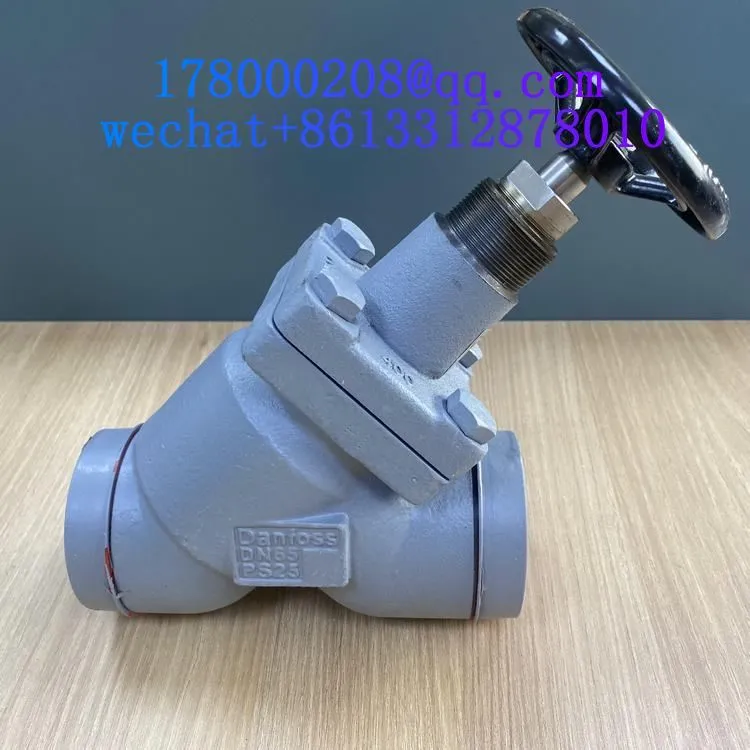

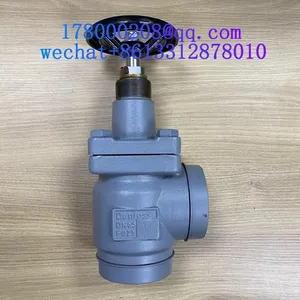

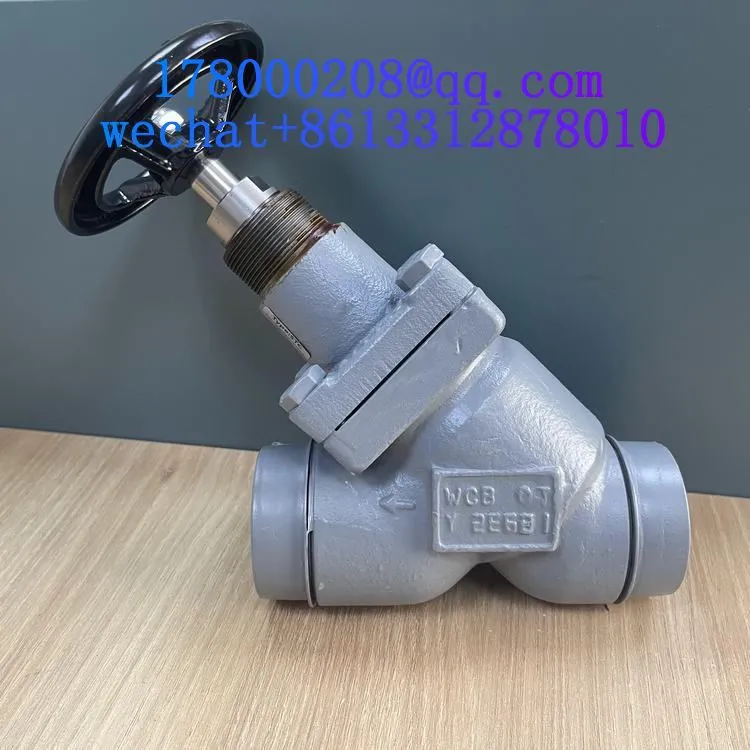

• Available in angle and straight versions with standard bonnet for installation in normal insulated systems
• The valves and caps are prepared for sealing, to prevent operation by unauthorized persons
• Internal metal backseating
– DN 15 - 150 (½ - 6 in.)
• Can accept flow in both directions
• Max. working pressure: 25 bar g (365 psi g)
• Temperature range: –50/+150 o C (–58/+302 o F)
• Design specification according to DIN 3158
Danfoss STC65-80, STC100-150 manual stop valve parameter
| Gross weight | 7.05 kg |
| Net weight | 6.05 kg |
| EAN | 5702428884297 |
| Approval | LLC CDC TYSK |
| Colour Paint | Gray |
| Connection standard | GB/T 17395 |
| Direction | Straightway |
| Equipment | Handwheel |
| Inlet connection size [in] | 2 1/2 in |
| Inlet connection size [mm] | 65 mm |
| Inlet connection type | Butt weld |
| Max. Working Pressure [bar] | 25 bar |
| Max. Working Pressure [psig] | 365 psig |
| Outlet connection size [in] | 2 1/2 in |
| Outlet connection size [mm] | 65 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Product description | Stop Valve |
| Product group | Shut-off and regulating valves |
| Product name | Shut-off valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R22 R404A R717 R507A |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | STC 65 |
