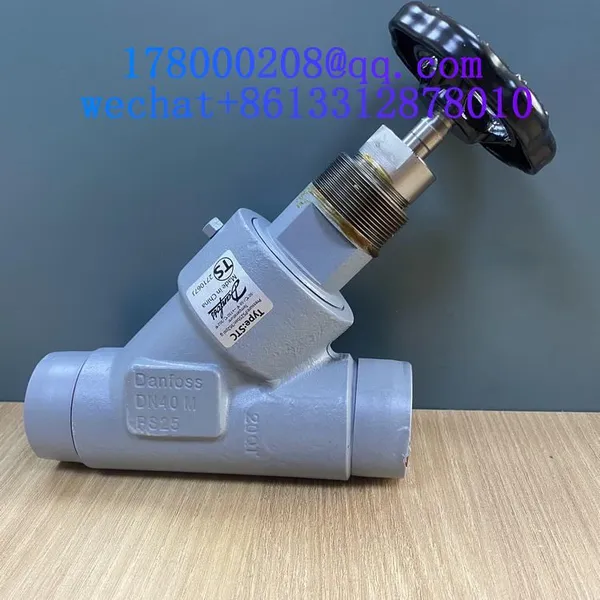

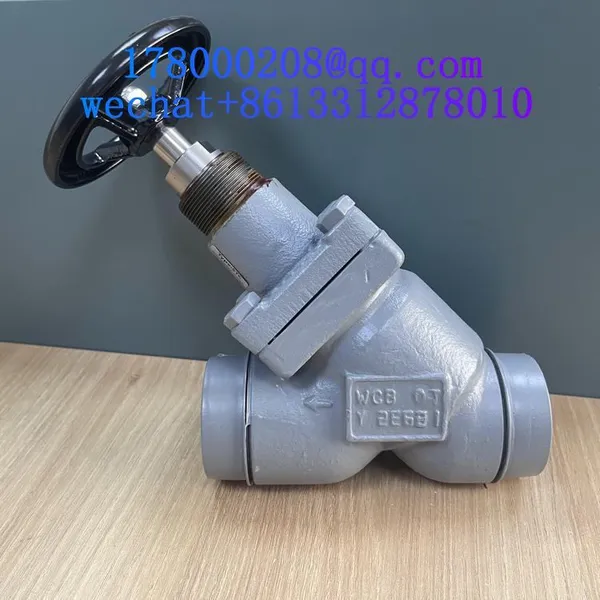

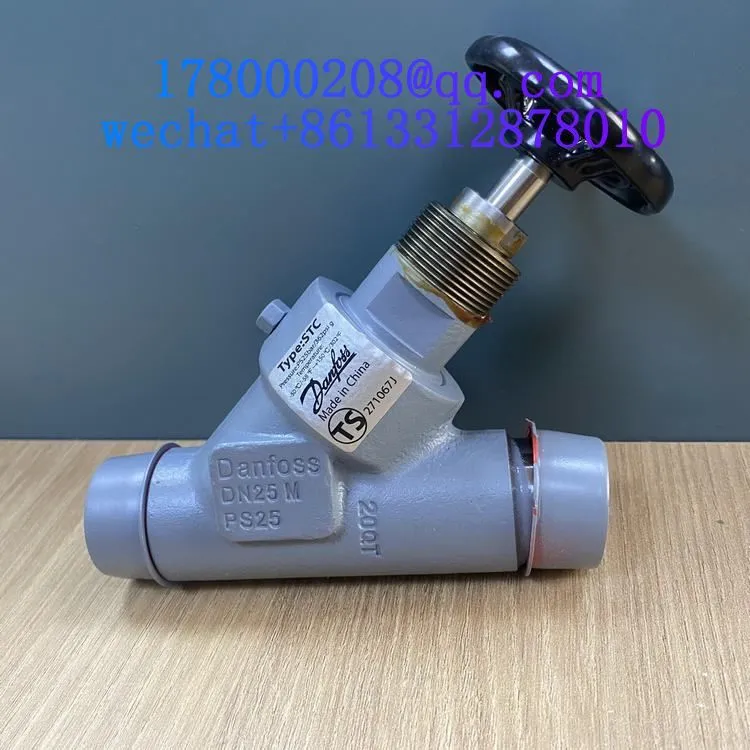

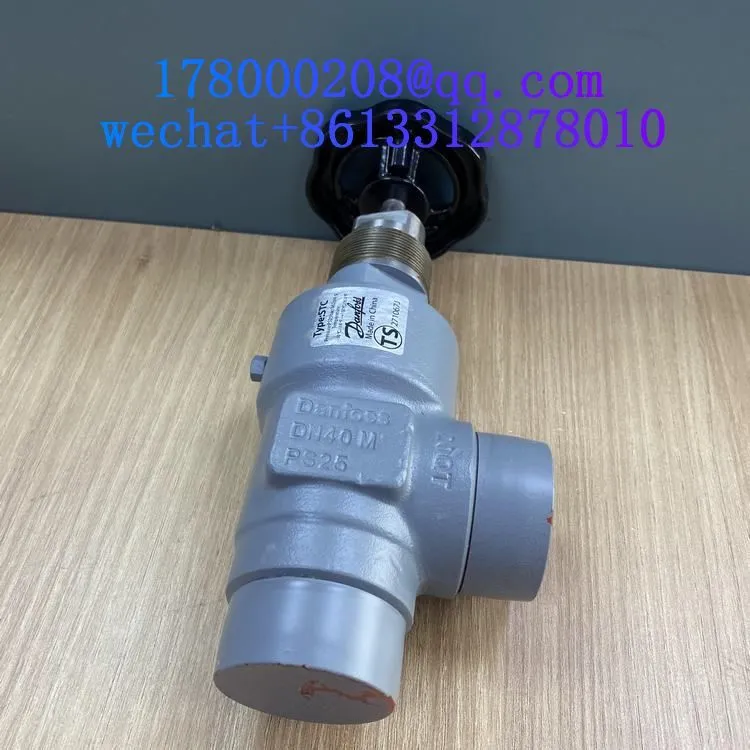

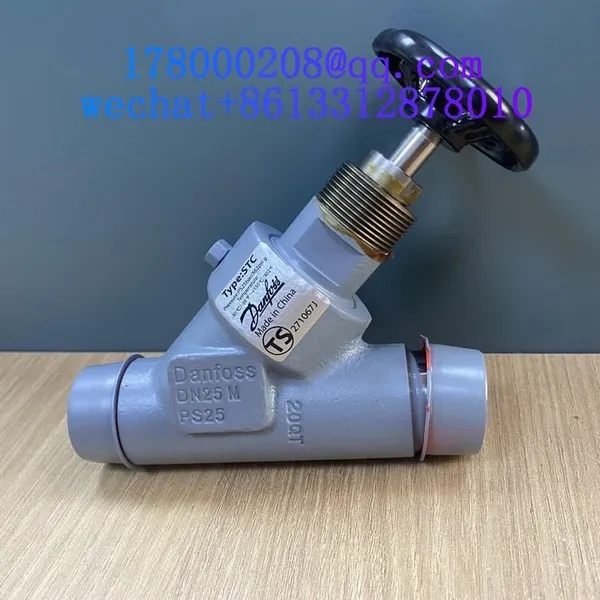

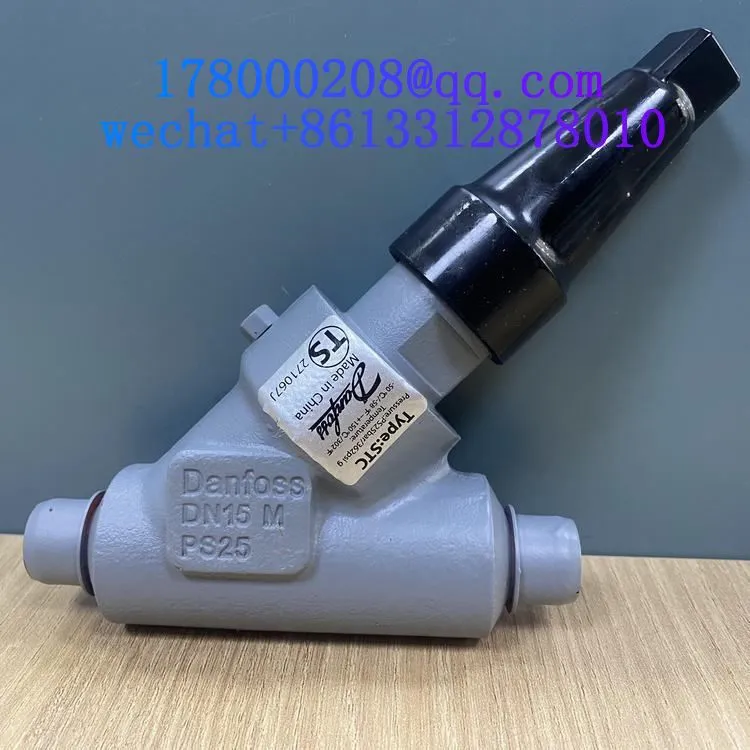

Danfoss STC15-20/STC25-32/STC40-50 Stop Valve for Ammonia Refrigeration

Danfoss STC15-20/STC25-32/STC40-50 Stop Valve for Ammonia Refrigeration thumbnail-1
Danfoss STC15-20/STC25-32/STC40-50 Stop Valve for Ammonia Refrigeration thumbnail-2
Danfoss STC15-20/STC25-32/STC40-50 Stop Valve for Ammonia Refrigeration thumbnail-3
Danfoss STC15-20/STC25-32/STC40-50 Stop Valve for Ammonia Refrigeration thumbnail-4
Danfoss STC15-20/STC25-32/STC40-50 Stop Valve for Ammonia Refrigeration thumbnail-5
Danfoss STC15-20/STC25-32/STC40-50 Stop Valve for Ammonia Refrigeration photo-1
Danfoss STC15-20/STC25-32/STC40-50 Stop Valve for Ammonia Refrigeration photo-2
Danfoss STC15-20/STC25-32/STC40-50 Stop Valve for Ammonia Refrigeration photo-3
Danfoss STC15-20/STC25-32/STC40-50 Stop Valve for Ammonia Refrigeration photo-4
Danfoss STC15-20/STC25-32/STC40-50 Stop Valve for Ammonia Refrigeration photo-5
CNY 350 - 950 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Danfoss
Place of Origin:
China
Model Number:
STC15，STC20，STC25，STC32，STC40，STC50
Contact Supplier Request Quote Chat Now
Guangzhou Sizhuo Trading Co. Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Danfoss
Place of Origin China
Model Number STC15，STC20，STC25，STC32，STC40，STC50
Material Other, Low temperature carbon steel
Application Other, refrigeration
Structure Shutoff
Standard or Nonstandard Standard
Pressure Medium Pressure
Power Other, hand movement
Port Size 15-50
Media Other, Freon and ammonia
Temperature of Media Normal Temperature

Danfoss STC15-20/STC25-32/STC40-50 stop valve for ammonia refrigeration introduction

STC are angleway and straightway shut-off valves which are designed to meet industrial refrigeration application requirements.The valves are designed to give favourable flow characteristics and are easy to dismantle and repair when necessary.

Danfoss STC15-20/STC25-32/STC40-50 stop valve for ammonia refrigeration features

Applicable to all common refrigerants including R717 and non corrosive gases/liquids dependent on sealing material compatibility

• Available with:

– Heavy duty industrial handwheel for frequent operation

– Vented cap for infrequent operation

• Available in angle and straight versions with standard bonnet for installation in normal insulated systems

• The valves and caps are prepared for sealing, to prevent operation by unauthorized persons

• Internal metal backseating

– DN 15 - 150 (½ - 6 in.)

• Can accept flow in both directions

• Max. working pressure: 25 bar g (365 psi g)

• Temperature range: –50/+150 o C (–58/+302 o F)

• Design specification according to DIN 3158



Product Tags: valves , shut-off valves , Danfoss valves , stop valve , STC shut-off valves , ammonia valves
