Home > Electrical & Electronics > Transmitter > Pressure Transmitter > AKS33-060G2110 Pressure Sensor Produced by Danfoss

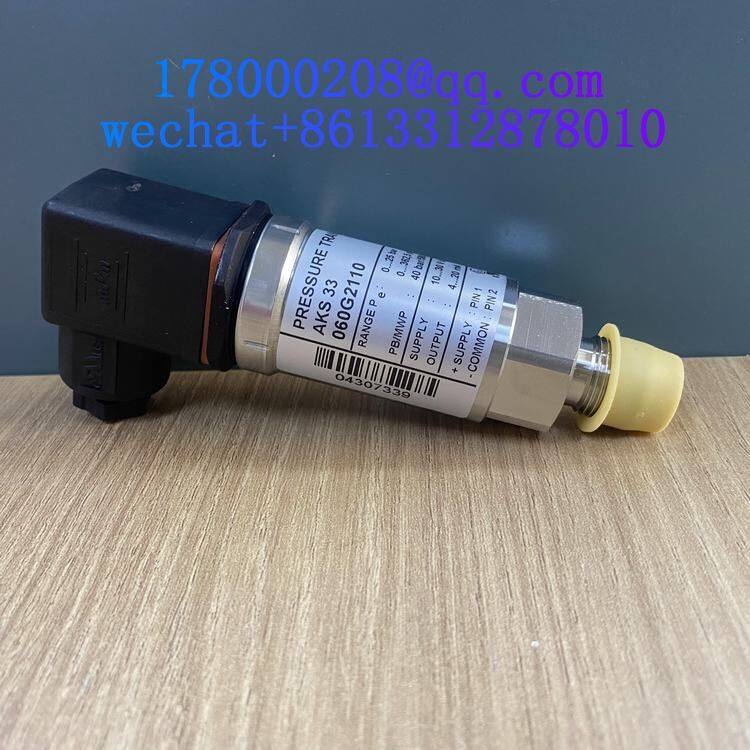

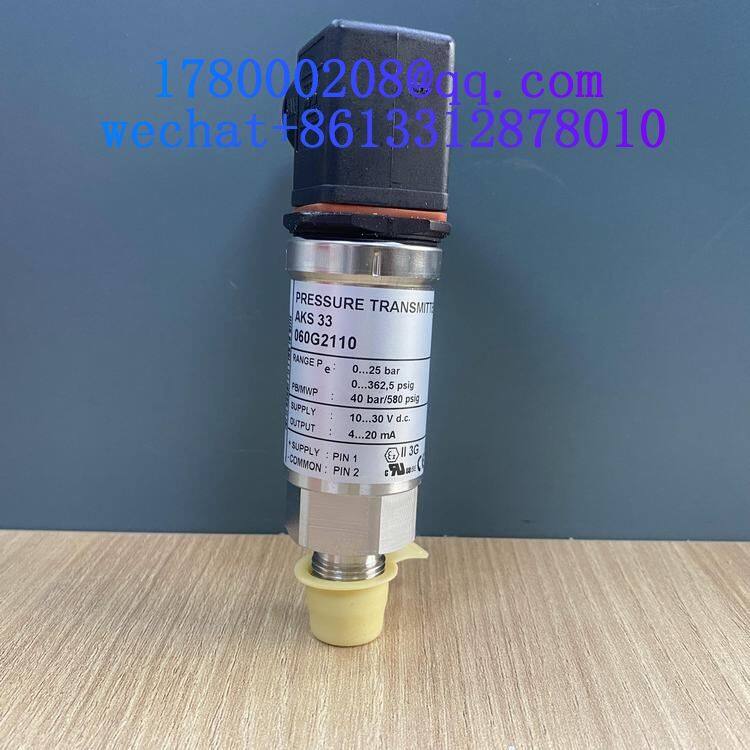

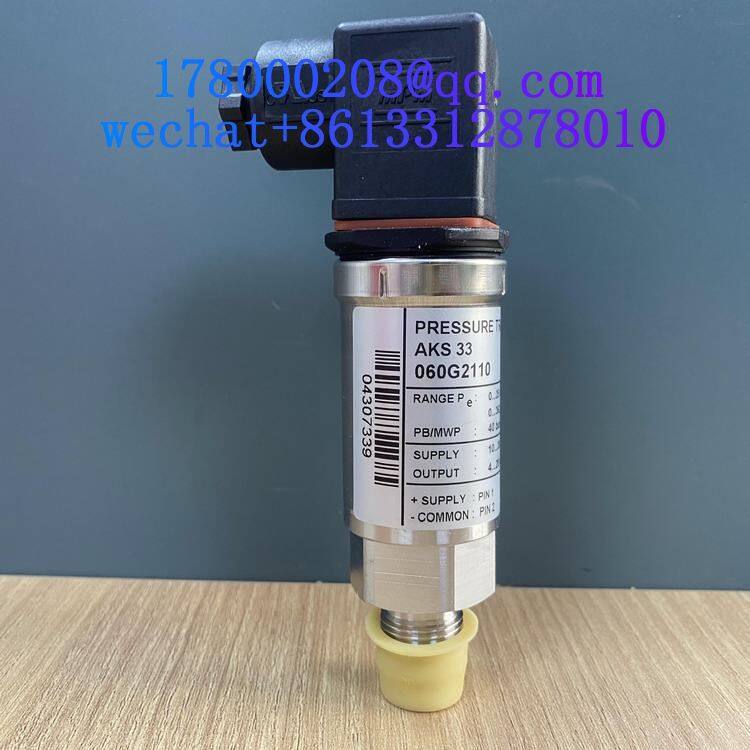

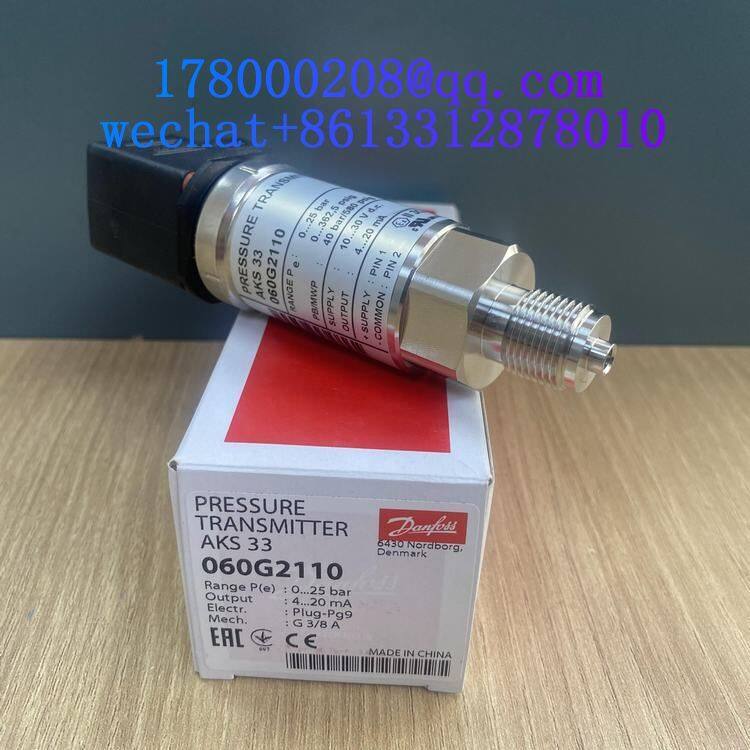

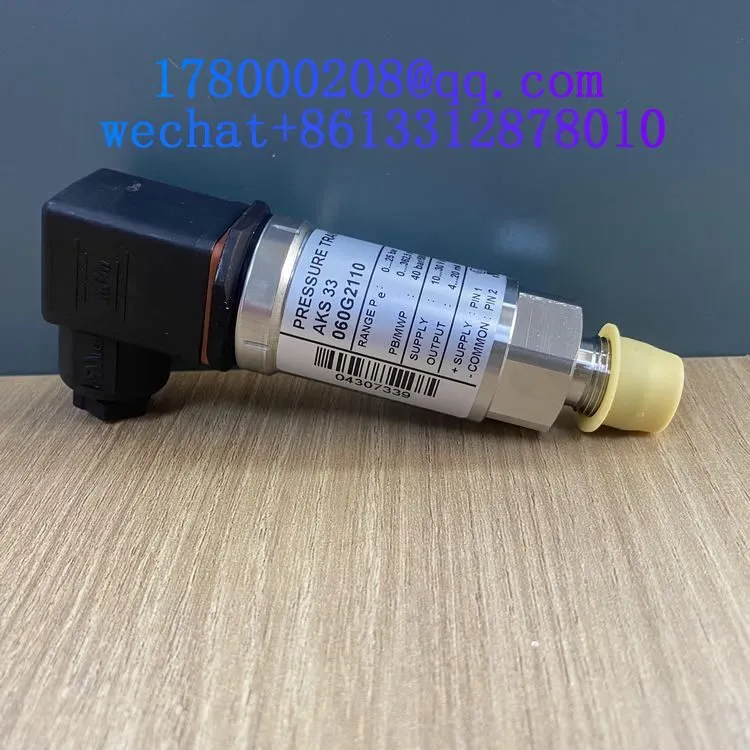

AKS33-060G2110 Pressure Sensor Produced by Danfoss
CNY 1260 - 1350
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Danfoss
Place of Origin:
China
Model Number:
060G2110
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
7 days
Related Products
-
Danfoss STC15-20/STC25-32/STC40-50 Stop Valve for Ammonia RefrigerationCNY 350 - 950MOQ: 1 Unit -
Danfoss STC65-80, STC100-150 Manual Stop ValveCNY 1300 - 4500MOQ: 1 Unit
-
Danfoss SVA-S10-15/SVA-S20-25-32D Handwheel Stop ValveCNY 680 - 1200MOQ: 1 Unit
-
SVA-S40-50, SVA-S65-80D Refrigeration Stop Valve Produced by DanfossCNY 1300 - 3300MOQ: 1 Unit
-
Danfoss NRVA15/20-25/32-NRVA40/50 Check ValveUS$ 1100 - 2600MOQ: 1 Piece
Brand Name
Danfoss
Place of Origin
China
Model Number
060G2110
AKS33-060G2110 pressure sensor produced by Danfoss details
Pressure transmitter, AKS 33, 0.00 bar - 25.00 bar, 0.00 psi - 362.59 psi，060G2110
Pressure reference: Sealed gauge, Output signal: Current, Electrical connection: DIN-plug, Pressure connection type: G, Pressure connection size: 3/8
| Gross weight | 0.2 kg |
| Net weight | 0.16 kg |
| EAN | 5702422066088 |
| + supply | Pin 1 |
| - common | Pin 2 |
| Accuracy, max. [±FS%] | 0.8 % |
| Accuracy, typical [±FS%] | 0.3 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [Max] | 85 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | ATEX GOST POCC cUR |
| Approval comments | ATEX Ex nA IIA T3 Gc |
| Approval standard | 6967179 E227388 E31024 |
| Compensated temp. range [°C] [Max] | 80 °C |
| Compensated temp. range [°C] [Min] | 0 °C |
| Compensated temp. range [°F] [Max] | 176 °F |
| Compensated temp. range [°F] [Min] | 32 °F |
| Electrical conn. Male/Female | Male and Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 9 |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| Flush diaphragm | No |
| High Clipping Level | 22.4 |
| International Article Number | 5702422066088 |
| Intrinsically safe | No |
| Low Clipping Level | 3.6 |
| Medium temperature range [°C] [Max] | 85 °C |
| Medium temperature range [°C] [Min] | -40 °C |
