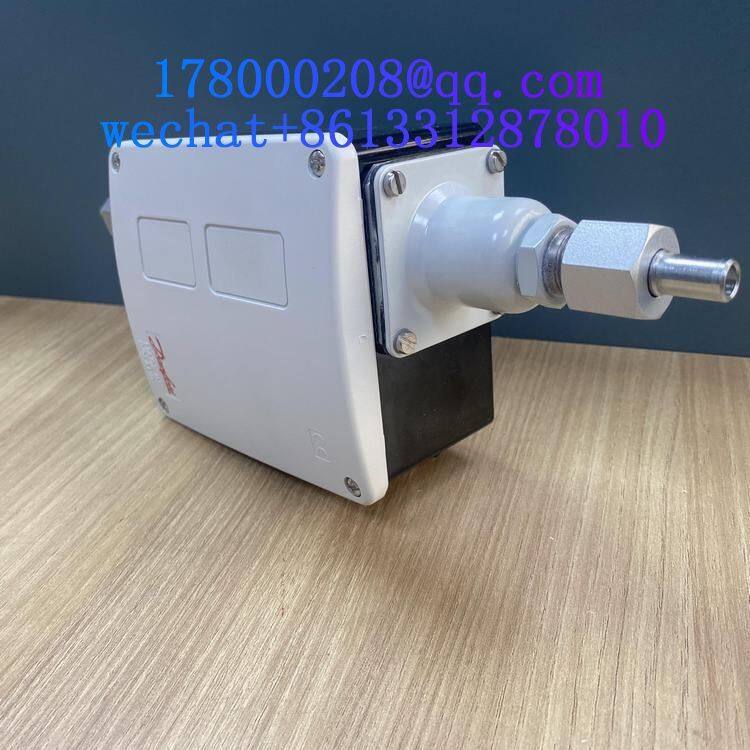

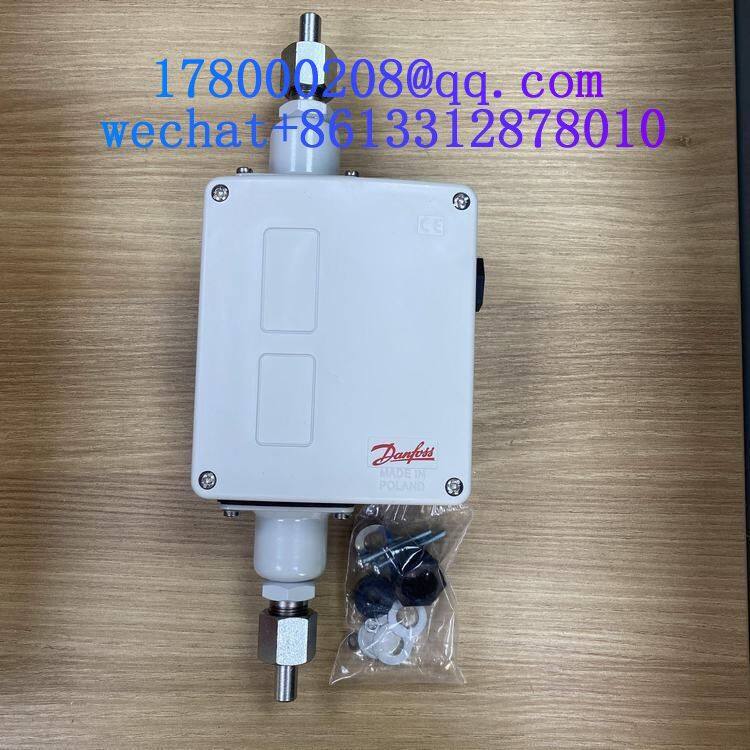

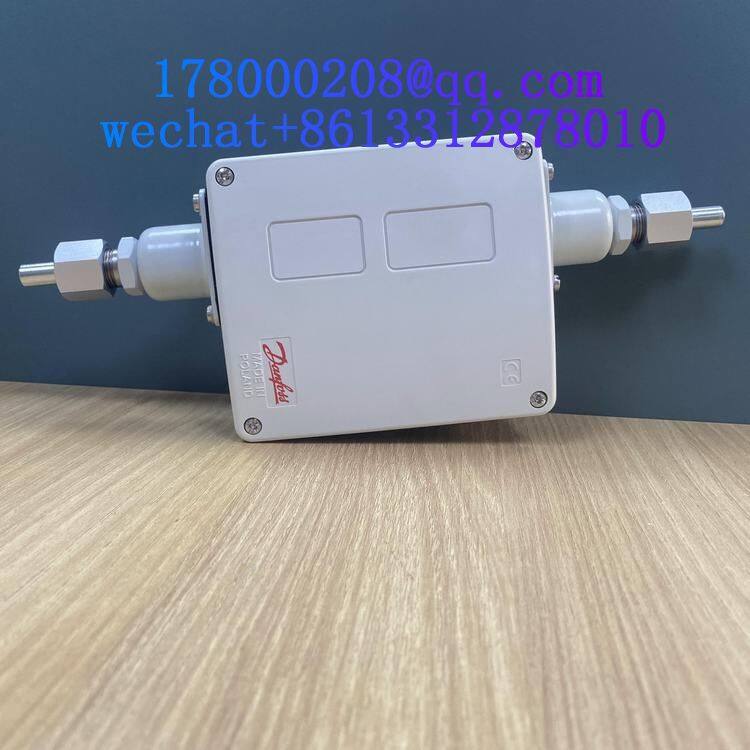

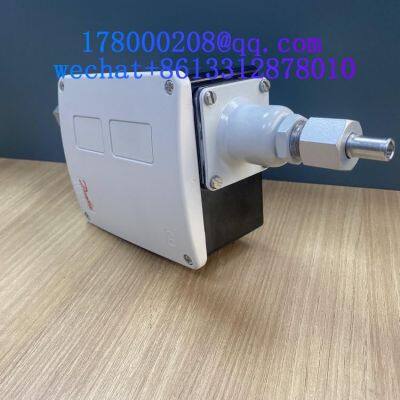

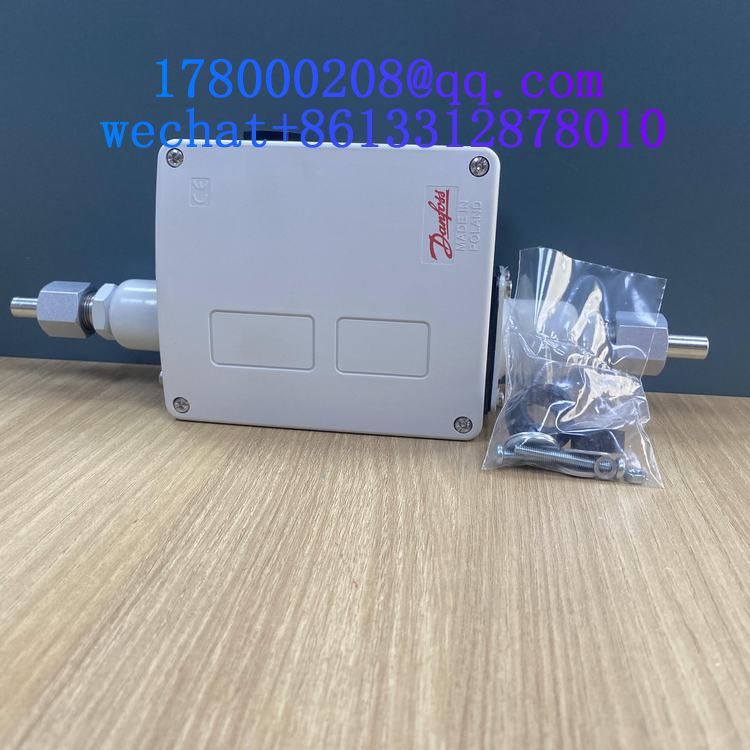

Danfoss RT260A-262A Differential Pressure Switch
CNY 2500 - 2700
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Danfoss
Place of Origin:
Poland
Model Number:
017D0021
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
3 days
Related Products
-
Danfoss EVRA3-10-032F6210 Solenoid ValveUS$ 2100 - 2200MOQ: 1 Piece -
Danfoss EVRA15-20-032F6221 Ammonia Solenoid ValveUS$ 2900 - 3100MOQ: 1 Piece
-
EVRA25-032F6225 Solenoid Valve Produced by DanfossUS$ 2900 - 3100MOQ: 1 Piece
-
Danfoss EVRA32-40-042H1126 Servo Solenoid ValveUS$ 4500 - 4800MOQ: 1 Piece
-
Danfoss TUV.SV.19-SFA15T213 Safety ValveCNY 2000 - 2100MOQ: 1 Piece
Brand Name
Danfoss
Place of Origin
Poland
Model Number
017D0021
Max. Voltage
220V
Max. Current
RT260A
Max. Working Pressure
22bar
Danfoss RT260A-262A differential pressure switch technical parameter

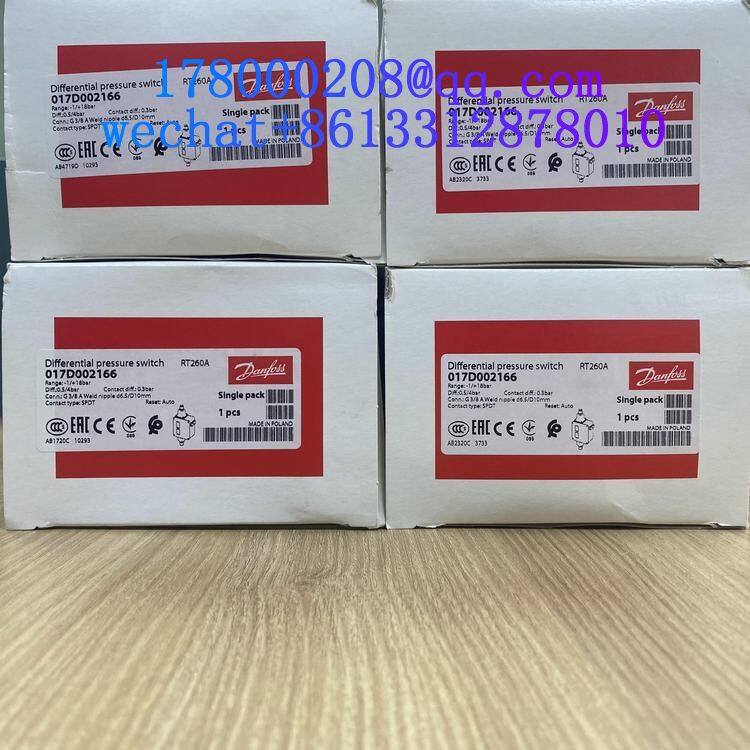

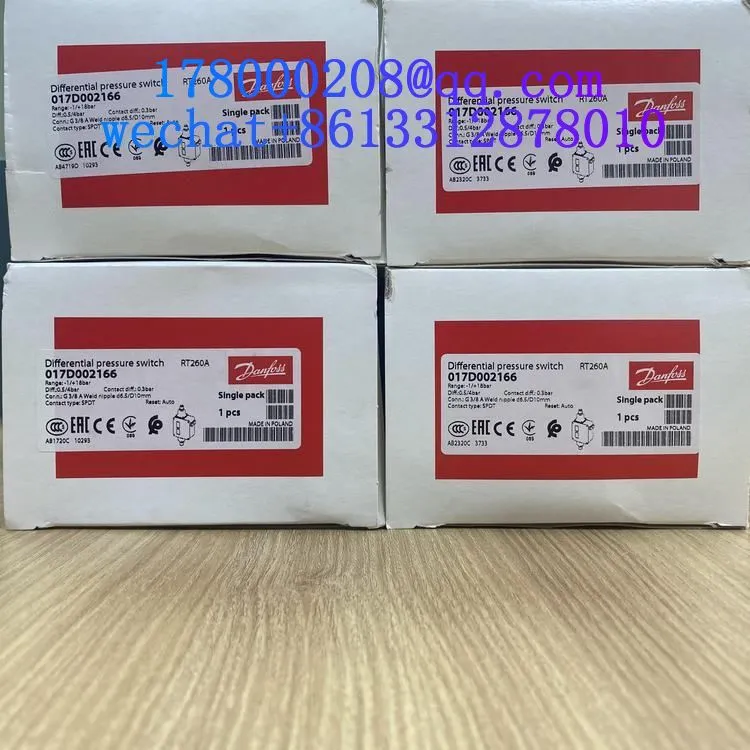

Differential pressure switch, RT260A，017D002166
.setting range [bar]: 0.50 - 4.00, Reset function: Auto, Pressure connection type: G, Pressure connection size: 3/8, Enclosure rating IP: IP66, Max. Working Pressure [bar]: 22.0
| Gross weight | 1.27 kg |
| Net weight | 1.02 kg |
| EAN | 5702428042840 |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -50 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -58 °F |
| Ammonia application | Yes |
| Approval | CCC CE EAC KR LVD PZH RINA RMRS RoHS RoHS China TYSK CMIM LLC CDC EURO-TYSK UKCA |
| Contact differential [bar] | 0.3 bar |
| Contact function | SPDT |
| Contact rating | AC15=3 A, 400 V AC1=10 A, 400 V DC13=12 W, 220 V AC3=4 A, 400 V LR=28 A, 400 V |
| .setting range [bar] [Max] | 4 bar |
| .setting range [bar] [Min] | 0.5 bar |
| .setting range [MPa] [Max] | 0.4 MPa |
| .setting range [MPa] [Min] | 0.05 MPa |
| .setting range [psi] [Max] | 58 psi |
| .setting range [psi] [Min] | 7.3 psi |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | 2xPg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-4/-5 |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 10A |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2 Flex, no ferrules: 0.2-2.5 mm2 Solid/stranded: 0.2-2.5 mm2 |
| Enclosure rating IP | IP66 |
| Max. test pressure [bar] Pe | 25 bar |
| Max. test pressure [psig] | 362 psig |
| Max. Working Pressure [bar] | 22 bar |
| Max. Working Pressure [psig] | 319 psig |
| Operat. range LP side [bar] Pe [Max] | 18 bar |
| Operat. range LP side [bar] Pe [Min] | -1 bar |
| Operat. range LP side [psig]Pe [Max] | 261 psig |
| Operat. range LP side [psig]Pe [Min] | -15 psig |
| Packing format | Multi pack |
| Pressure connection notes | Weld nipple d6.5/D10mm |
| Pressure connection size | 3/8 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] Pe [Max] | 18 bar |
| Pressure range [bar] Pe [Min] | -1 bar |
| Product accessories | Generic accessories Switches accessories |
| Product description | Diff. Pressure Switch |
| Product family name | RT |
| Product group | Switches and thermostats |
| Product name | Differential pressure switch |
| Quantity per packing format | 9 pc |
| Refrigerants | R11 R12 R123 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R507C R717 |
| Relay release time [s] | 0 " |
| Reset function | Auto |
| Serviceable | Contact systems |
| Type | RT260A |
| UL approved refrigerants | R11 R12 R123 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R507C |
