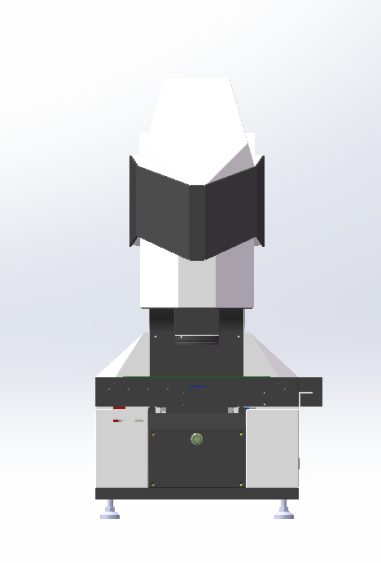

High Quality HD-200FV Multi-sensor Vision Measuring Machine

Name: High Quality HD-200FV Multi-sensor Vision Measuring Machine
Brand: HanDing
Availability: InStock

FOB Price

US$ 195000 - 198000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HanDing		Place of Origin	China
Model Number	HD-200FV

Model		HD-2015FV
CCD		20 Million pixel industrial camera
Lens		Double rate double telecentric lens
Light source system		Telecentric parallel contour light, annular surface light, coaxial light and low angle light that can be raised and lowered.
Z-axis working distance		100mm
Visual field	Large field of view mode	280*180mm
	High precision mode	150*100mm
Load-bearing capacity		15KG
Repeatability accuracy	Large field of view mode without stitching	±2μm
	Stitched large field of view mode	±3μm
	High precision mode without stitching	±1μm
	Stitched high precision mode	±2μm
Measurement accuracy	Large field of view mode without stitching	±5μm
	Stitched large field of view mode	±(5+0.02L)μm
	High precision mode without stitching	±3μm
	Stitched high precision mode	±(3+0.02L)μm
Measurement software		FMES-V2.0
Measurement mode		It can switch between 2 different fields of view arbitrarily, and can measure single or multiple products at the same time.
Measurement speed		3 seconds per 100 sizes
Operating environment		Temperature: 22℃±3℃ Humidity: 50～70% Vibration:<0.002mm/s, <15Hz
Monitor		Philips 27”
Main frame		Intel i7+16G+1T
Power supply		AC 110-240V,50/60HZ
Warranty		12 months
