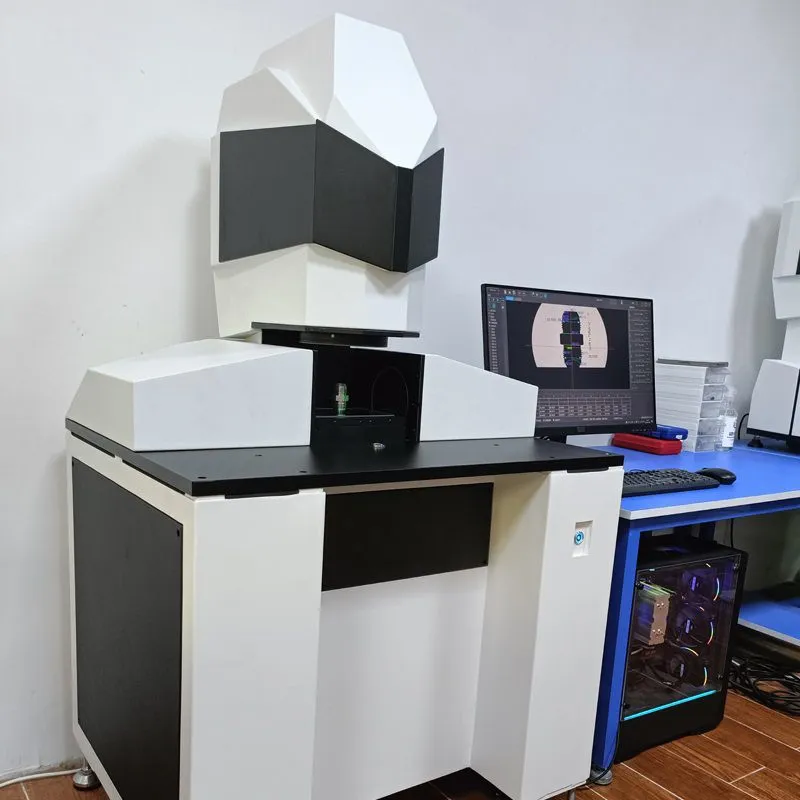

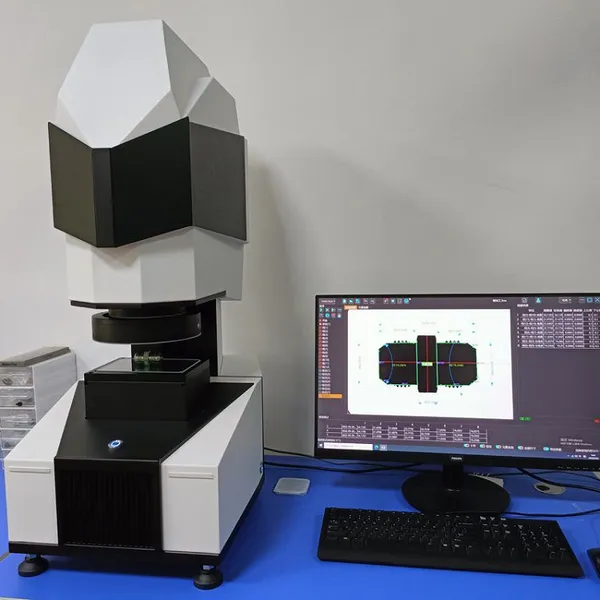

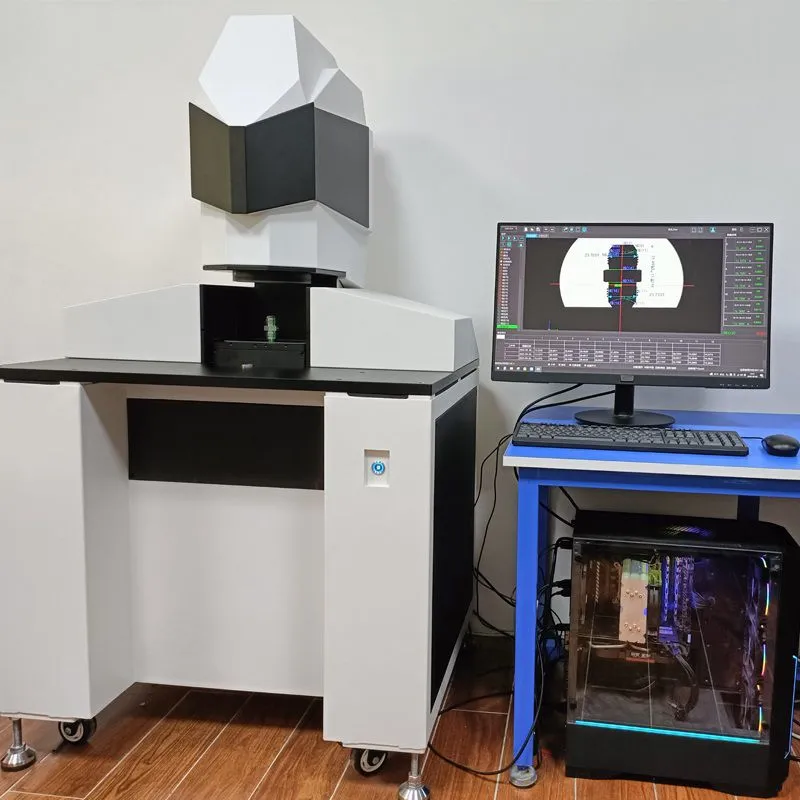

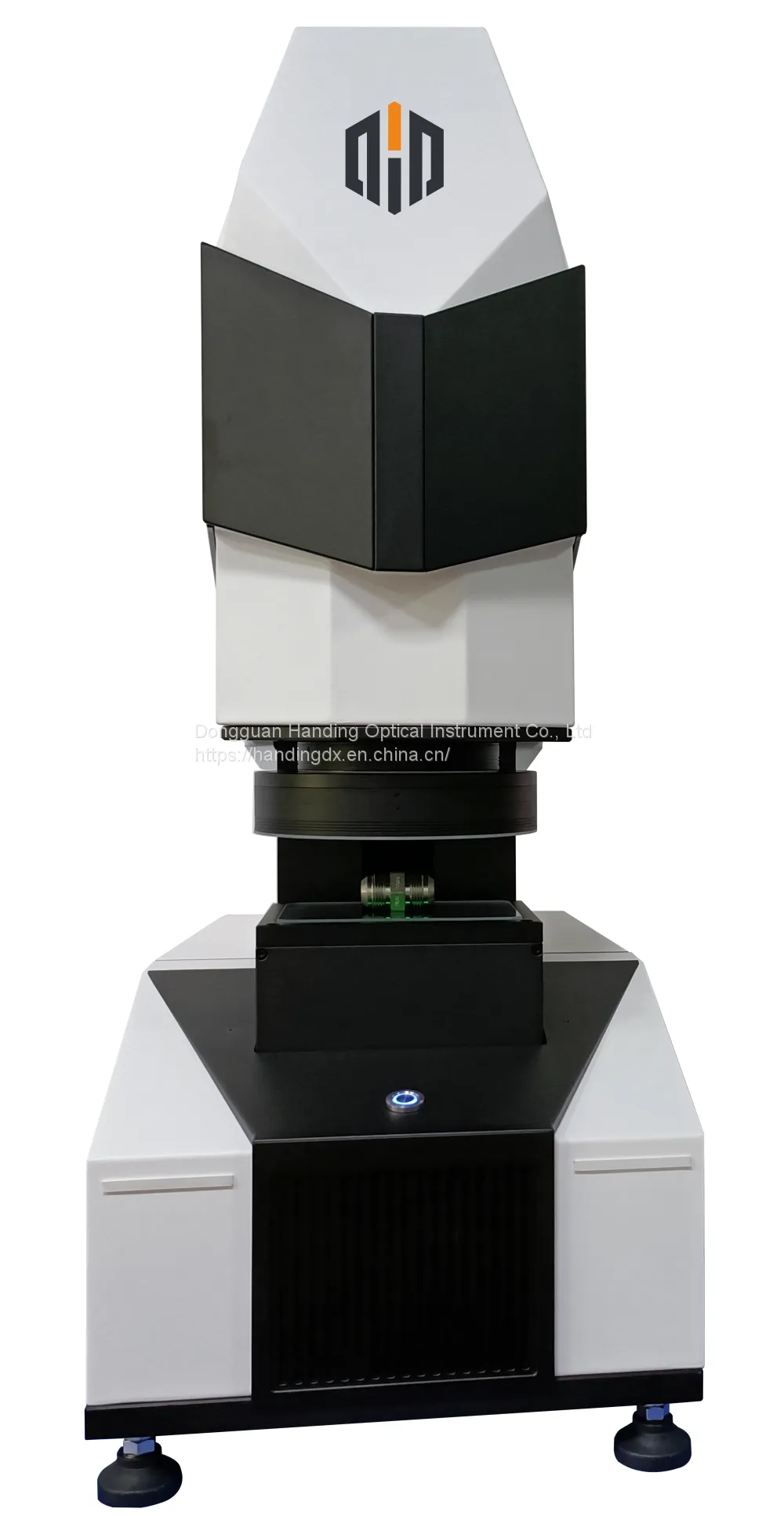

fully-automatic vision measuring machine 3D automatic vision measuring machine price

Name: fully-automatic vision measuring machine 3D automatic vision measuring machine price
Brand: HanDing
Price: CNY $92000 - 95000 / Set

FOB Price

CNY 92000 - 95000 / Set

1 Set(Min.Order)

Product Details

Brand Name:

HanDing

Place of Origin:

China

Model Number:

HD-90D

Model	HD-50D	HD-90D	SMU-180D
CCD	20 Million pixel industrial camera

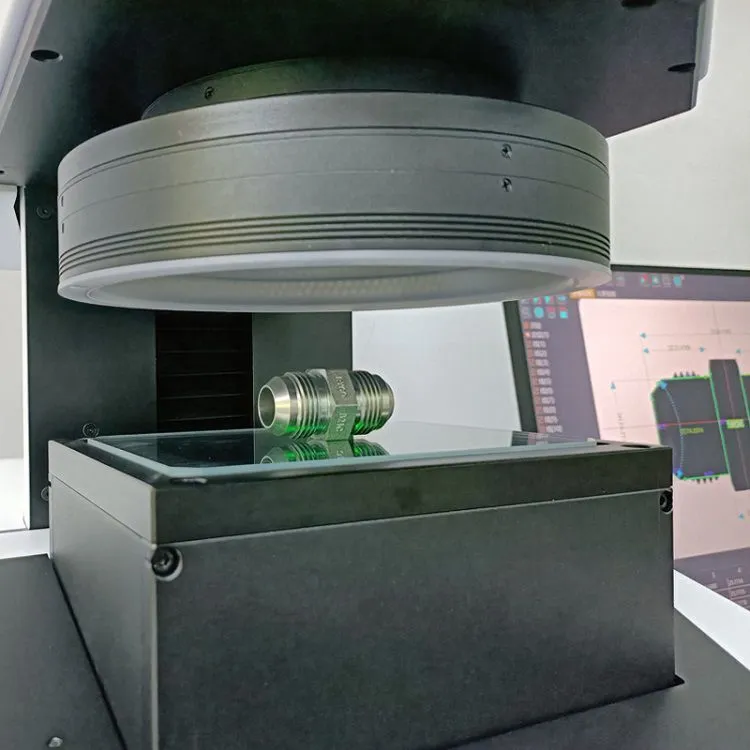

Lens	Ultra-clear bi-telecentric lens
Light source system	Telecentric parallel contour light and ring-shaped surface light.
Z-axis movement mode	45mm	55mm	100mm
Load-bearing capacity	15KG
Visual field	42×35mm	90×60mm	180×130mm
Repeatability accuracy	±1.5μm	±2μm	±5μm
Measurement accuracy	±3μm	±5μm	±8μm
Measurement software	IVM-2.0
Measurement mode	It can measure single or multiple products at the same time. the measurement time: ≤1-3 seconds.
Measurement speed	800-900 PCS/H
Power supply	AC220V/50Hz,200W
Operating environment	Temperature: 22℃±3℃ Humidity: 50～70% Vibration:<0.002mm/s, <15Hz
Weight	35KG	40KG	100KG
Warranty	12 months

Dongguan Handing Optical Instrument Co., Ltd: Contact nameDing; Phone86-13038878595; AddressChang'an Dongguan,Guangdong
