China Dual Visual Field Automatic Video Measuring Machine Factory
- 100 Set / Sets per Month
- SHENZHEN
- T/T PayPal Cash
- 30 days
-
Horizontal Instant Vision Measuring Machine Price & Instant Vision Measurement Systems Made in China
-
3D Rotating Measurement Microscope From HanDing Optical & 360 Degree Video Microscope Price
-
HanDing Optical Automatic Vision Measuring Instrument & Vision Measuring System & HD-432HYT
-
fully-automatic vision measuring machine 3D automatic vision measuring machine price
-
High Precision Multi Function Vision Measurement Machine Factory Price
-
Hot Sale BA-series Bridge type Video Measuring Machine/Optical Measuring Machine
Product Details
Brand Name: | HanDing | Place of Origin: | China | Model Number: | HD-432DA |
Product Description

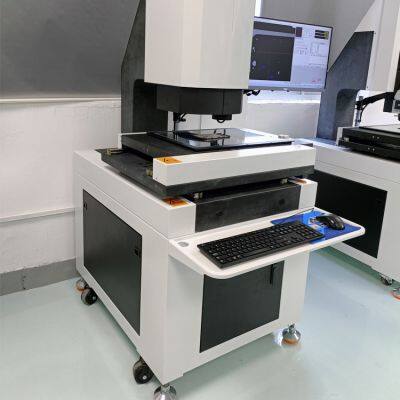

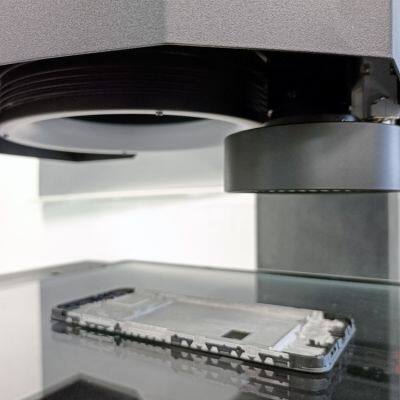

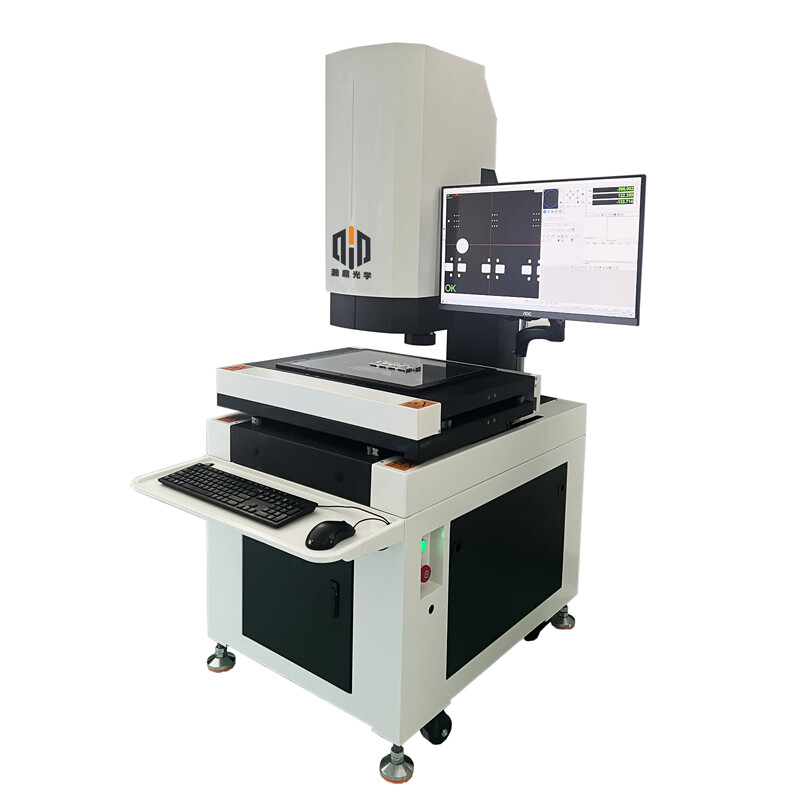

Video measuring machine with dual field of view
Model | HD-432DA | HD-542DA | HD-652DA |
X/Y/Z range | Large field of view: 400×300×200 Small field of view: 300×300×200 | Large field of view: 500×400×200 Small field of view: 400×400×200 | Large field of view: 600×500×200 Small field of view: 500×500×200 |
Overall dimensions | 700×1130×1662mm | 860×1222×1662mm | 1026×1543×1680mm |
Bearing capacity of glass countertop | 30Kg | 40Kg | 40Kg |
CCD | Large field of view, 20M pixel digital camera;Small field of view, 16M pixel digital camera | ||
Lens | Large field of view: 0.16X double telecentric lens Small field of view: 0.7-4.5X automatic zoom lens | ||
Software | HD- CNC 3D | ||
Power supply | 220V+10%,50/60Hz | ||
Optical scale resolution | Open linear scale 0.0005mm | ||
X/Y Measurement accuracy | Large field of view:(5+L/200) um Small field of view: (2.8+L/200)um | ||
Repeatability accuracy | 2um | ||
Using the environment | Temperature: 20-25℃ Humidity: 50%-60% | ||
PC | Philips 24”monitor, i5+8G+512G |
