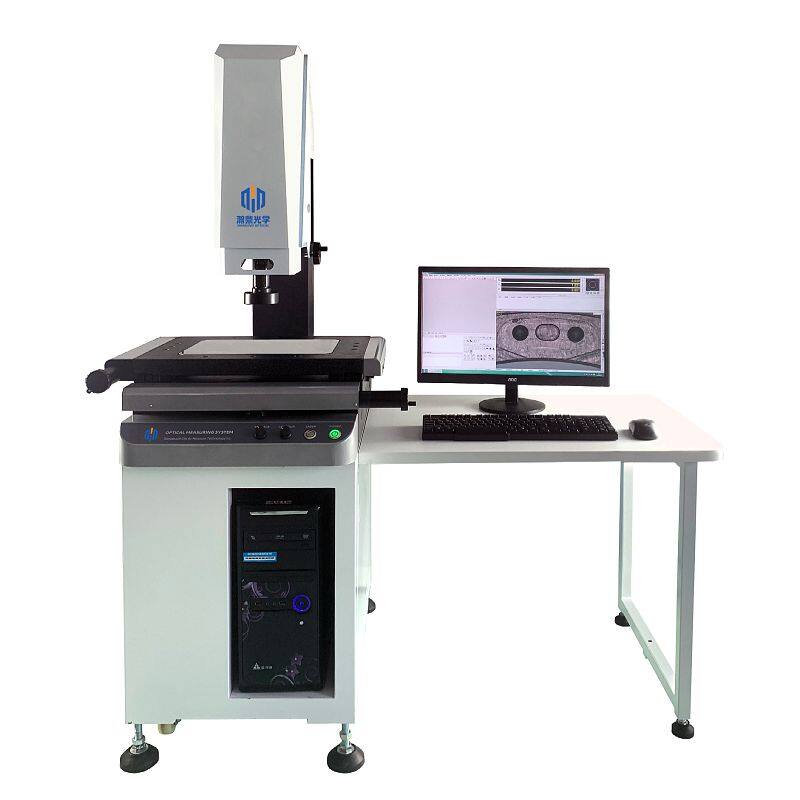

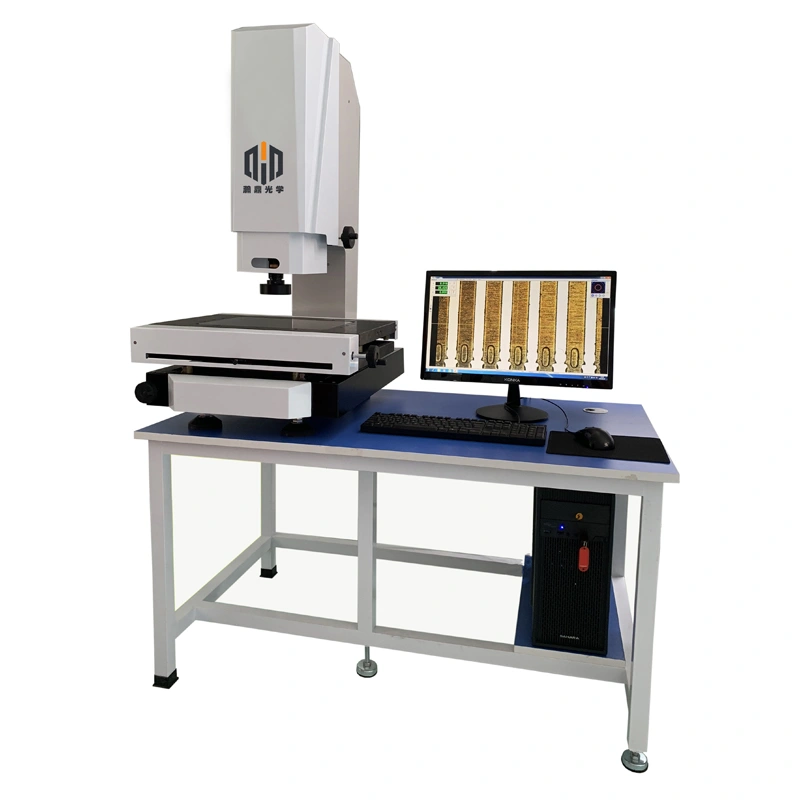

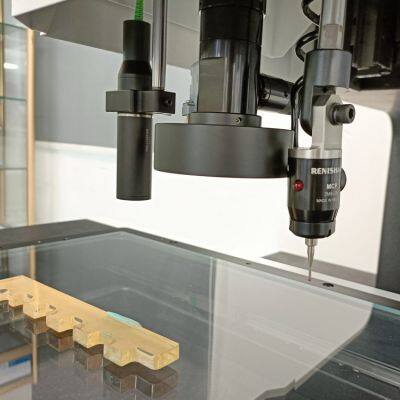

HD-322M Manual Video Measurement Systems & Video Measuring Machine Manufacturer

X/Y/Z measurement stroke

200×100╳200mm

300×200╳200mm

400×300╳200mm

500×400╳200mm

Z axis stroke

Effective space: 200mm, working distance: 90mm

XYZ axis base

 Grade 00 green marble

Machine base

 Grade 00 green marble

Size of glass countertop

250×150mm

350×250mm

450×350mm

550×450mm

Size of marble countertop

360mm×260mm

460mm×360mm

560mm×460mm

660mm×560mm

Bearing capacity of glass countertop

25kg

Transmission type

High precision cross drive guide and polished rod

Optical scale

High precision optical scale resolution: 0.001mm

X/Y linear measurement accuracy (μm)

≤3+L/200

Repetition accuracy (μm)

≤3

Camera

1/3″ HD color industrial camera

Lens

Fixed zoom lens, optical magnification: 0.7X-4.5X,

image magnification: 20X-128X

Software function and  Image system

Image software: it can measure points, lines, circles, arcs, angles, distances, ellipses, rectangles, continuous curves, tilt corrections, plane corrections, and origin setting. The measurement results display the tolerance value, roundness, straightness, position and perpendicularity. The degree of parallelism can be directly exported and imported into Dxf, Word, Excel, and Spc files for editing which is suitable for batch testing for customer report programming. At the same time, part of and the entire product can be photographed and scanned, and the size and image of the entire product can be recorded and archived, then the dimensional error marked on the picture is clear at a glance.

Image card: SDK2000 chip image transmission system, with clear image and stable transmission.

Illumination system

Continuously adjustable LED light (Surface illumination +contour illumination), with lower heating value and long service life

Overall dimension（L*W*H）

1000×600×1450mm

1100×700×1650mm

1350×900×1650mm

1600×1100×1650mm

Weight（kg）

100kg

150kg

200kg

250kg

Power supply

AC220V/50HZ　AC110V/60HZ

Computer

Customized computer host

Display

21 inches

Warranty

1 year warranty for the whole machine

Switching power supply

Mingwei MW 12V
