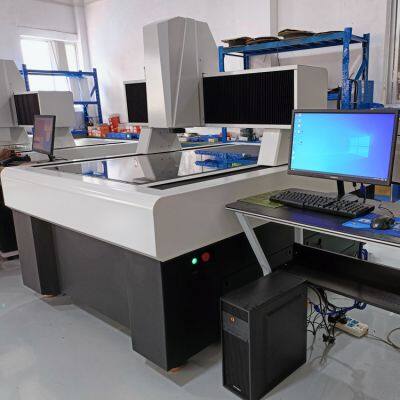

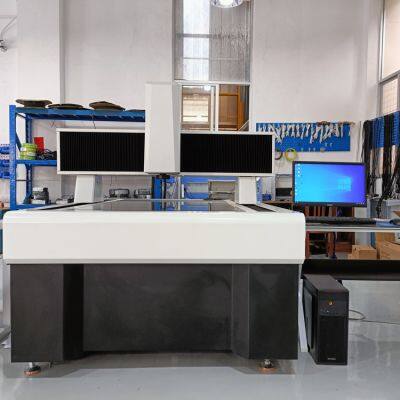

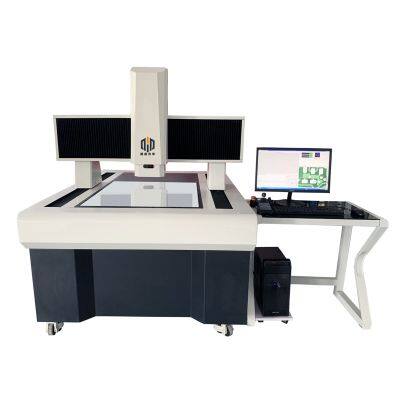

Large Range Automatic Video Measuring Machine & Automated Vision Measuring Systems

X/Y/Z measurement range

500×600×200mm

600×800×200mm

1200×1500×200mm

1500×2000×200mm

XYZ axis base

Grade 00 green marble

Machine base

Grade 00 green marble

Bearing capacity of glass countertop

30kg

Transmission type

Hiwin linear guide and TBI ground screw

UWC servo motor

Optical scale

High precision optical scale resolution: 0.0005mm

X/Y linear measurement accuracy (μm)

≤3+L/200

≤4+L/200

Repetition accuracy (μm)

≤3

≤4

Camera

TEO HD color industrial camera

Lens

Pomeas auto zoom lens, optical magnification: 0.7X-4.5X,

image magnification: 30X-200X

Software function and  Image system

Image software: it can measure points, lines, circles, arcs, angles, distances, ellipses, rectangles, continuous curves, tilt corrections, plane corrections, and origin setting. The measurement results display the tolerance value, roundness, straightness, position and perpendicularity. The degree of parallelism can be directly exported and imported into Dxf, Word, Excel, and Spc files for editing which is suitable for batch testing for customer report programming. At the same time, part of and the entire product can be photographed and scanned, and the size and image of the entire product can be recorded and archived, then the dimensional error marked on the picture is clear at a glance.

Image card: SV2000E chip image transmission system, with clear image and stable transmission.

Illumination system

Continuously adjustable LED light (Surface illumination +contour illumination), with lower heating value and long service life

Overall dimension（L*W*H）

1500×1200×1800mm

1750×1300×1800mm

2400×1850×1800mm

2950×2100×1800mm

Weight（kg）

1350kg

1550kg

1750kg

1850kg

Power supply

AC220V/50HZ　AC110V/60HZ

Computer

Customized computer host

Display

Philips 27 inches

Warranty

1 year warranty for the whole machine

Switching power supply

Mingwei MW 12V/24V
