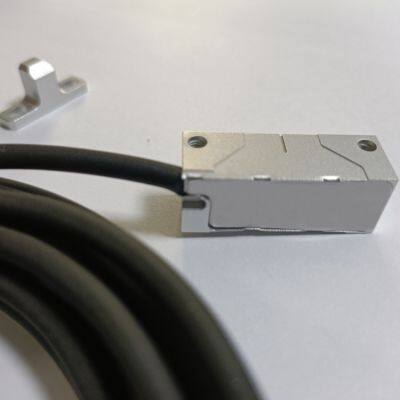

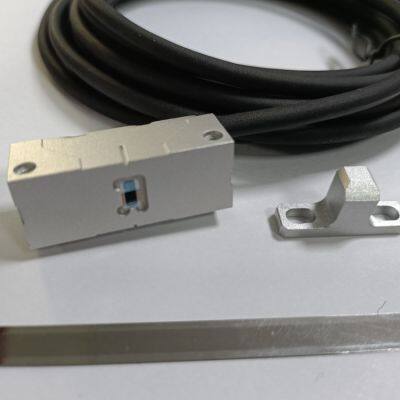

Readhead Specifications | |
Dimensions | L 32mm × W 12mm × H 10.6mm |
Grating sensor | 40μm |
Weight | Readhead:7.1g cable:18g/m |
Power | 5V±10% 230mA |
Output signal | Differential TTL, origin signal |

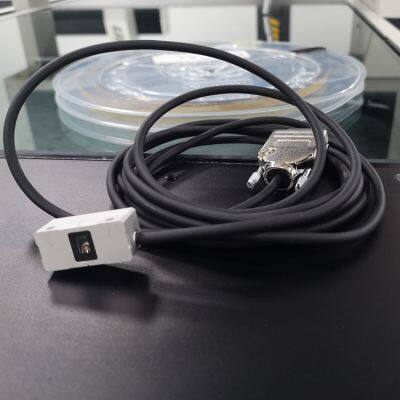

Connector | D-sub 15 Pin Male D-sub 9 Pin Male |
Resolusion | 0.5μm/1μm |
Electronic subdivision error | <150nm |
Maximum read speed | 4.5m/s |
Reference origin | Magnetic sensor on the side of the readhead |
Unidirectional repeatability | 1.5μm in a single direction |

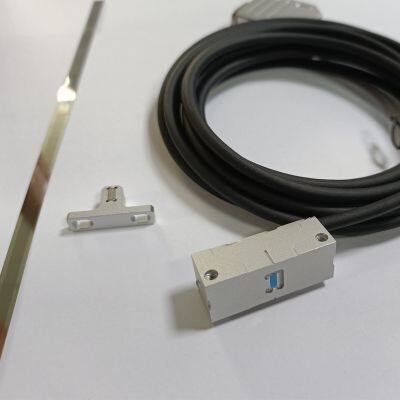

Specifications of steel tapes | |
Dimensions | W 6mm × H 0.1mm |
The thickness of the adhesive | W 5mm × H 0.1mm |
Line-space | 40μm |
Parameters of the cable | |
Outer diameter of the cable | 3.4mm±0.2mm |
Bending times | Bending times 20 million times and bending radius greater than 25mm |
Environmental parameters | |
Storage temperature | -20℃ to 70℃ |
Operating temperature | 0℃ to 70℃ |
Vibration level | 55Hz to2000Hz,Maximum 100m/s² 3 axes |
Protection class | IP40 |
