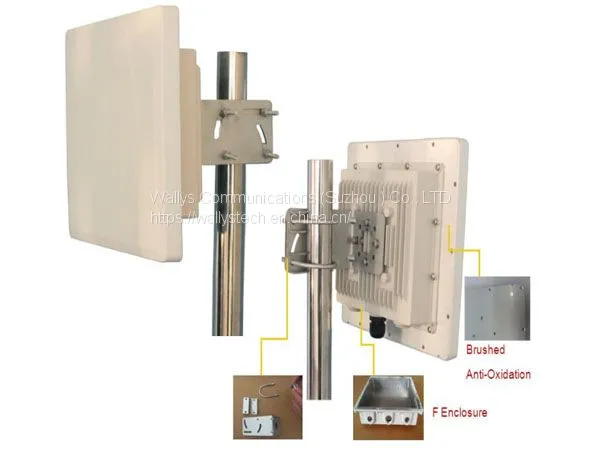

DRC-5159-19D17F Dual Polarization Enclosure Antenna 5GHz broadband Point to Point IP66 UV Protected
Application
●5.1-5.8GHz 802.11a/n WLAN System
●Point to Point Wireless Bridge
●Wide 17° Horizontal Beamwidth
●IP66 Waterproof Level
●UV Protected and Durable ABS Radome
●Stainless L Type Bracket,U-Slot & U-Bolt
Electrical Specifications |
Frequency Range |
5150-5850 MHz |
Gain |
19 dBi |
VSWR |
≤1.5 |
3dB Beam-Width |
17°(H)/18°(E) |
Polarization |
Vertical & Horizontal |
Upper Side Lobes |
>13 dB (V Port) , >10 dB (H Port) |
Front to Back Ratio |
≥30 dB |
Port to Port Isolation |
>35 dB |
Maximum Input Power |
100 Watt |
Impedance |
50 Ω |
Lightning Protection |
DC Grounded |
| Mechanical Specifications |
Connector |
2 × N Female |
Inner Space |
212.6×212.3×38 mm |
Antenna Dimension |
270×270×80 mm |
Weight |
2.5 KG |
Radome Material |
UV Protected ABS |
Enclosure Material |
Aluminium Die Cast |
Mounting Mast Diameter |
Ø40~Ø60 mm |
Operating Temperature |
-40° C to +65° C |
Rated Wind Velocity |
216 Km/h |
| Applications |
Cable Lightning Arrestor RJ45 Package 1pcs/Box 33x31.5x9.5cm 3.0KG
