Die Cut Automatic Machine
Range of Application
This hydraulic press machine is mainly suitable for die cutting single or multiple layers of nonmetal rolled materials by die cutter. It is widly used in many industries, such as:
- Automotive interior
- Abrasives, abrasive paper
- Leather and leathergoods – shoe uppers, wallets, purses, belts
- Clothing – components for hats, ties, collars, shoulder pads
- Cork gaskets and mats
- Foam and sponge
- Footwear components – shoes, insoles, insole socks, uppers, straps
- Rubber – gaskets, seals, washers
- Textiles – sample swatches and pattern books, underwear and outerwear components, hats, ties
- Toys – soft toys, advertising novelties, mini jig-saw puzzles, etc.
Model |
KTD-T250 |
KTD-T250A |
KTD-T250B |
KTD-C500 |
KTD-C500A |
KTD-C500B |
Maximum cutting force |
25T |
25T |
25T |
50T |
50T |
50T |
Working table |
1800*500mm |
2000*500mm |
2200*500mm |
1800*550mm |
2000*550mm |
2200*550mm |
Size of travel head |
500*500mm |
500*500mm |
500*500mm |
550*550mm |
550*550mm |
550*550mm |
Adjustable stroke |
5-150mm |
5-150mm |
5-150mm |
5-150mm |
5-150mm |
5-150mm |
Motor power |
2.2kw |
2.2kw |
2.2kw |
4.0kw |
4.0kw |
4.0kw |
Machine’s dimensions(mm) |
2200*620*2000 |
2400*620*2000 |
2600*620*2000 |
2200*620*2000 |
2400*620*2000 |
2800*620*2000 |
G.W |
2300kg |
2800kg |
3500kg |
3500kg |
4200kg |
5000kg |
Machine Details:
1. Gantry frame structure made of profile steel is adopted, with high intensity and without deformation.
2. The cutting head can automatically move horizontally, with excellent operating visual field and safe operation. If needed, the head can also be designed to rotate.
3. Differential oil way is adopted to allow rapid and convenient cutting.
4. The special design of the hydraulic system, the machine is lubricated automatically during operation. This design can reduce abrasion and ensure machine service life.
5. The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.
6. Quiet, vibration free operation.
7. Different feeding methods, such as clamp feeding, conveyor belt feeding and double side auto feed tables, are available on request.
8. Products of special specifications can be customizable.
Cutting die photos:

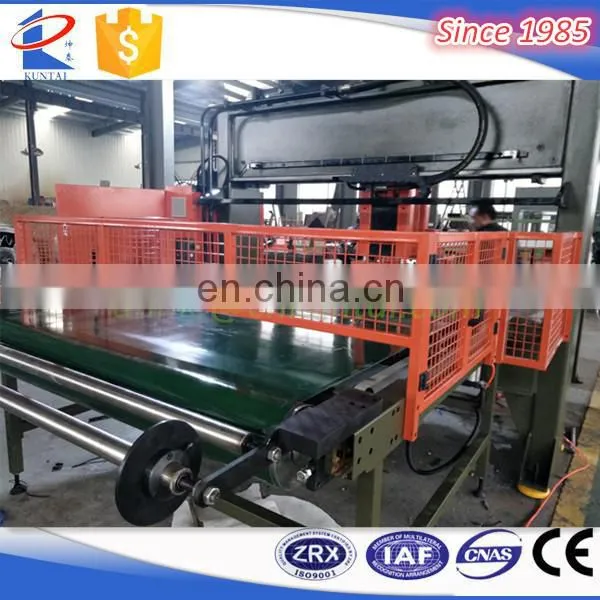

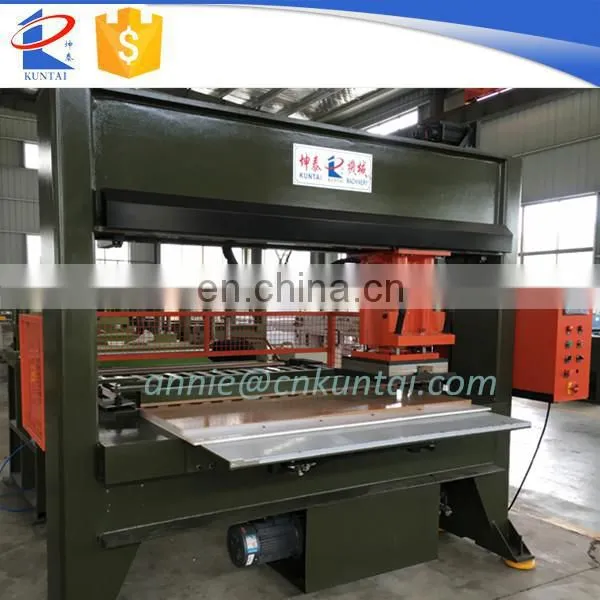

Die Cut Automatic Machine
Inner Package: Protective Film, etc
Outside Package: Standard plywood case
- Machines well packed with protective film and loaded in export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit
1. Are you a trading company or a manufacturer?
We are a manufacturer with strong export capability.
2. Where is your factory?
We are in Yancheng city, three and a half hours' drive away from Shanghai, China.
3. Do you have individual research and development department?
Yes, we have. We believes in technology and market oriented research. Every year, we will work out a number of solutions to actual onsite application problems and develop brand new machines for our customers.
Shoud you have any new ideas about our machines, pls feel free to contact us! We are sure to make your ideas into designs. Our goal is to work together with our customers to solve every onsite problems, to realize better material finishing/processing effect and to be our customers' think tank.
4. How can I trust your quality?
- We have CE and ISO certificates. They enhance quality control throughout the manufacturing of our machines.
- We have professional QCs. For each step of our machine production, there will be a team of QCs responsible for the inspection. Until the item passes all the inspections can it go to the following step.
- At the end of the machine assembling, a series of testings will be conducted. Unless the machine passes all the testings, we will not make delivery.
- We guarantee our machines with one-year warranty. Usually, our customers use our machines for 5 years, 8 years and even 10 years.
- Throughout the lifespan of our machines, the spare parts replacement will be at cost price.
5. How to operate the machine? We have not used such a machine before. We just want to expand our business and start a new line.
Pls do not worry! Almost 50% of our overseas customers were in the same situation when buying first of our machines. We have skillful and experienced follow up service staff who have worked out a whole package of solutions catering to the need of our customers like you. Besides, we have a team of technicians available for overseas machine installing, testing and operation instruction.
