Leather Die Cutting Machine
- 1000 per Month
- T/T Credit Card
- High Tech Fabric, Foam, Leather Receding Head Beam Cutting Press
- High performance automatic plastic packaging materials die cutting machine
- Hydraulic Automatic Rotating Head Die Cutting Press machine for Footwear
- Automatic Sponge Travelling Head Cutting Machine
- Automatic Traveling Head Cutting Machine for sole
- factory sale automatic shoe cutting machine
Product Description
Hydraulic precision abrasive paper cutting machine
Popular Automatic Leather Die Cutting Press Machine
Popular Hydraulic Travelling Head Cutting Press Machine
Leather Die Cutting Machine
EVA Sole Cutting Machine for Slippers
Hydraulic Rotating Travelling Head Cutting Press Machine
Travel Head Die Cut Automatic Machine for Foam, Rubber, Artificial Leather and Fabric
KT-C Hydraulic Rotating Travel Head Leather Die Cutting Machine with or without Auto Feed System
Usage and Characteristics
1.These cutting machines are suitable for continuous cutting operation of nonmetal materials. The finished materials are widely used for such products as shoes, sports materials, car interior materials and medical supplies.
2. Servo motor makes accurate feeding possible and controls horizontal movement and rotation of the cutting head. Multilayers of materials can be clamped by the cylinder for stepping feeding. Other feeding methods are also available on request.
3. The feeding length can be easily set by the human-computer interface (Optional).
4. Special hydraulic system makes low noise possible and saves oil.
5. High quality and imported oil pump and other parts are available on request.
6. As the machine is controlled by microcomputer with high automation degree, only one worker is required for the whole machine operation, so that the production efficiency is 3-5 times that of normal cutting machines and the power can be saved by about 2/3.
7. Cutting force of the die cutting machine depends on customer’s application and requirements.
Reference Technical Data (Customizable)
Model |
KT-C Hydraulic Travel Head Die Cutting Machine |
|||||
Maximum Cutting Force (ton) |
25 |
25 |
25 |
50 |
50 |
50 |
Working Table (mm) |
1600*500 |
1800*500 |
2000*500 |
1600*500 |
1800*500 |
2000*500 |
Travel Head Size (mm) |
500*500 |
500*500 |
500*500 |
550*550 |
550*550 |
550*550 |
Adjustable Stroke (mm) |
5-150 |
5-150 |
5-150 |
5-150 |
5-150 |
5-150 |
Motor Power (kw) |
2.2 |
2.2 |
2.2 |
4.0 |
4.0 |
4.0 |
Estimated Machine Dimension (mm) |
2200*720*2000 |
2400*720*2000 |
2600*720*2000 |
2200*720*2000 |
2400*720*2000 |
2600*720*2000 |
Estimated G.W (kg) |
1800 |
2100 |
3000 |
3000 |
3800 |
5000 |
Machine Details

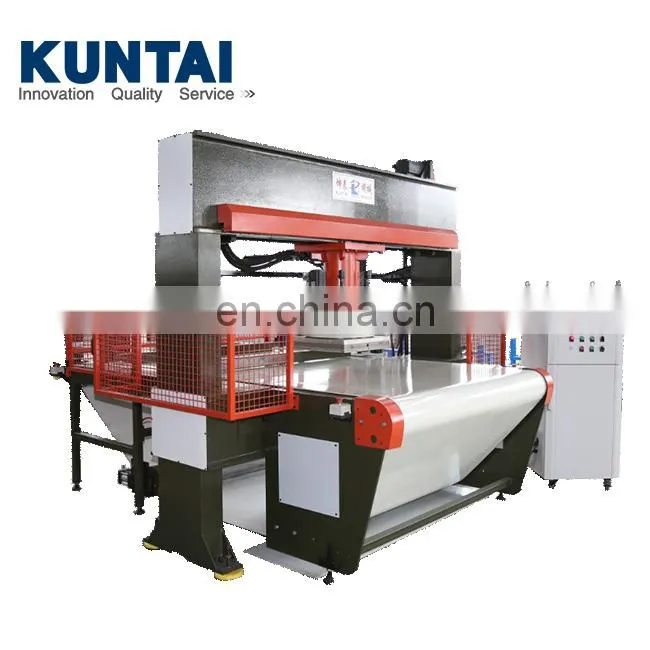

Popular Automatic Leather Die Cutting Press Machine

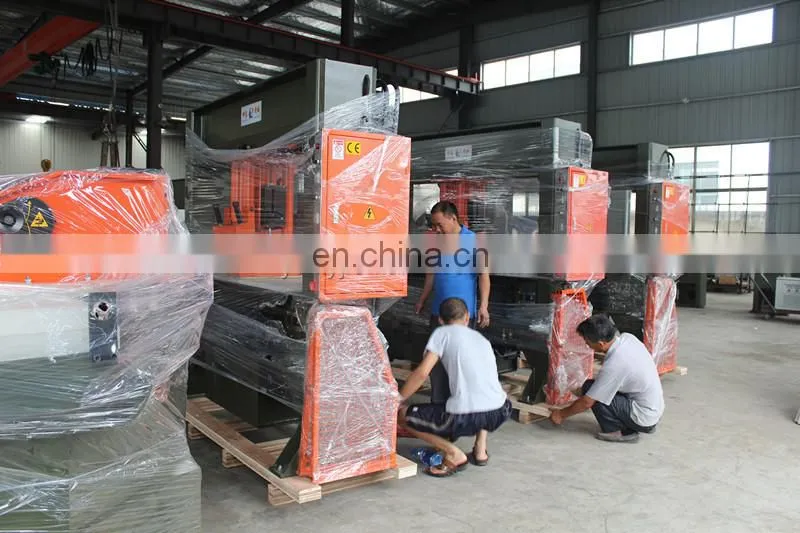

Inner Package: Protective Film, etc
Outside Package: Plywood Case
- Machines well packed with protective film and loaded in plywood case or export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit
Engineers Overseas Service Available
Since 1985, we have been manufacturing various cutting machines for different industries, such as packaging industry, footwear industry, garment industry, etc. Strong engineering power and satisfactory aftersale service consolidates our leading place in both domestic market and overseas market.
FAQ
Since 1985, we have been doing one thing --- to be our customers' friend!
1. Are you a trading company or a manufacturer?
We are a manufacturer with strong export capability.
2. Where is your factory?
We are in Yancheng city, one and a half hours' fast train away from Shanghai, China.
3. Do you have individual research and development department?
Yes, we have. We believes in technology and market oriented research. Every year, we will work out a number of solutions to actual onsite application problems and develop brand new machines for our customers.
Shoud you have any new ideas about our machines, pls feel free to contact us! We are sure to make your ideas into designs. Our goal is to work together with our customers to solve every onsite problems, to realize better material finishing/processing effect and to be our customers' think tank.
4. How can I trust your quality?
- We have CE and ISO certificates. They enhance quality control throughout the manufacturing of our machines.
- We have professional QCs. For each step of our machine production, there will be a team of QCs responsible for the inspection. Until the item passes all the inspections can it go to the following step.
- At the end of the machine assembling, a series of testings will be conducted. Unless the machine passes all the testings, we will not make delivery.
- We guarantee our machines with one-year warranty. Usually, our customers use our machines for 5 years, 8 years and even 10 years.
- Throughout the lifespan of our machines, the spare parts replacement will be at cost price.
5. How to operate the machine? We have not used such a machine before. We just want to expand our business and start a new line.
Pls do not worry! Almost 50% of our overseas customers were in the same situation when buying first of our machines. We have skillful and experienced follow up service staff who have worked out a whole package of solutions catering to the need of our customers like you. Besides, we have a team of technicians available for overseas machine installing, testing and operation instruction.
