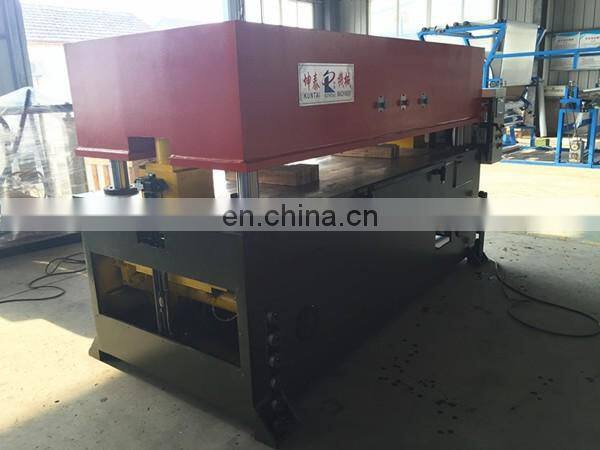

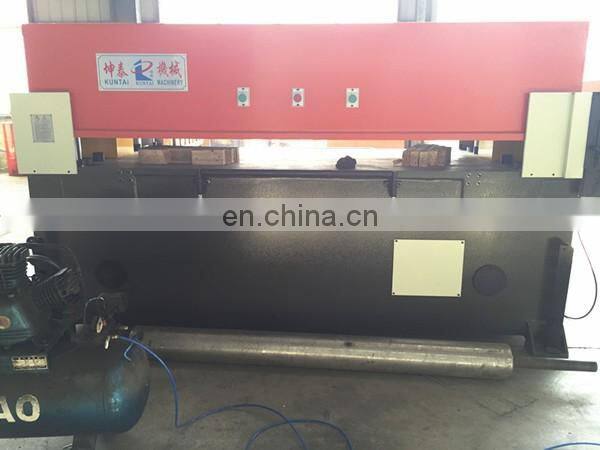

Help CenterKuntai Factory XCLP3-C Precision Hydraulic 4-column Jigsaw Puzzle Cutting Machine
Related Products
-
Foam Cutting Machine for Gasket, Scouring Washing PadNegotiableMOQ: 1 -
Travelling Head Cutting Press Shoe Machine for SaleNegotiableMOQ: 1
-
Gloves Manual Die Cutting MachineNegotiableMOQ: 1
-
Shoe Sole Cutting MachineNegotiableMOQ: 1
-
Stable and High Quality Manual Gasket Cutting MachineNegotiableMOQ: 1
Cutting Machine Video:
Automatic Cutting Machine with Conveyor Belt https://youtu.be/3T4ibfVZbgc
Double Side Auto Feed Die Cutting Machine for Packaging and Car Trim Materials
https://youtu.be/y5DwYZcjb9A
Rotating Travel Head Hydraulic Cutting Machine https://youtu.be/X7WvvZkXGzg
Travel Head Die Cutting Machine with Conveyor Belt and Dust Collector
https://youtu.be/OGOthrLxo7c
Swing arm die cutting machine for leather shoes, gaskets and EVA
https://youtu.be/SQ9-2wfPJKs
Hydraulic Automatic Cutting Machine with Conveyor Belt for Car Trim
https://youtu.be/auqAAwy9sN8
Receding Head Cutting Machine for Carpet https://youtu.be/X3uKlKeBFPI
1. This type of cutting machine provides workers with simple, prompt and precise operation.
2. The machine body adopts double oil cylinder, double-crank connecting rod balancing and four-column precise guiding mechanism.
3. High speed and low energy consumption.
4. The central oil supply automatic lubricating system prolongs the machine service life and guarantees cutting precision.
5. Cutting board micro-movement device can be installed to reduce wear.
6. Die cutter pneumatic clamp device can be installed to make the replacement of die cutter convenient and prompt.
7. Various automatic materials feeding systems, such as double or single side sliding board or conveyor belt feeding system and so on can be installed on the machine as per customers' request.
8. Imported pump, valve, sealings, press and cutting switches and other accessories can be available on request.

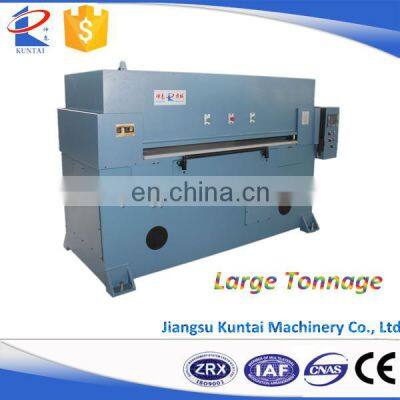

Large Tonnage Hydraulic Cutting Machine

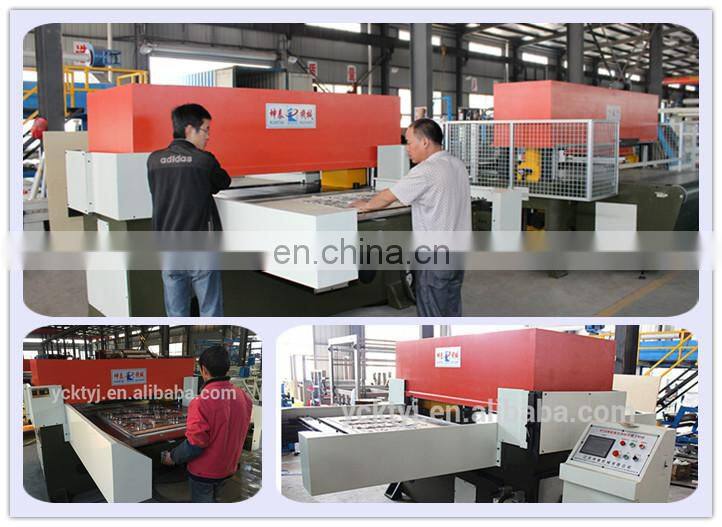

Hydraulic Cutting Machine with Auto Double Side Sliding Feeding Boards

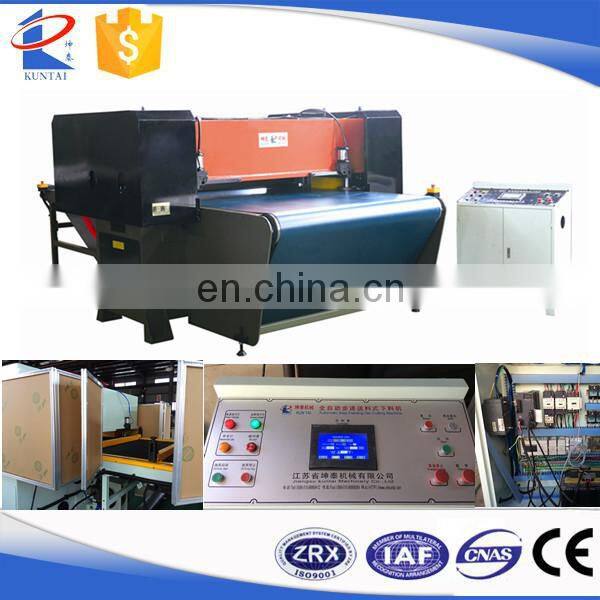

Automatic Hydraulic Cutting Machine with Conveyor Belt
Main Technical Specs:
Model |
XCLP3-C |
||||||
Maximum cutting force |
30T |
35T |
40T |
50T |
60T |
80T |
100T |
|
Distance between upper
pressing board
and worktable
|
50-200mm |
50-200mm |
50-200mm |
50-200mm |
50-200mm |
50-200mm |
50-200mm |
Working table |
1600*500mm |
1600*610mm |
1250*700mm
1600*700mm
|
1250*800mm
1600*800mm
|
1400*900mm
1600*900mm
|
1400*900mm
1600*900mm
|
1600*900mm |
Main motor power |
1.5kw |
2.2kw |
3kw |
4kw |
5.5kw |
7.5kw |
7.5kw |
Estimated machine weight |
1600kg |
2300kg |
1600kg |
3200kg |
4200kg |
5800kg |
7000kg |

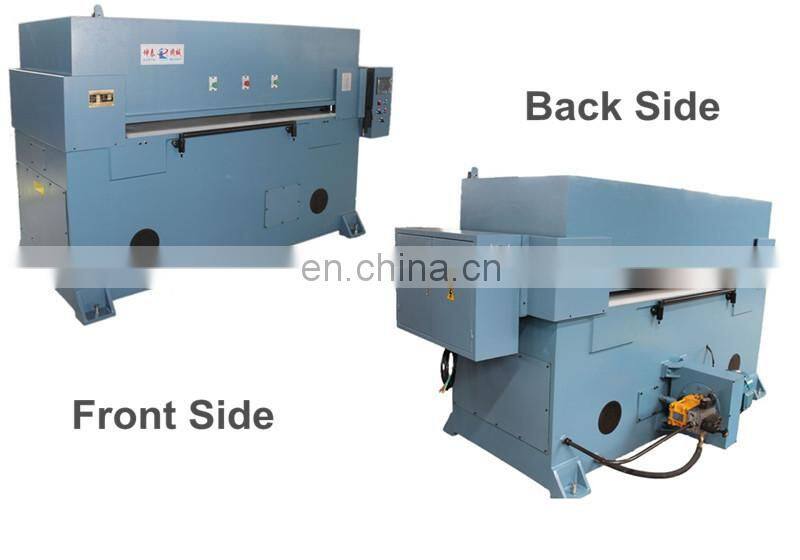

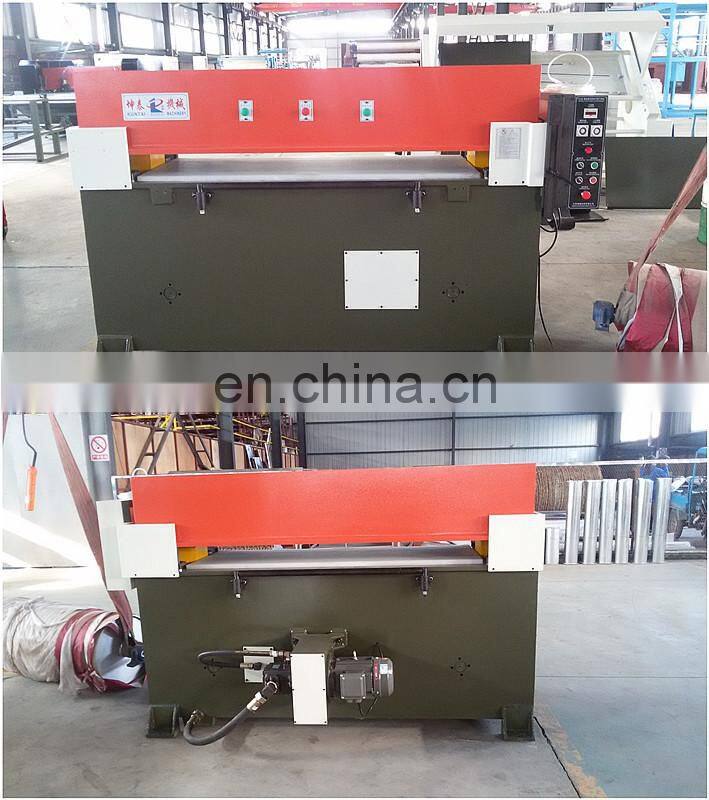

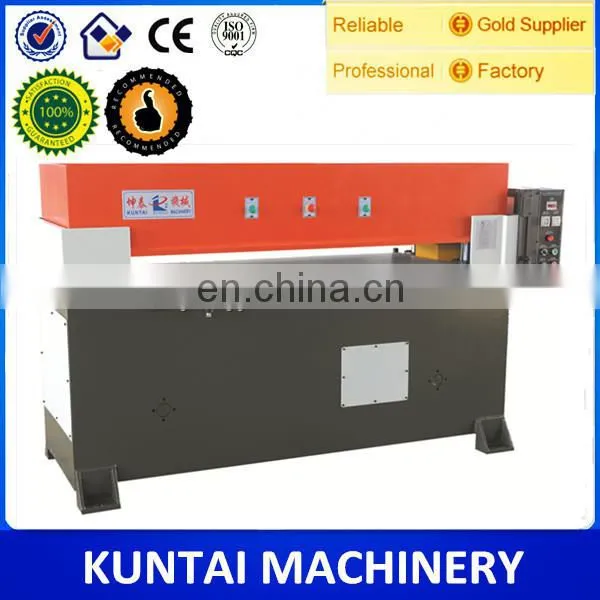

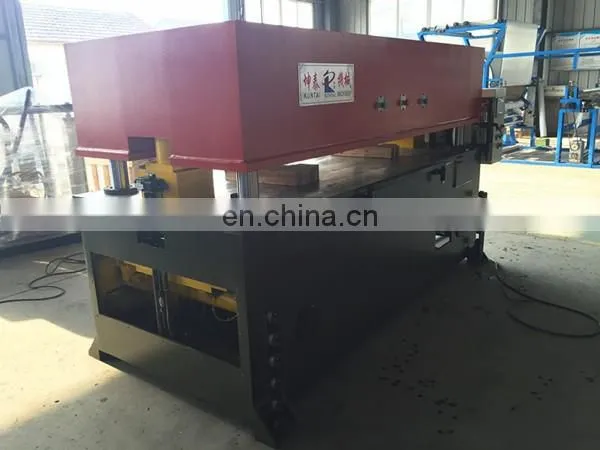

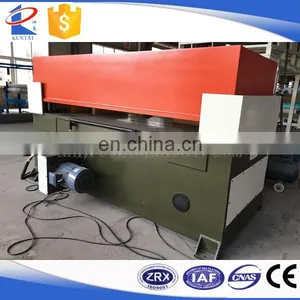

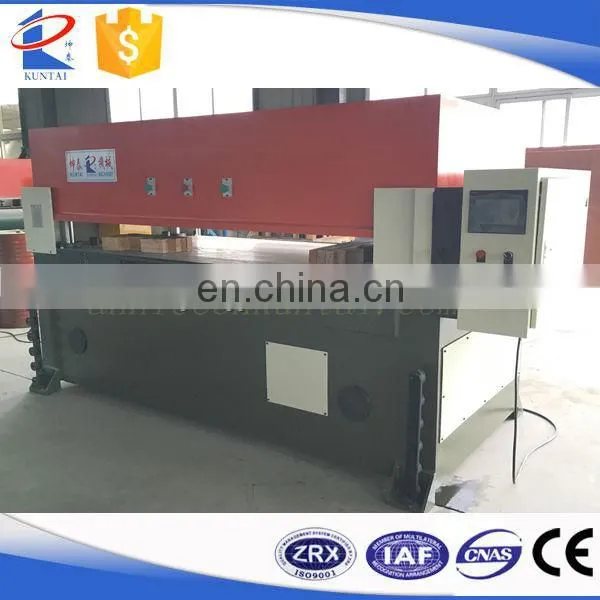

XCLP3-C Precision Hydraulic 4-column Die Cutting Machine for Leather, EVA and Rubber
Cutting Machine

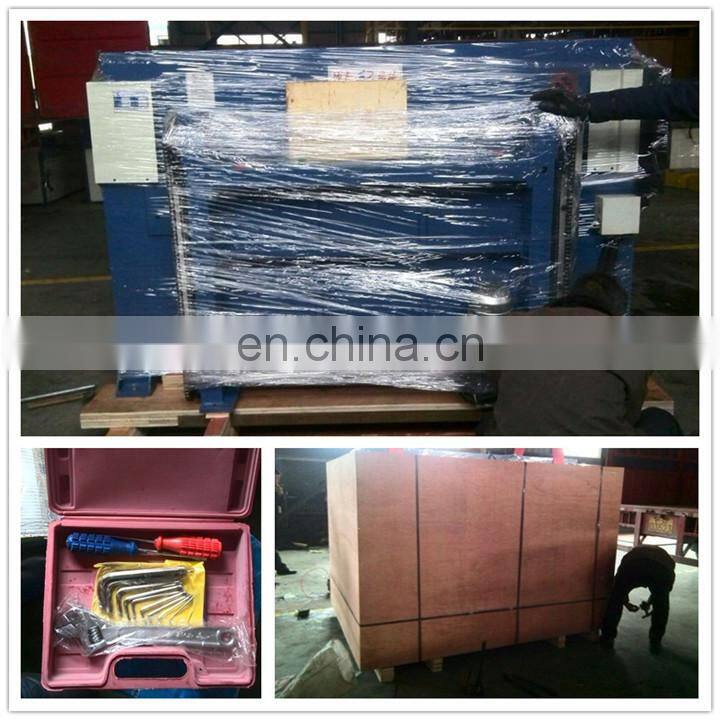

Inner Package: Protective Film, etc
Outside Package: Plywood Case

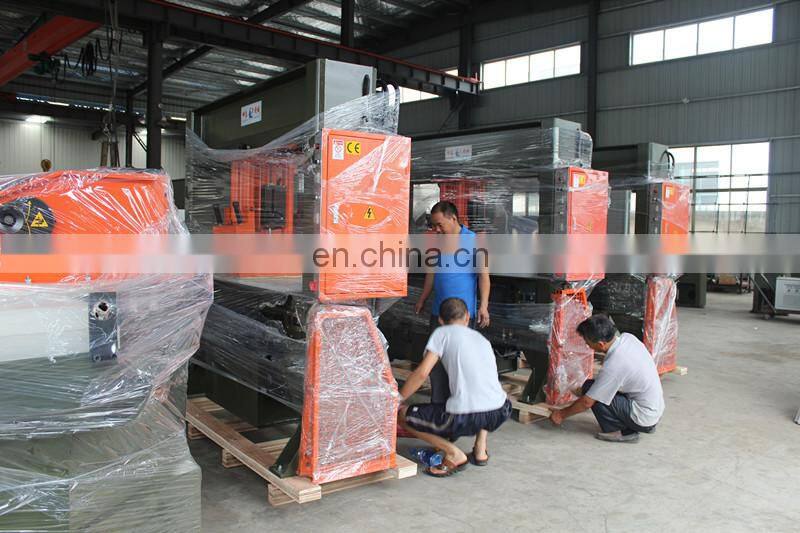

- Machines well packed with protective film and loaded in plywood case or export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit
XCLP3-C Precision Hydraulic 4-column Die Cutting Machine for Leather, EVA and Rubber
XCLP3-C Precision Hydraulic 4-column Die Cutting Machine for Leather, EVA and Rubber
CE & ISO Certificates:
Die Cutting machines of other types or sizes are available on request!
