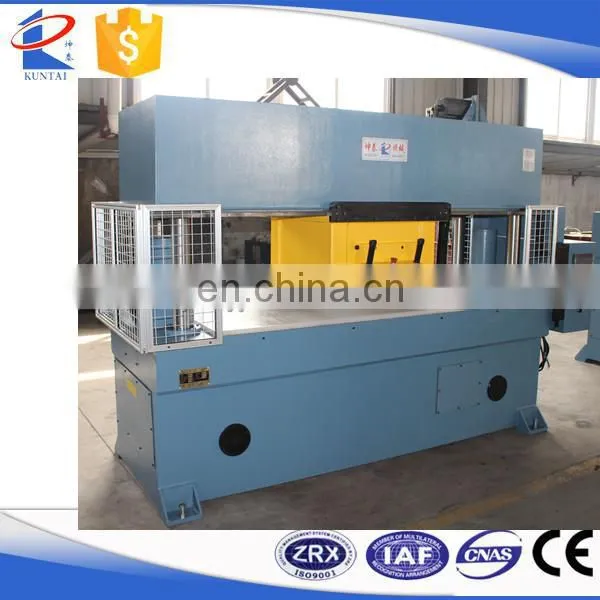

High Tech Shoes Cutting Machine
Cutting Shoe Machine for Sale
Range of Application
This hydraulic die cutting machine is mainly suitable for die cutting single or multiple layers of nonmetal rolled materials by die cutter. It is widly used in many industries, such as:
- Automotive interior
- Sheet material industry supplies
- Floor mats
- Abrasives, abrasive paper/sand paper...
- Leather and leathergoods – shoe uppers, wallets, purses, belts
- Lampshades – fabric or plastic, with or without cut outs
- Clothing – components for hats, ties, collars, shoulder pads
- Cork gaskets and mats
- Filters for machinery, breathing apparatus and the medical industry
- Foam and sponge – gaskets, packaging, consumer products
- Footwear components – shoes, insoles, insole socks, uppers, straps
- Plastics – PVC binders, lampshades, stationery products, gifts, novelties, gaskets
- Rubber – gaskets, seals, washers
- Textiles – sample swatches and pattern books, underwear and outerwear components, hats, ties
- Toys – soft toys, advertising novelties, mini jig-saw puzzles, etc.
- Latex kids
Features of Cutting Machine
1. Gantry frame structure made of profile steel is adopted, with high intensity and without deformation.
2. The cutting head can automatically move horizontally, with excellent operating visual field and safe operation.
3. Using the differential oil way,so that the cutting is rapid and convenient.
4. This hydraulic moving head die cutting machine is equipped with automatic self-lubricating system,to allow the low consumption and low wear
5. The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.
6. The Latex kids hydraulic moving head die cutting machine has automatic feeding system, it can save a lot of working time and labor.
7. We will manufacture the Latex kids hydraulic traveling head die cutting machine on your request.
Option of Hydraulic Cutting Machine
- Rotary head
- Machine Color
- Servo Motor
- Imported oil pump
- Roll Holding Gantries
- Bed Size
- Power requirements
Technical Information(Customizable)--Hydraulic Die Cutting Machine
| KT-C250 | KT-C250B | KT-C250C | KT-C500 | KT-C500 B | KT-C500C | |
|---|---|---|---|---|---|---|
| Cutting Force | 25 tons | 25 tons | 50 tons | 50 tons |
50 tons
| 50 tons |
| Working Table(mm) | 1600*500 | 1800*500 | 2000*500 | 1600*500 | 1800*500 | 2000*500 |
| Stroke(mm) | 150mm | 150mm | 150mm | 150mm | 150mm | 150mm |
| Travel Head Size(mm) |
500*500 | 500*500 | 500*500 | 500*500 | 500*500 | 500*500 |
| Motor Power | 2.2kw | 2.2kw | 2.2kw | 4.0kw | 4.0kw | 4.0kw |
| Approx. Overall Dimensions (WxDxH) | 2200*720*2000 | 2400*720*2000 | 2600*720*2000 | 2200*720*2000 | 2400*720*2000 | 2600*720*2000 |
| G.W | 1800 kg | 2100 kg | 3000 kg | 3000 kg | 3800 kg | 5000 kg |

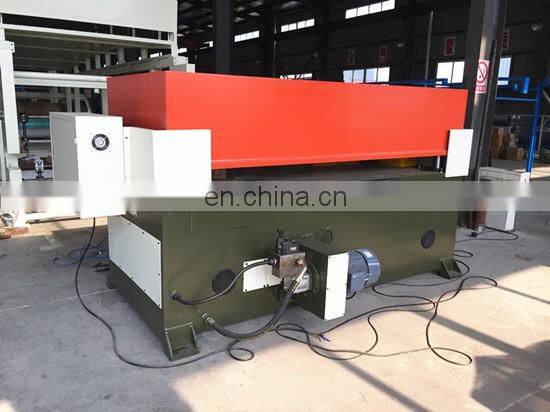

Hydraulic Die Cutting Machine Details

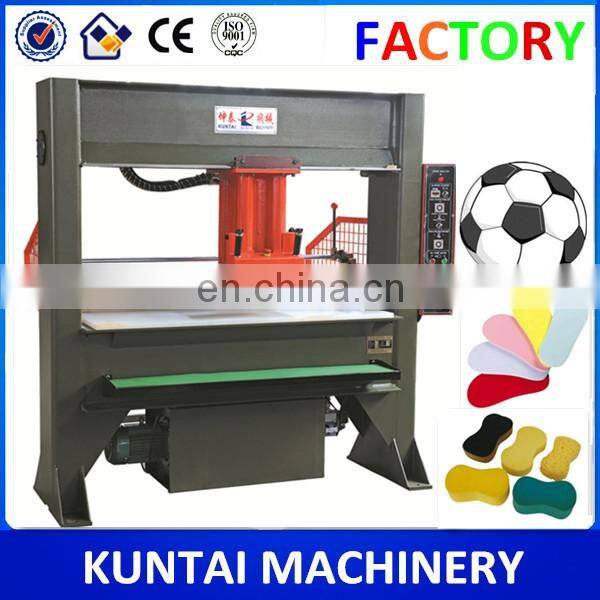

Cutting Machine

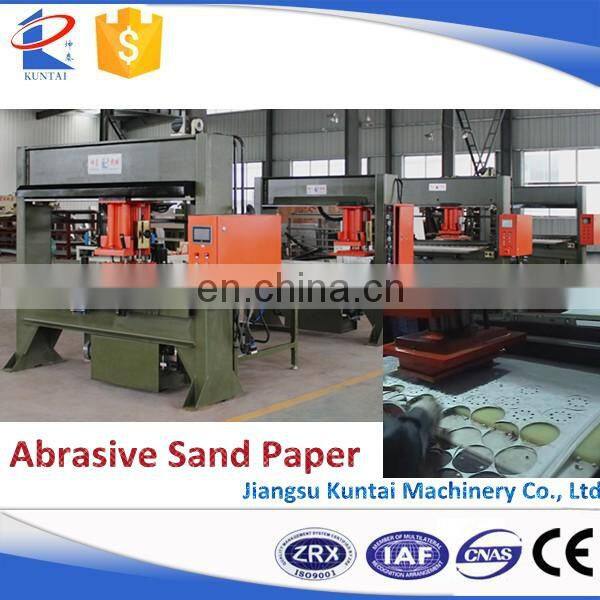

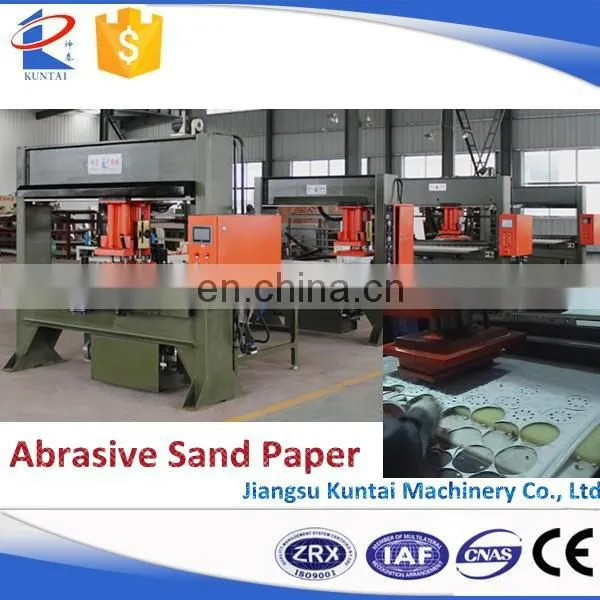

sand paper automatic cutting machine

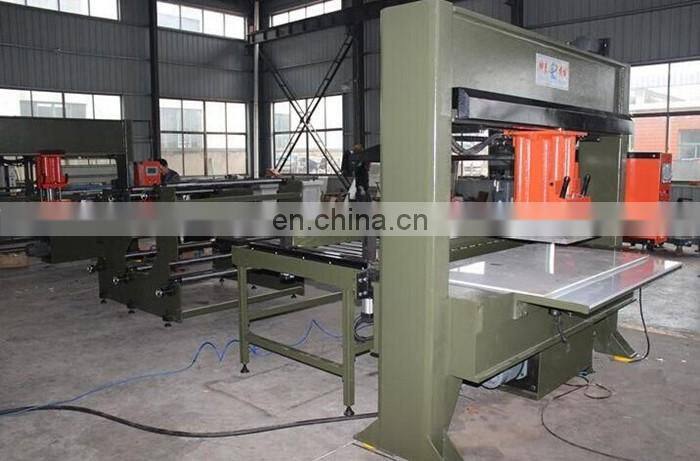

Travel Head Die Cutting Machine for Footwear Industry

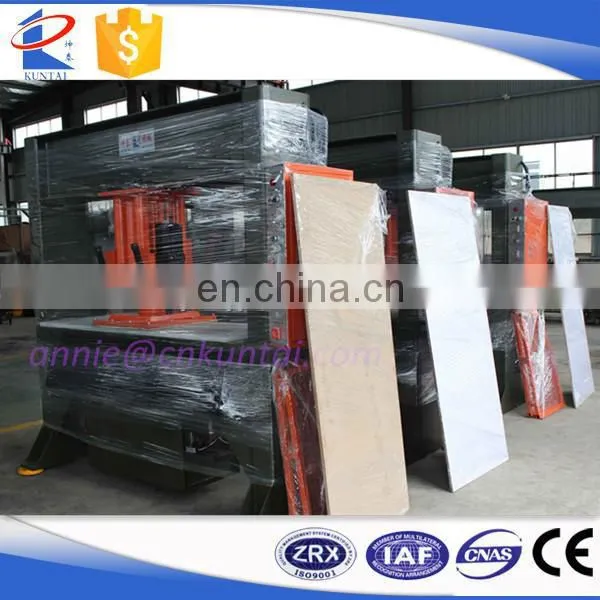

Packaging & Shipping of Cutting Machine:
Inner Package: Protective Film, etc
Outside Package: Plywood Case
- Cutting machines well packed with protective film and loaded in plywood case or export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit
Services
CE & ISO Certificates:
