Kuntai Automatic Plastic/Foam/Paper Hydraulic Cutting Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2016
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Swing Arm Leather Cutting Machine XCLB3NegotiableMOQ: 1 -
Automatic Feeding Die Cutting Machine for Foam, Sandpaper, Fabric, LeatherNegotiableMOQ: 1
-
Leather Die Cutting MachineNegotiableMOQ: 1
-
High Tech Fabric, Foam, Leather Receding Head Beam Cutting PressNegotiableMOQ: 1
-
High Performance Automatic Plastic Packaging Materials Die Cutting MachineNegotiableMOQ: 1
XCLP3 Automatic Plastic/Foam/Paper Hydraulic Cutting Machine
Double Side Automatic Hydraulic Cutting Machine
Product Description
Watch on youtube:
/watch?v=wMJfuyOaYnI
Usage and characteristics
1. The Plastic/Foam/Paper cutting machine is mainly suitable for cutting various nonmetal materials,such industries as sponge, EVA foam, plastics packing, paper, disposable blister or foam packaging,rubber and prining etc.
2. PLC contrl systerm,easy to operate.
3. Saving labour.Only need two people to operate it.
4. Small motor,small oil pump.Save electric and oil .Equipped with lubricating system to lessen wear and prolong service life.
5. 24V low power special control system.
6. Lower limit of stroke is controlled by a time-lapse circuit with high precision, so it can make high-quality products.
7. Different height products can be manufactured at same time.
8. Products of special specifications can be customized.
Main Technical Data(Customizable)
| Model | XCLP3-400 | XCLP3-500 | XCLP3-600 | XCLP3-800 | XCLP3-1000 |
| Cutting Force | 40T | 50T | 60T | 80T | 100T |
| Tension Distance(mm) | 50-200 | 50-200 | 50-200 | 50-200 | 50-200 |
| Cutting Area(mm) | 1400*610 | 1400*800 | 1400*900 | 1400*900 | 1400*900 |
| Main Motor Power(kw) | 3 | 4 | 5.5 | 7.5 | 7.5 |
| G.W(kg) | 2500 | 4000 | 6000 | 7300 | 9000 |
Machine Advantage:
| 1. Controlled by PLC, electric box, human-computer interface, easy to operation. |
| 2. The main machine adopts double oil cylinder, double-crank connecting rod balance, four-columns, which can guarantee the cutting depth at every cutting position is the same. |
| 3. The pressing board carries out slow cutting when it presses down to contact the die cutter, which can make that there is no size error between the uppermost layer and lowmost layer of cut material. |
| 4. Single-side or double side auto feeding system for choosing, which can improve the producting capacity. |
| 5. Die cutter pueumatic clamp device can be allocated to make the replacement of die cutter convenient and prompt. |

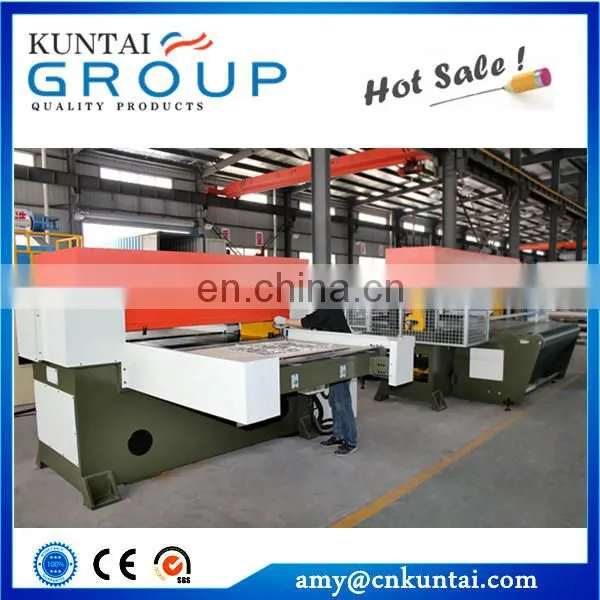

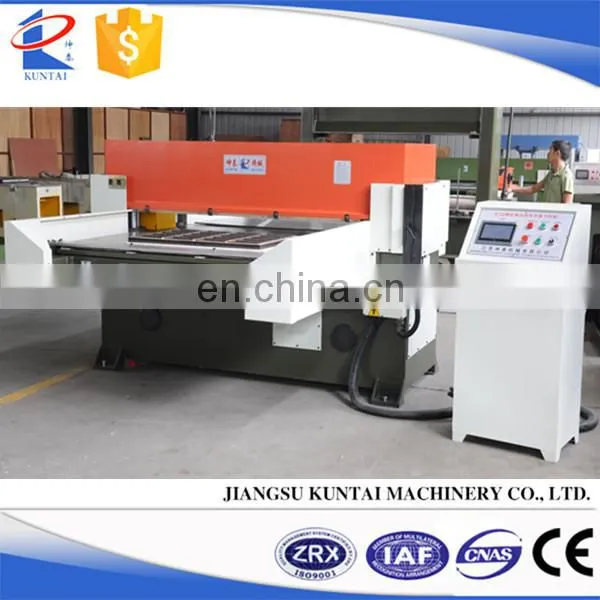

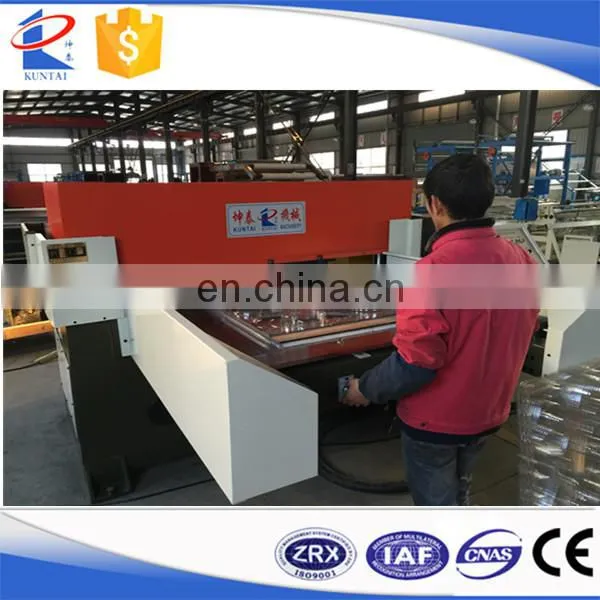

Machine Pictures

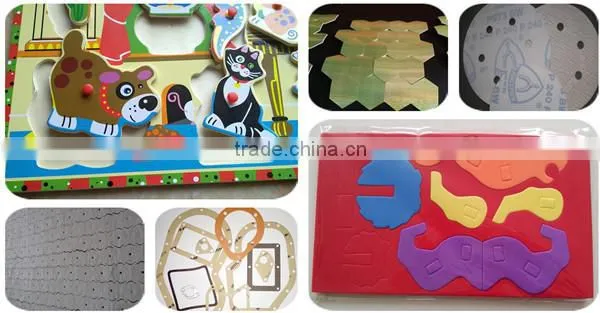

Application For Cutting Machine:
Customer visiting & Exhibition

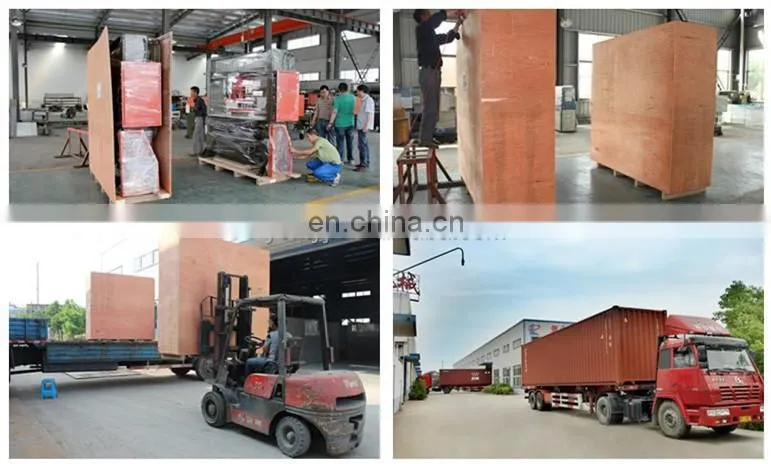

Packaging & Shipping
Inner Package: Protective Film, etc
Outside Package: Plywood Case
- Machines well packed with protective film and loaded in plywood case or export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit

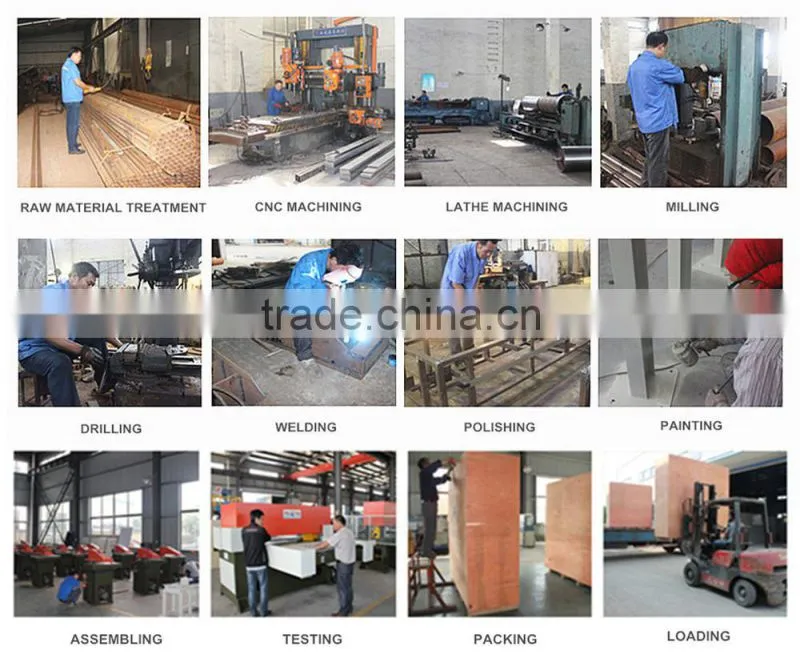

Our Services

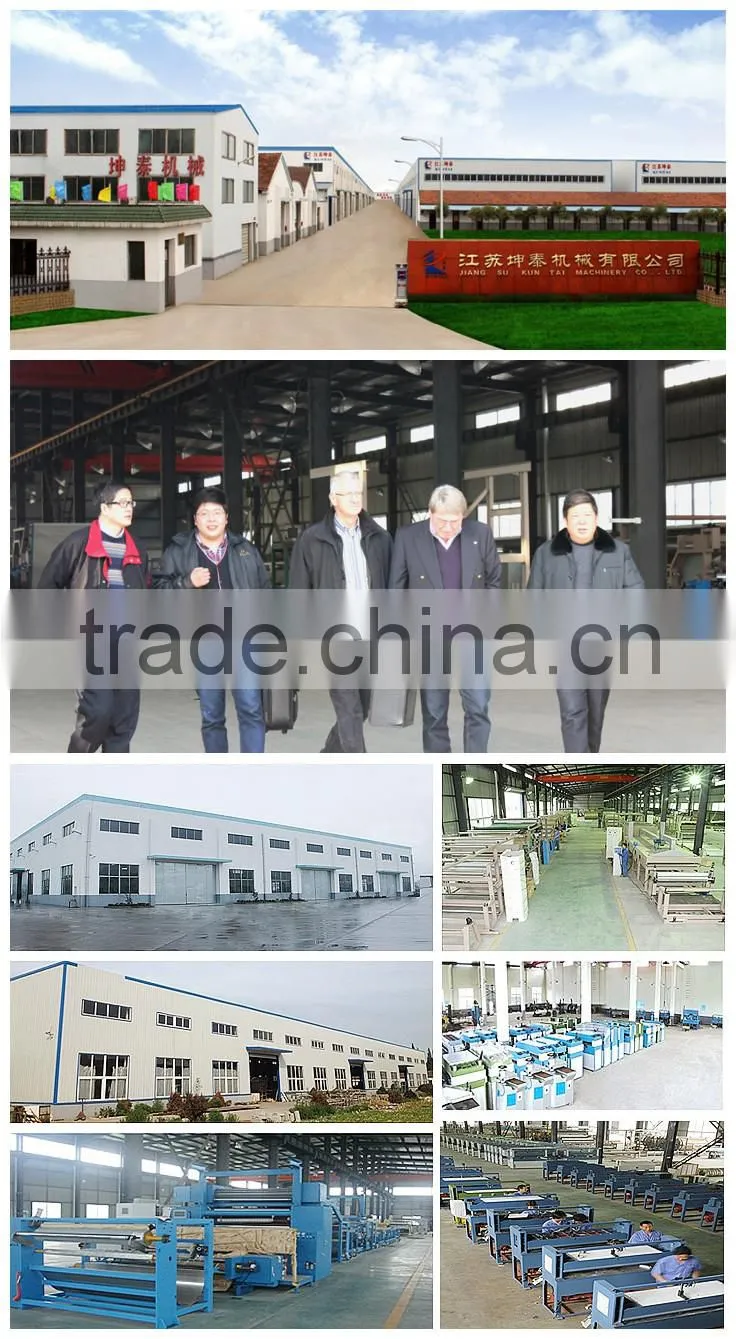

Company Information
