Product Description

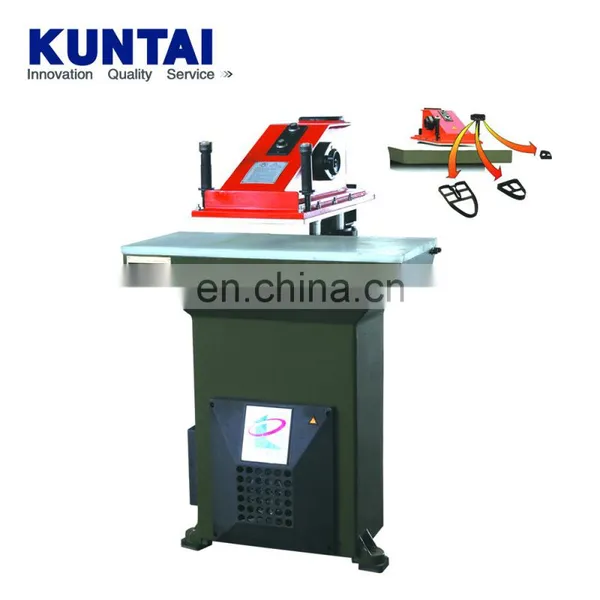

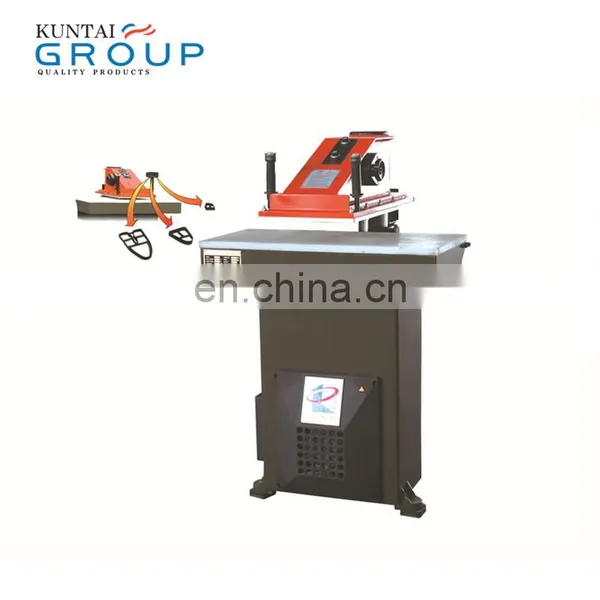

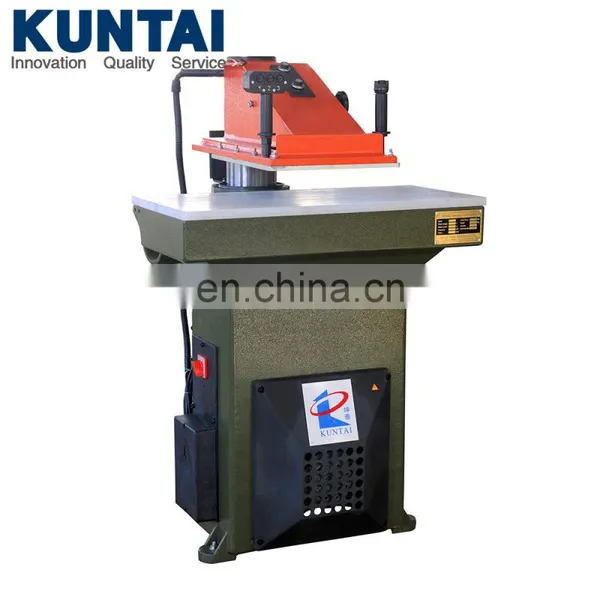

Hydraulic Swing Arm leather Cutting Machine( Shoe making machine)
1. Use and characteristics
- XCLB3 Hydraulic Swing Arm Leather Cutting Press is mainly suitable for cutting materials such as leather,plastic,paper-board,fabric,chemical fibre,toy,soft wood pieces ,etc.
- Higher cutting speed with lower energy consumption..
- Quicker setting of daylight.
- Equipped with lubricating system to lessen wear and prolong service life.
- No adjustment is needed when the height of die cutter is changed.
- Lower limit of stroke is controlled by a time-lapse circuit with high precision, so it can make high-quality products.
- Higher saving in leather, time and pads.
- Full safety for operator, higher reliability.
- Products of special specifications can be customized.
2. Main Technical Data(Customizable)
Model | XCLB3-220 | XCLB3-270 |
Cutting Force | 22T | 27T |
Sway Arm Width | 370mm | 480mm |
Table Area | 900X420mm | 1000X 500mm |
Stroke speed | 0.10m/s | 0.10m/s |
Cutting travel | 90 mm | 90 mm |
main motor power | 1.1kw | 1.5kw |
3. Machine Details
Cutting Machine
Inner Package: Protective Film, etc
Outside Package: Plywood Case
- Machines well packed with protective film and loaded in plywood case or export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit
CE & ISO Certificates:
