KT-C Automatic Travel Head Cutting Machine
Hydraulic Travel Head Cutting Machine for Shoe upper, shoe insole
Range of Application
This travel head Cutting Machine is mainly suitable for die cutting single or multiple layers of nonmetal rolled materials by die cutter. It is widly used in many industries, such as:
- Automotive interior
- Abrasives, abrasive paper
- Leather and leathergoods – shoe uppers, wallets, purses, belts
- Clothing – components for hats, ties, collars, shoulder pads
- Cork gaskets and mats
- Foam and sponge
- Footwear components – shoes, insoles, insole socks, uppers, straps
- Rubber – gaskets, seals, washers
- Textiles – sample swatches and pattern books, underwear and outerwear components, hats, ties
-
Toys – soft toys, advertising novelties, mini jig-saw puzzles, etc.
Features of Travel Head Cutting Machine
1.These cuttingpress machines are suitable for continuous cutting operation of nonmetal materials. The finished materials are widely used for such products as abrasive, abrasive paper, shoes, sports materials, car interior materials and medical supplies.

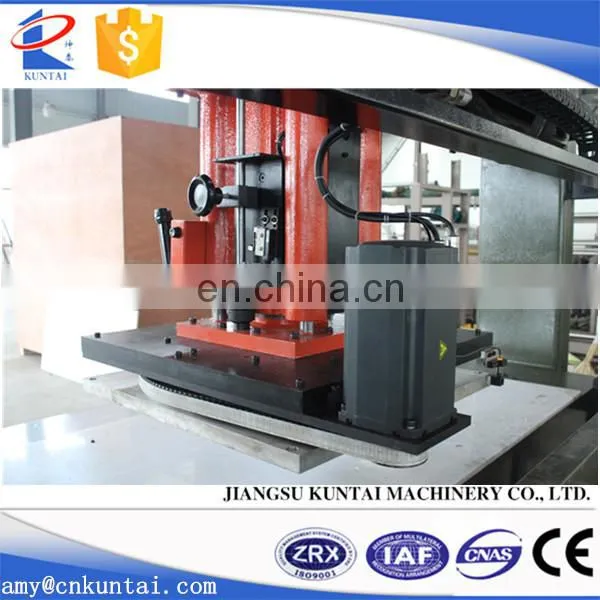

2. Servo motor makes accurate feeding possible and controls horizontal movement and rotation of the cutting head. Multilayers of materials can be clamped by the cylinder for stepping feeding. Other feeding methods are also available on request.
3. The distance of cutting head and feeding length can be accurately set, which has solved the problem of inaccurate feeding and layering length of multilayer materials.
4. The die cutting machine has various working modes such as inching, manual and automatic etc. The workers need only to pick up the products, with labor intensity reduced and work efficiency enhanced.
5. Special hydraulic system makes low noise possible and saves oil. High quality and imported oil pump and other parts are available on request.

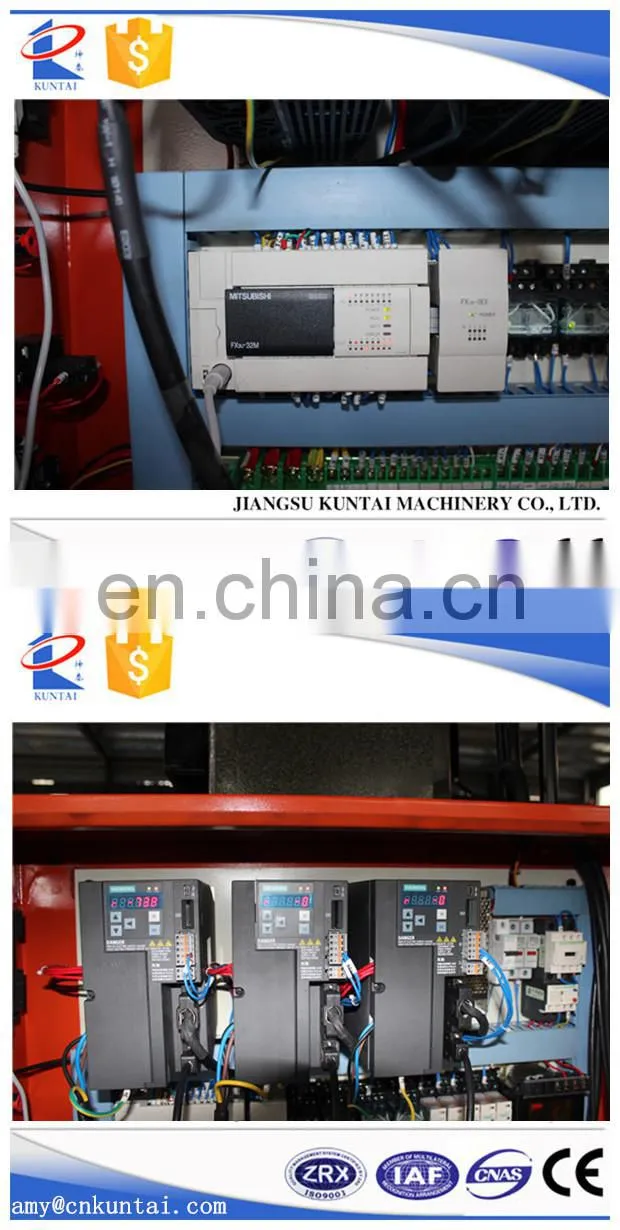

6. As the machine is controlled by.PLC with high automation degree, only one worker is required for the whole machine,so that the production efficiency can be enhanced for 3-5 times and the power can be almost 1/3 saved.
7. Cutting board micro-movement device is adopted to prolong the service life of the cutting board.
8. Travel Head Cutting Machine of special specifications can be customized.
Reference Technical Data (Customizable)
Model |
KT-C |
|||||
Maximum Cutting Force (ton) |
25 |
25 |
25 |
50 |
50 |
50 |
Working Table (mm) |
1800*500 |
2000*500 |
2200*500 |
1800*550 |
2000*550 |
2200*550 |
Travel Head Size (mm) |
500*500 |
500*500 |
500*500 |
550*550 |
550*550 |
550*550 |
Adjustable Stroke (mm) |
5-150 |
5-150 |
5-150 |
5-150 |
5-150 |
5-150 |
Motor Power (kw) |
2.2 |
2.2 |
2.2 |
4.0 |
4.0 |
4.0 |
Estimated Machine Dimension (mm) |
2200*620*2000 |
2400*620*2000 |
2600*620*2000 |
2200*620*2000 |
2400*620*2000 |
2600*620*2000 |
Estimated G.W (kg) |
2300 |
2800 |
3500 |
3500 |
4200 |
5000 |
Option
- Rotary head
- Machine Color
- Servo Motor
- Imported oil pump
- Roll Holding Gantries
- Bed Size

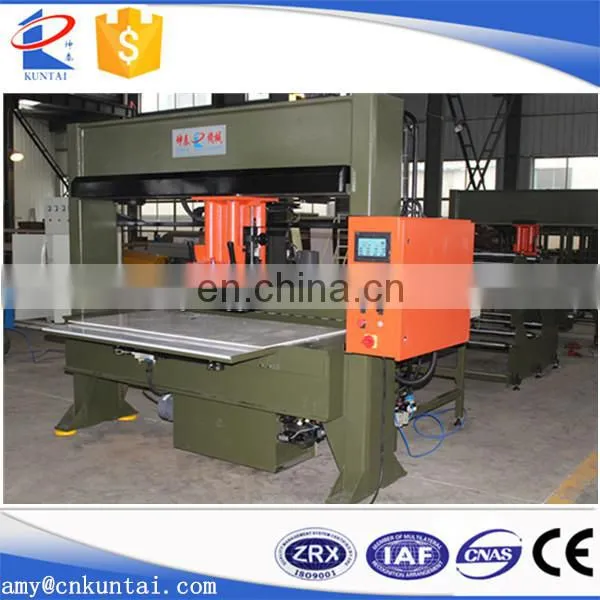

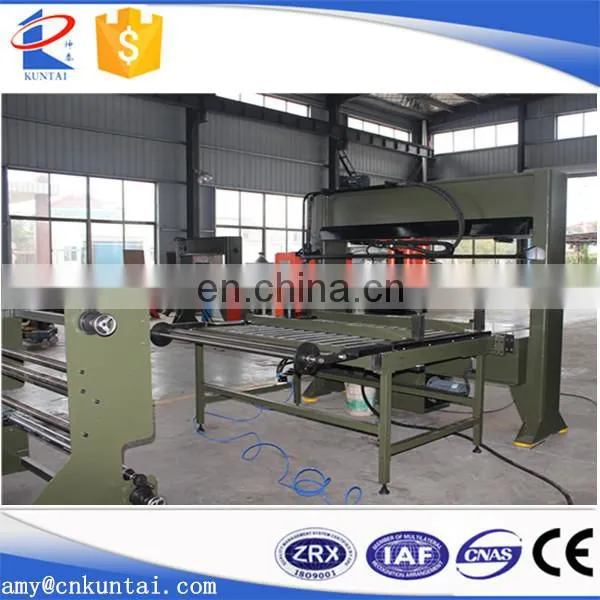

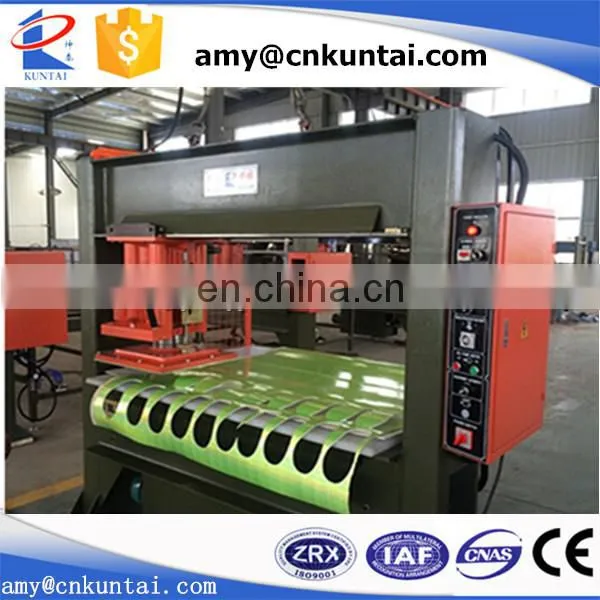

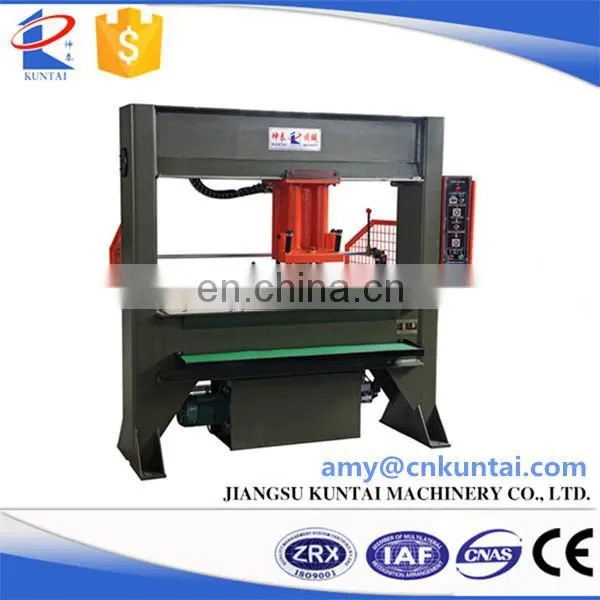

Travel Head Cutting Press Machine Photos:
Cutting Die:
Samples:

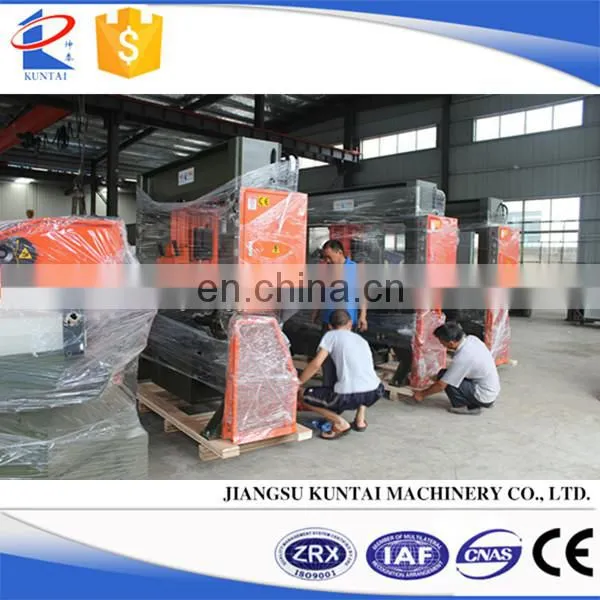

Packaging & Shipping of Shoe Making Machine:
Inner Package: Protective Film, etc
Outside Package: Plywood Case
- Shoe making machines well packed with protective film and loaded in plywood case or export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit
Services
The Factory View
CE & ISO Certificates:
Contact Us:
