Y-1 Y-8 Cable Magnetic Particle Yoke Flaw Detector
- T/T Credit Card
You May Like
Product Description

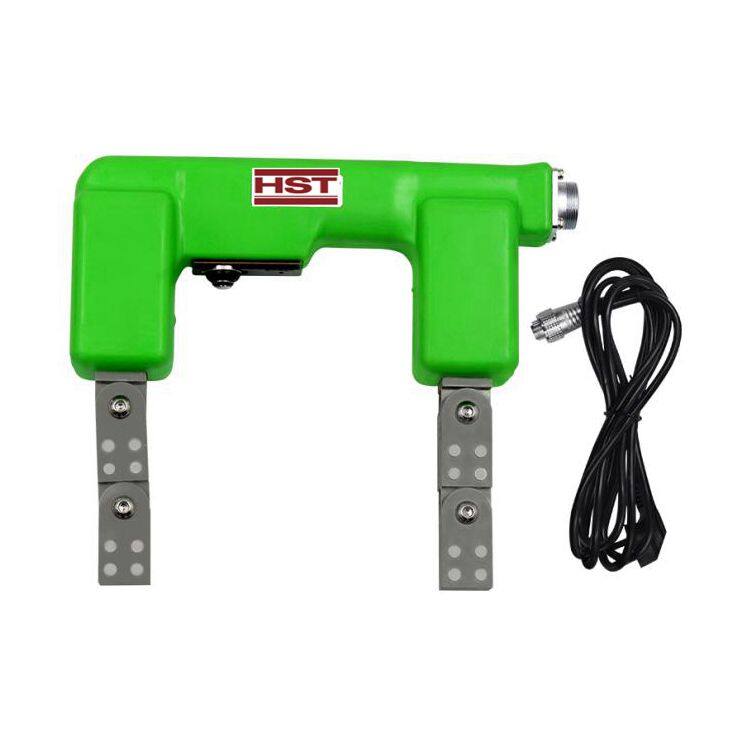

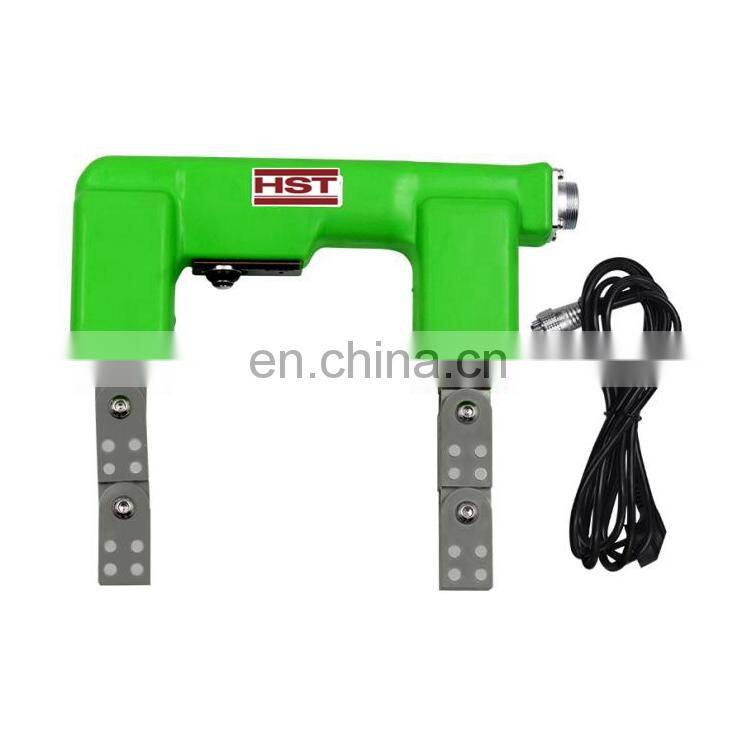

Y-1 Y-8 Cable Magnetic Particle Yoke Flaw Detector
Product Characteristics
Three power supply modes can be selected freely:
*Be directly connected to AC power supply for place with direct insert AC power supply;
*For place without direct insert AC power supply, AC magnetized power supply (AC battery pack) can be used to realize AC magnetization inspection function.
*DC magnetized power supply (DC battery pack) also can be selected to realize function of DC magnetization.
*AC magnetized power supply (AC battery pack) has the protection function of stable voltage output, over-charge, over-current, over-discharge.
*Automatic power off will be started when the lifting force is insufficient, so as to ensure the detection sensitivity.
*Power display function, which can display current battery capacity, as well as with sound-light alarm function.
*Built-in microcomputer chip, stable output voltage to ensure detection sensitivity.
*Adjustable magnetization intensity
*Special working pockets, which can carry battery pack, magnetic suspension, contrast agent, magnetic yoke probe, etc.
Technical parameter
*Working temperature: -10~+40℃
*Storage temperature: -20~50℃
*Relative humidity: No condensing<80%
*Operation temperature rise: <18℃
*Duty cycle: >50%
*Sensitivity: type A1 standard specimen 15/50 grooves are clearly displayed
*Minimum AC boost: >4.5kg(44N), maximum AC boost: 7kg (68.6N)
*Minimum DC boost: >18.1kg(177N), maximum DC boost: 23kg (225N)
Technical parameters
|
Y-1 |
Y-2 |
Y-8 |
|
|
Electrode spacing |
0~210mm |
0~210mm |
0~210mm |
|
Maximum current |
2.8A |
2.8A |
2.8A |
|
Weight |
2.2kg |
2.2kg |
2.2kg |
|
Main function |
1) AC magnetization (direct insert power supply) |
1) AC magnetization (direct insert power supply); 2) DC magnetization (with MT-500 DC magnetization power supply) |
1) AC magnetization (direct insert power supply) 2) AC magnetization (with MT-600 ) |
