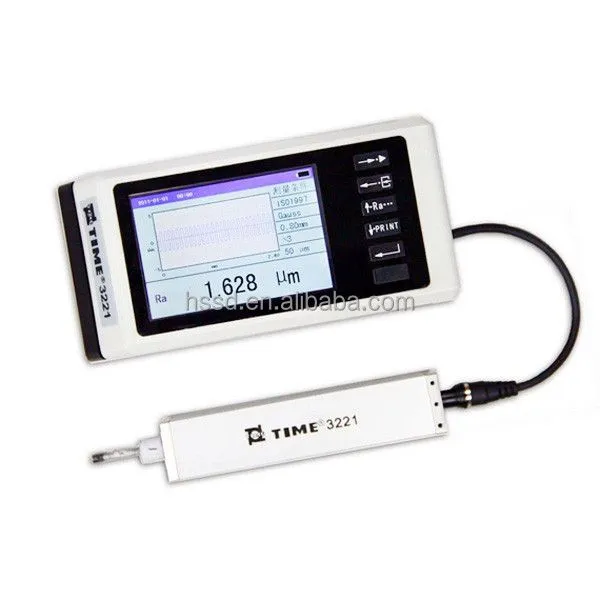

TIME 3221 Surface Roughness Tester
1.Product description:
TIME3221 Surface Roughness Tester is a high cost-effective surface measurement device. Separated driver makes it easier and more flexible to approach different surfaces. Touch screen. Measuring range reaches 400μm to test curved surface.
2.Features

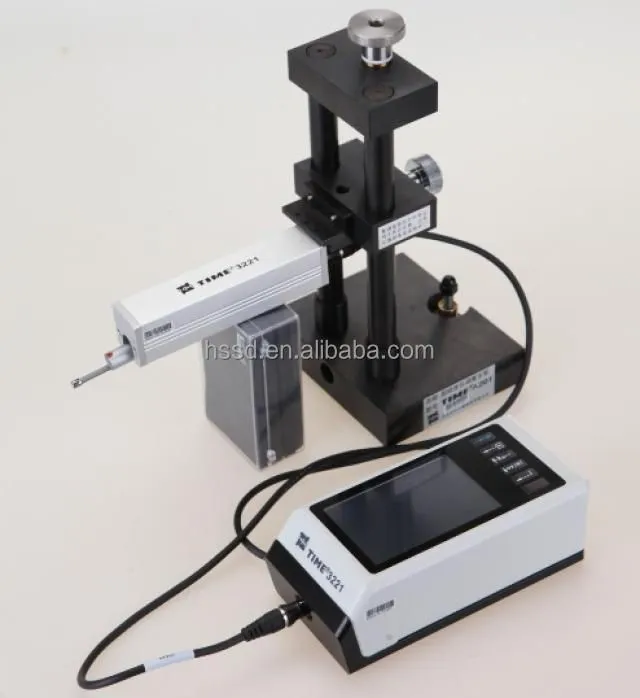

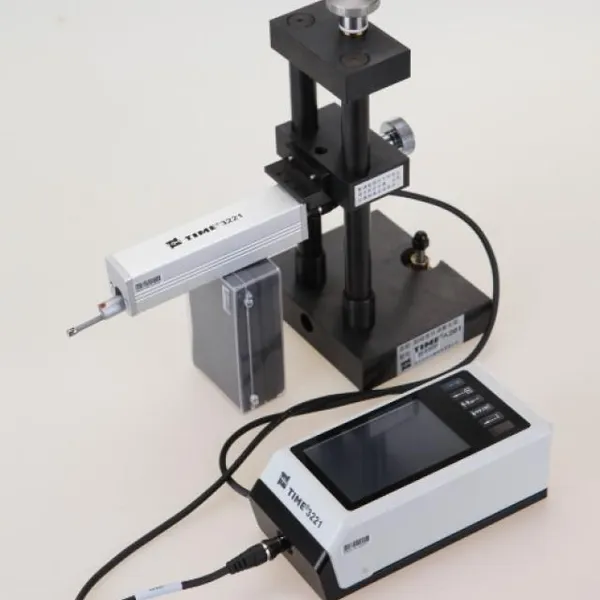

1.Separated design, mini driver easy and convenient to use
2. Multi-parameter measuring: Ra,Rp,Rv,Rt,Rz,Rq,Rsk,Rq,Ra,Rku,Rc,RPc,RSm,Rmr(c),tp,Rmr,Rpm,Rz1max,RzJIS,Rmax,Htp,Rδc,Pa,Pp,Pv,Pt,Pz,Pq,Psk,Pku,Pc,PSm,Pmr(c),Pmr,Pz1max,PzJIS,Pδc,Pq,Rk,Rpk,Rvk,Mr1,Mr2,A1,A2
3.Touch screen with TFT LCD showing all important parameters and graphs
4.High accuracy inductive pickup
5.Filtering methods of 2RC, GAUSS
6.Compatible with standards of ISO1997, ANSI and JIS2001
7.Connected to TIME TA230 printer to print all parameters and graphs
8.RS232 interface and USB interface meeting more needs
3.Specification:
|
Pickup |
||
|
Test principle |
Inductance type |
|
|
Measurement range |
400μm |
|
|
Stylus tip radius |
5μm/2μm |
|
|
Stylus tip material |
Diamond |
|
|
Measuring force |
4mN/0.75 mN |
|
|
Stylus tip angle |
90º/60º |
|
|
Radius of skid curvature |
45mm |
|
|
Maximum drive range |
19mm/0.748inch |
|
|
Traversing speed |
Measuring: |
|
|
Accuracy |
Less than or equal to ±10% |
|
|
Repeatability |
≤6% |
|
|
Cut-off length |
0.08mm,0.25mm,0.8mm,2.5mm, selectable |
|
|
Evaluation length |
(1~5 )L selectable |
|
|
Measuring rang and resolution |
Measuring range |
Resolution |
|
|
Automatic |
0.001μm,0.008μm |
|
|
±50μm |
0.001μm |
|
|
±200μm |
0.008μm |
|
Power |
Built-in Li battery |
|
|
Power adapter |
Input: 100 V~240VAC,50/60Hz |
|
|
Working environment |
Temperature: 0℃~40℃ |
|
|
Dimensions (mm) |
155.4×75×53 |
|
|
Weight (g) |
580 |
|
4.Accessories
|
Standard Delivery |
|
|
Main unit |
1 |
|
Standard pickup |
1 |
|
Standard sample |
1 |
|
Power adapter |
1 |
|
Communication cable |
1 |
|
Protection sleeve |
1 |
|
Adapter |
1 |
|
Magnetic base |
1 |
|
TIME certificate |
1 |
|
Warranty card |
1 |
|
Instruction manual |
1 |
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,16 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 7-15days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair your problem controller freely,even it's not from our factory. After the warranty, the professional aftersale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate.
We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
