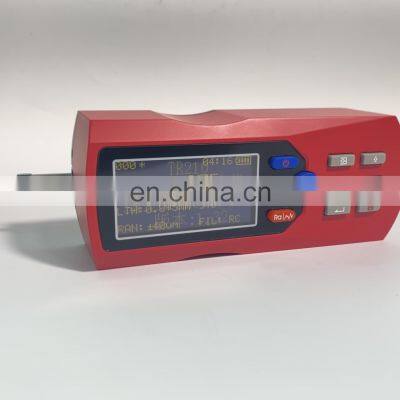

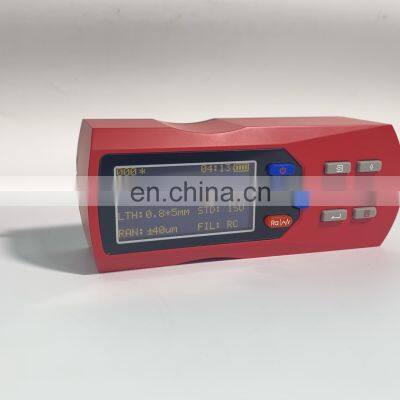

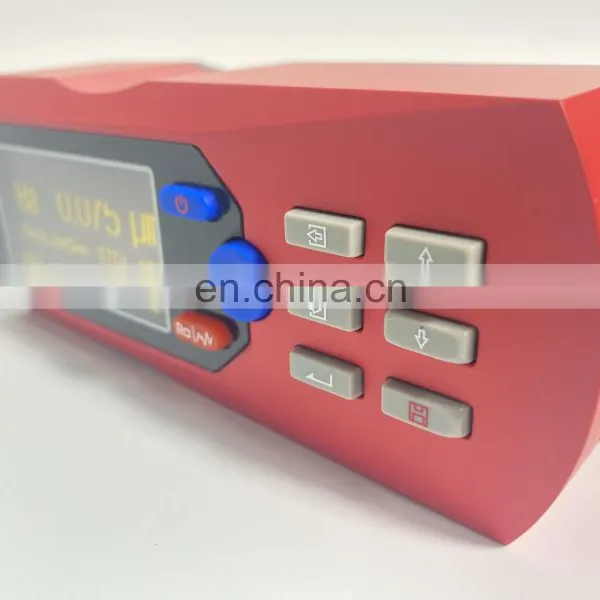

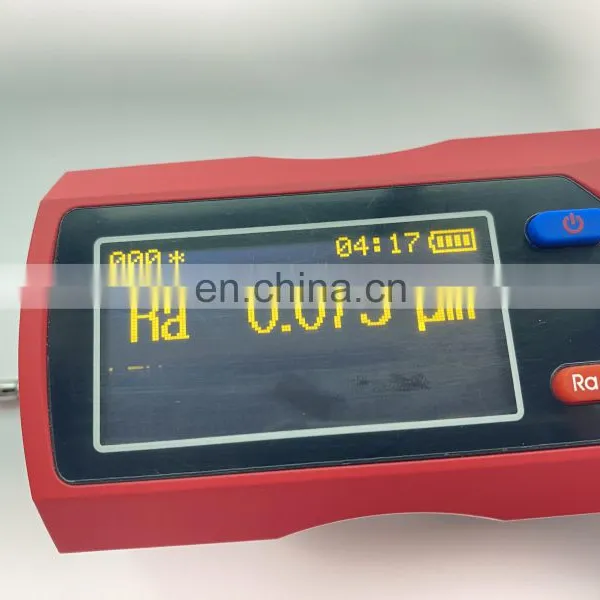

HST HR 3200 High Precision Portable Surface Roughness Tester

FOB Price

Negotiable

1 (Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

HST HR 3200 High Precision Portable Surface Roughness Tester

Product Description

1. Application :

Main Features

*Full metal shell design, sturdy, compact, portable, high reliability.

*Visual waveform display;

*Electromechanical integration design, small volume, light weight, easy to use;

*Using DSP chip to control and data processing, high speed, low power consumption;

*128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;

*Intuitive and rich display information, can display all the parameters and graphics;

*Compatible with ISO, DIN, ANSI, JIS national standards;

*Residual quantity icon, prompting the user to charge;

*Continuous working time: more than 20 hours;

*Real-time clock settings and display, convenient data recording and storage;

*With automatic dormancy, automatic shutdown and power saving function;

*Multi-info Display: measurement information, menu prompt, fault and power switch information indicated.

*With PC software, can be connected to a computer and printer;

*Optional different sensor, measuring platform, mini printer, extension rod and other accessories;

*Support OEM Service, High price performance.

TECHNICAL DATA

14 Testing Parameters	Ra, Rz=Ry(JIS), Rq, Rt=Rmax, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx,
Measuring Range	Ra: 0.005~16.000μm Rz: 0.02~160.00μm
Sample Length	0.25, 0.80, 2.50mm
Evaluation Length	(1~5)L
Maximum Drive Stroke	17.5mm/0.7inch
Indication Accuracy	0.001μm
Indication Error	≤(±10)%
Variability	<6%
Data Storage	100 groups
Power	Rechargeable Li-battery
Relative Humidity	<90%
Working Temperature	-20°C~40°C
Size	141x55x40mm
