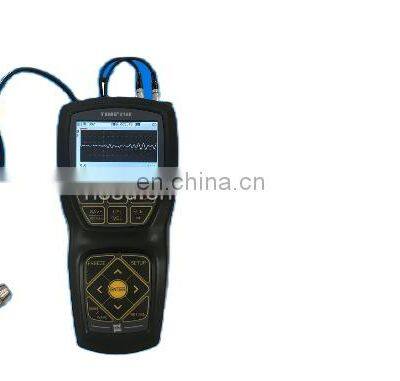

TIME 2190 With A/B Scan Ultrasonic Thickness Gauge

Standard Delivery

Optional Accessory

Main unit

1

Communication cable

5MHz dual crystal probe

1

Standard test block

Couplant

1

1MHz single crystal probe

TSTU32 Probe

5MHz single crystal probe

15MHz single crystal probe

Measuring range

0.25~500mm

Display resolution

0.001 mm, 0.01 mm or 0.1 mm

Sound velocity range

508 m/s~18699m/s

Repeatability

5M probe and above: 0.03mm
2M probe and below: 0.1mm

Display screen

Color TFT LCD, 320x240 pixels

Gain range

0-99dB, 1dB step

Pulse Generator

Adjustable Square Wave Pulse Generator

Emission voltage

60V, 110V, 150V, 200V optional

Emission pulse width

varies with transducer frequency

Frequency range

0.5 Mhz~20Mhz

Measurement rate

standard (4Hz), fast (20Hz)

Transducer settings

10 sets of fixed setting and 22 sets of custom setting

Data Storage

500 data files, each capable of storing 1000 measurements and waveforms

Interface

USB

Power

three AA battery or NiMH batteries

Working temperature

0~40℃

Weight (g)

360g

Dimension

187mm×87 mm×43 mm

Transducer Type

Measuring Range (steel)

Indication Error

Using Mode

5MHz dual element narrow pulse transducer

1.2~225.0mm
3.0~100.0mm

H<10mm, ±0.05mm;
H≥10mm,  ±(0.01+0.5%H)mm

Standard
Echo-Echo

5MHz single element contact transducer

5.0~225.00mm
5.0~100.00mm

H<10mm, ±0.05 mm;
    H≥10mm, ±(0.01+0.5%H)mm

Standard
Echo-Echo

TSTU32 2MHz Double element transducer

3.0~300.00mm

H<10mm, ±0.1 mm;
     H≥10mm, ±(0.01+1%H) mm

Standard

1MHz single element contact transducer

10.~500.00mm

H<10mm, ±0.1 mm;
    H≥10mm, ±(0.01+1%H) mm

Standard

15MHz Single element delay block transducer:

3.0mm~20.0mm
0.25m~10.0mm

H<10mm, ±0.05 mm;
    H≥10mm, ±(0.01+0.5%H)mm

Interface-echo
Echo-echo
