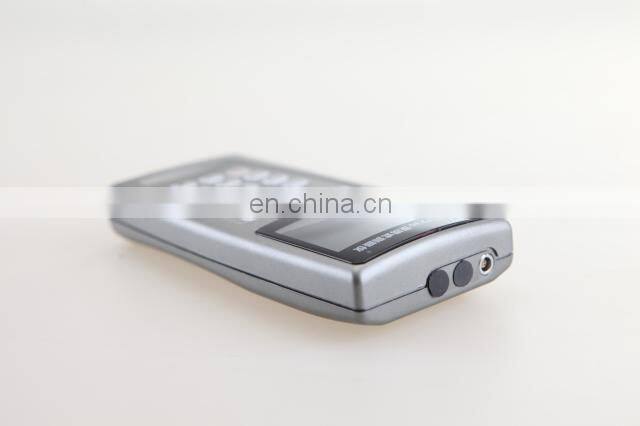

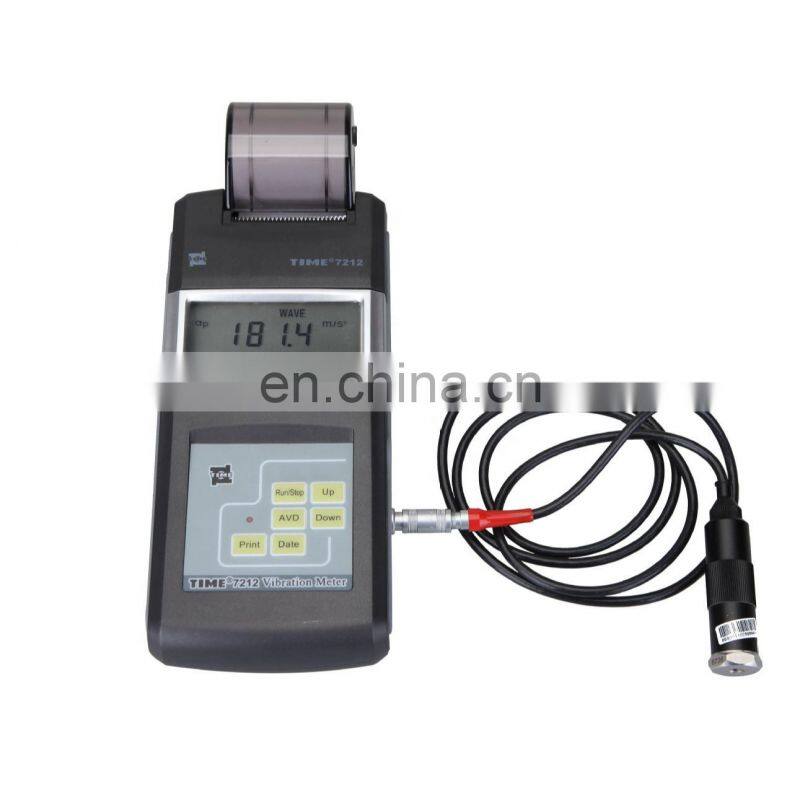

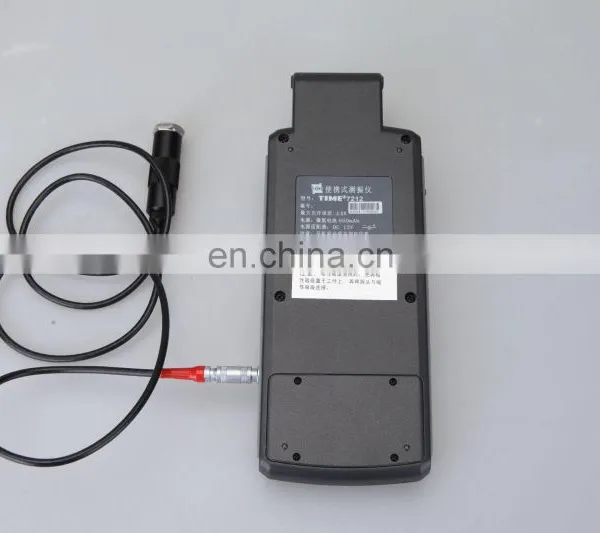

TIME 7231 Portable Vibration Meter
- 1000 per Month
- T/T Credit Card
- Manufacturer ndt ultrasonic inspection ultrasonic flaw detector
- digital portable ndt ut flaw detector
- HST HR 3200 High Precision Portable Surface Roughness Tester
- Steel Weld Testing Machine Ultrasonic Flaw Detector
- HST HENSGRAND Y-1 Handheld Magnetic Particle Yoke Magnetic Particle Yoke Flaw Detector
- NDT Portable Digital Ultrasonic Testing Ultrasonic Flaw Detector
Product Description
TIME 7231 Portable Vibration Meter
1.Features:
There are three display modes: numerical type, spectrum type, special type
Powerful storage function: can store 100,100 sets of measurement results (100 measurement points, 100 sets of data for each measurement point) and 100 spectrograms (one spectrogram per measurement point)
2.Standard configuration:
Host, vibration measuring probe and magnetic suction base (gift), charger, leather case
3.Optional accessories:
RS232 communication cable, TA230 printer, probe assembly (including probe)
duct description:

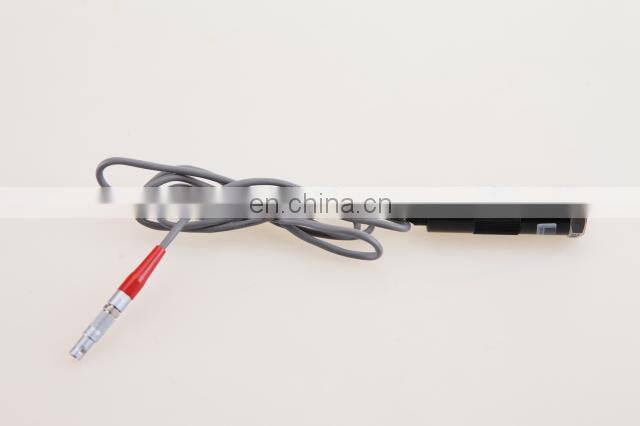

The portable vibrometer uses piezoelectric acceleration sensors to convert vibration signals into electrical signals. Through processing and analysis of the input signals, it displays the acceleration, velocity, displacement value or spectrogram of the vibration; its technical performance complies with the international standard ISO2954 and my country The national standard GB/T13824 requires the vibration intensity measuring instrument and the sine excitation method vibration standard in GB13823 3.
5.Product Usage:
It is used in conventional vibration measurement, especially in rotating or reciprocating machinery. It is widely used in electric power, petrochemical, machinery manufacturing, metallurgy, vehicles and other fields.
6.Features:
There are three display modes: numerical type, spectrum type, and special type;
Powerful storage function: can store 100×100 groups of measurement results (100 measuring points, each measuring point stores 100 groups of data) and 100 spectrograms (each measuring point stores a spectrogram);
The instrument can display the measurement spectrogram in real time;
The instrument can draw a histogram according to the set warning line;
Simple fault diagnosis: when the measured value exceeds the alarm value, an alarm is displayed, and the instrument automatically enters the spectrum analysis state, indicating that the measured value exceeds the limit;
Connected to a micro printer to print measurement data and spectrograms;
Connect with the computer to form a trend analysis graph and analyze the measurement data (cooperate with the upper computer software);
Display: 320×200 dot matrix liquid crystal (with LED backlight);
Two types of probes are available: high sensitivity probe (small signal value), low sensitivity probe;
Comply with the requirements of the international standard ISO2954 and my country's national standard GB/T13824 for the vibration intensity measuring instrument and the vibration standard of the sinusoidal excitation method in GB13823-3;
7.Specification:
Measuring range |
Low sensitivity probe Acceleration: 0.1m/s²-392m/s² (peak) Speed: 0.01cm/s-80cm/s (effective value) Displacement: 0.001mm-18.1mm (peak-peak) |
Frequency Range |
Acceleration: 10Hz-200Hz, 10Hz-500Hz, 10Hz-1KHz, 10Hz-10KHz Speed: 10Hz-200Hz, 10Hz-500Hz, 10Hz-1KHz Displacement: 10Hz-200Hz, 10Hz-500Hz |
Allowable error |
±5% |
Temperature and humidity range |
0℃-40℃;≤80%RH |
power supply |
Lithium battery (up to 20 hours of continuous use, without LED backlight) |
Dimensions |
171mmX78.5mmX28mm |
weight |
230g |
8.Standard configuration of vibrometer:
Host, vibration measuring probe and magnetic suction base (gift), charger, leather case
9.Optional accessories for vibrometer:
RS232 communication cable, TA230 printer, probe assembly (including probe)
