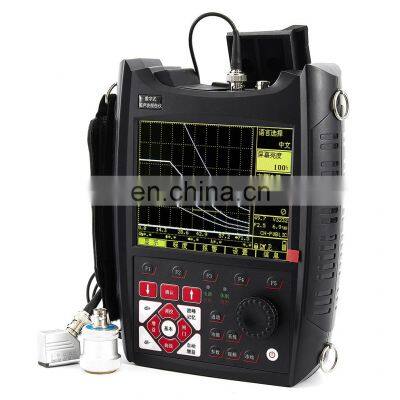

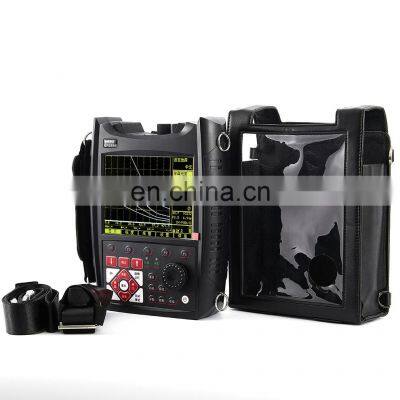

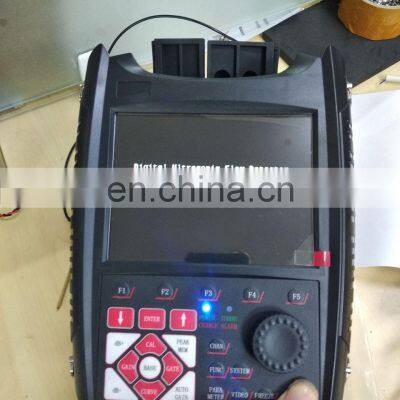

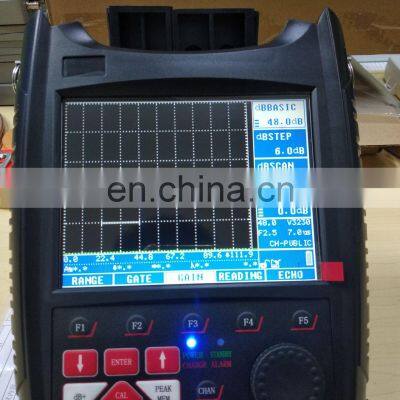

Digital Portable Ndt ut Flaw Detector

1. 10 independent flaw detection channels, which can freely set and store various flaw detection processes and standards, and can store 100 flaw detection waveform signals and data

2. real time dynamic color recording with recording time up to 50 minutes

3. There are two scanning modes: A-scan and b-thickness scan

4. Square wave pulse generator: adjustable pulse width, suitable for detecting the defects of different materials and different depth workpieces;

5.DAC curve making

6.5.7-inch TFT color display, users can set the screen color according to the environment

7. Compatible with single crystal straight, single crystal oblique, double crystal and transmission probes

8. Three detection modes: positive half wave, negative half wave and full wave

9. It has automatic calibration function of straight probe and angle probe, which is easy to use;

ctions such as defect peak memory to assist in qualitative judgment of defects

11.audible and visual alarm and low power alarm can be set for gate, curve wave in, wave loss and other conditions

12.main menu and submenu are displayed in the same window.Clear at a glance, easy to operate, easy to find

13. The main functions are fast access through the shortcut key, and the shuttle wheel is convenient to adjust the settings quickly

14. multiple industry reports available

15. Data can be imported into the computer through USB2.0 Interface

16.Large capacity lithium battery can guarantee a endurance of more than 20 hours and can be replaced at any time

17. The standby battery can be charged separately, and the battery can be charged when the host is working

18.It can be operated by a single wrist strap handset or by hanging it on the chest

19. Protection grade IP53, can be used in dripping environment or light rain
