WDW-E 200kn, 300kn, 500kn, 600kn Tensile Universal Testing Machine 300kn
Contact: Alice Zhang Skype: hssdtest What's APP / TEL: +86-15098778967
1. Application:
Universal material testing machine is designed and manufacturedaccording to
ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubberplastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2. Main Specifications:
Model |
WDW-200E |
WDW-300E |
WDW-500E |
WDW-600E |
Max. Load |
200kN 20000kgf 44800lbf |
300kN 30000kgf 67200lbf |
500kN 50000kgf 112000lbf |
600kN 60000kgf 134400lbf |
Load accuracy |
≤±0.5% |
|||
Load range |
0.2%-100% of full scale |
|||
Load resolution |
1/500000 of full scale |
|||
Disp. resolution |
0.01mm |
|||
Test speed |
0.01-200mm/min |
|||
Tensile space |
600mm|21.6in |
|||
Comp. space |
600mm|21.6in |
|||
test width |
600mm |
600mm |
570mm |
570mm |
Grips |
Manual(Hydraulic grip optional) |
Hydraulic grip |
||
Dimension |
1110×750×2560mm |
1110×780×2600mm |
||
round specimen |
9-26mm |
9-32mm |
||
flat specimen |
0-20mm |
0-20mm |
||
Power supply |
380V, 3ph, 3KW |
380V, 3ph, 4KW |
||
Weight (kg) |
2100kg|4620lb |
2500kg|5500lb |
||
3. Feature:
3.1 Main Unit:

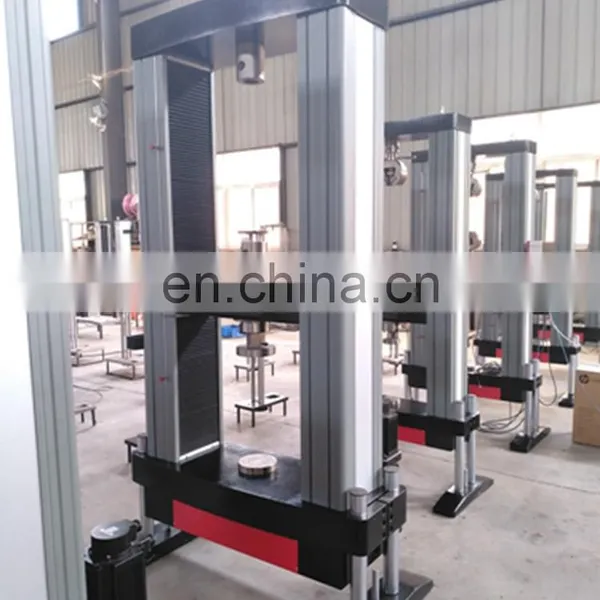

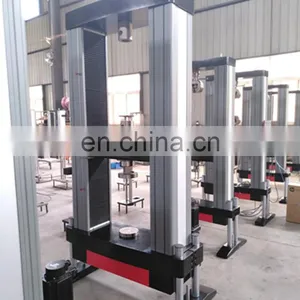

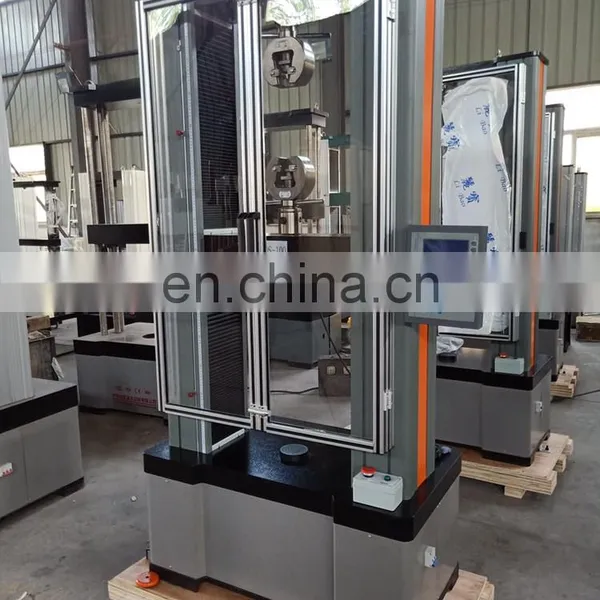

WDW-E Tensile Universal Material Testing Machine adopt double space structure, the upper space used for tensile test, the lower space used for compression and bending test. The beam moving speed is stepless adjust. The drive system consist of servo control reduction motor, arc synchronous belt, ball screw, moving steadily, high working efficiency, low noise, no pollution.
3.2 Electrical measurement and control system
3.2.1 With protect function of overload,over current, over voltage, displacement limit, emergency stop, etc .
3.2.2 The controller can control more load sensor, high integration, stable and reliable, easy to adjust.
3.2.3 When finished testing, automatic stop.
3.2.4 Control system with programmable amplifier A/D conversion, digital I/O, counting and pulse happen (PWM), and other functions in one
3.2.5 Mechanical zero setting, automatic force measurement, zero setting, calibration and save, highly integrated control circuit
