WDW-30 pvc material tensile testing machine
- 1000 per Month
- T/T Credit Card
You May Like
-
Lab equipments cable steel rebars bend tensile strength testing universal machine
-
Mechanical testing equipment for construction materials
-
small 500N 1KN 5KN single column electronic universal tester
-
WDW-100 100kn Plastic PE rope tensile test machine
-
WDW-100E Can customized Pvc tensile strength testing meter
-
WDW-100 ultimate computer control 16 gauge black annealed tie wire tensile strength test Equipment
Product Description

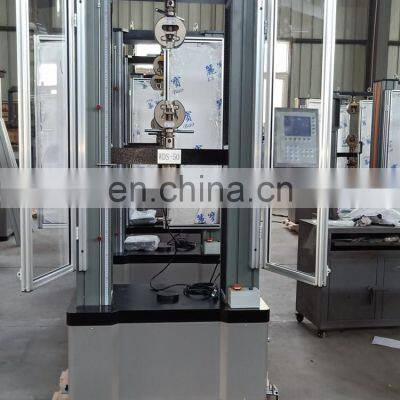

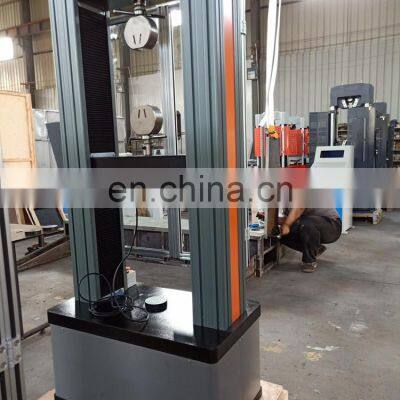

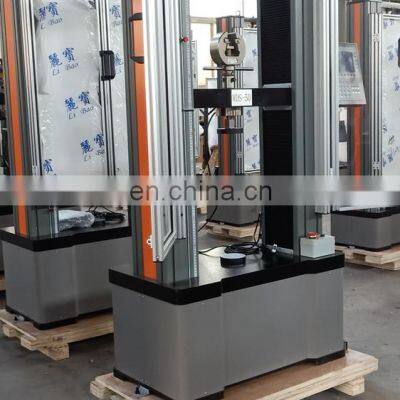

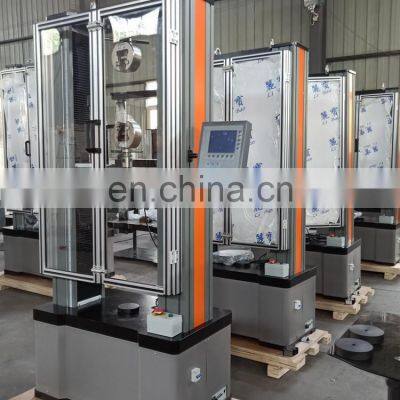

WDW-30 kn Universal Computer Tensile Strength Waterproof Tester
1. Application:
This series mainly used for tensile, compression, peal, shear, tear, and bending mechanical property test for metal, non metal material. Widely used in aerospace, petrochemical industry, machinery manufacturing, plastic, rubber, ceramic building materials, metal materials, construction and other industries, and institutions of higher learning, scientific research institutions, technical supervision, Quality Inspection Station and so on.
2.Technical parameters:
Model | WDW-10/20//30 | WDW-50 | WDW-100 | WDW-200/ 300 | WDW-500/ 600 | ||||||
Max. Load | 10kN | 20kN | 30kN | 50kN | 100kN | 200kN | 300kN | 500kN | 600kN | ||
Structure | Four-column Floor Type (upper is compression and lower is tensile) | ||||||||||
Control model | Computer control | Constant stress, constant strain,constant displacement closedloop control System | |||||||||
Load accuracy | 1 class/ 0.5 class optional | ||||||||||
Load range | 2%-100% of full scale /0.4%-100% optional | ||||||||||
Load resolution | 1/300000 | ||||||||||
Deformation test range | 2%~100% | ||||||||||
Deformation accuracy | ≤±1% | ||||||||||
Displacement accuracy | ≤±1% | ||||||||||
Disp. resolution | 0.04um | ||||||||||
Displacement speed | 0.05-500mm/min | 0.05-200mm/min | |||||||||
Tensile space | 800mm | 700mm | 700mm | 550mm | 700mm | ||||||
Compression space | 800mm | 700mm | 700mm | 550mm | 700mm | ||||||
Test width | 400mm | 400mm | 450mm | 600mm | 500mm | ||||||
Clamp way | Manual clamp / Hydraulic clamp (optional) | Hydraulic clamp | |||||||||
Load Cell Configuration | One(max load), more load cells can be added according to customer requirement | ||||||||||
Extend configuration | Large deformation extensometer, high or low temperature teste chamber, high temperature oven | ||||||||||
Power supply | AC220/380V±10%,50Hz (can be customized) | ||||||||||
