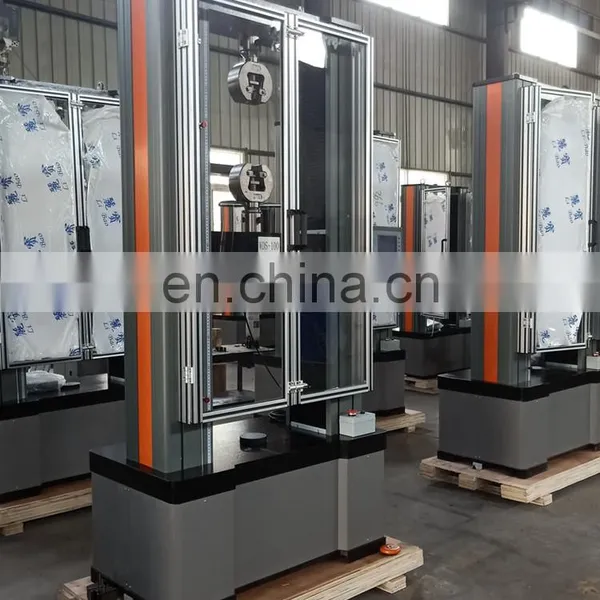

WDW Electronic Universal Tensile Compressive Strength Tester Universal Tensile Test Bench photo-4
WDW Electronic Universal Tensile Compressive Strength Tester Universal Tensile Test Bench photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2009
Factory Size:
1,000-3,000 square meters
Contact Supplier Request Quote Chat Now
Hst Group Co.,ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Universal Tensile Compression   Universal Tensile Testing Machine Price

WDW Electronic Universal Tensile compressive strength tester Universal Tensile Test BenchWDW Electronic Universal Tensile compressive strength tester Universal Tensile Test Bench

WDW Electronic Universal Tensile compressive strength tester Universal Tensile Test Bench

1. Overview:

WDW computer control Material electronic plastic rod tensile test machine is manufactured according to the GB/T2611-2007 General requirements for testing machines and GB/T16491-2008 Electronic universal testing machines . The computer automatically control the testing machine to rise, fall, test, stop, etc. With good appearance, convenient operation, stable and reliable performance.



2. Application:

This series mainly used for tensile, compression, peal, shear, tear, and bending mechanical property test for metal, non metal material. Widely used in aerospace, petrochemical industry, machinery manufacturing, plastic, rubber, ceramic building materials, metal materials, construction and other industries, and institutions of higher learning, scientific research institutions, technical supervision, Quality Inspection Station and so on.



3.Technical parameters:

1.  Test force

Max test force(kN): 10kN,20kN,30kN, 50kN (100KN, 200KN, 300KN, 600KN available)

Test accuracy:1 class(standard)/ 0.5 class(special)

Effective test range: 2%-100%FS/(0.5 class with 0.4%-100%)

Force resolution: 1/300000

Test value relative error:±1%/(0.5 class with ±0.5%)



2. Test speed

Speed adjusting range:0.005~500mm/min(step less speed regulating)/ (can customize)

Accuracy:better than ±1%

Force control rate range:0.005—5%FN

Force control rate control accuracy:

when rate<0.05FN/s,is within ±2% setting value

When rate≥0.05FN/s,is within ±1%/(0.5 class, accuracy is±0.5% setting value)

Deformation rate control range:0.005—5%FN

Deformation rate control accuracy:

when rate<0.05FN/s,is within ±2% setting value

When rate ≥0.05FN/s,is within ±0.5% setting value



3.  Displacement(moving cross beam)

  Test range:0~999mm

  resolution:0.001mm

  Test accuracy:better than ±1%



4.  Deformation

  Large deformation test range:10-800m ( can customize)

  Small deformation test range:gauge length:50mm, maximum deformation:15mm ( can customize)

  Effective test range:2%~100%FS

  Resolution:0.01mm

 Test value relative error:±1%



5. Test space

  Effective tensile space:700mm(can customize)

  Effective compression space:700mm(can customize)

  Effective test width:400mm (can customize)



6. Working environment

Room temperature: 10~35°C,humidity: 20%~80%
