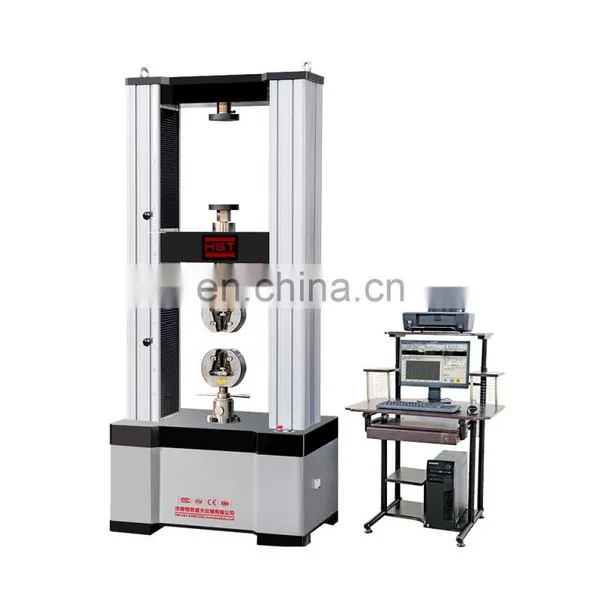

WDW-300 30ton Computer Universal Electronictensile testing machine 300kn
Main Unit Feature:
1.Adopt single column structure, lower for tensile, upper for compression, double space. The beam is stepless lifting, light but rigid.
2.Adopting ball screw drive, realize no clearance transmission,make sure the precision control of the test force and deformation speed.
3.The photoelectric encoder is the displacement sensor, with high resolution, strong anti-interference ability.
4.The shiel plate with limit mechanism used to control the beam moving range, in order to avoid sensor damaged due to the moving distance is too large.
Model |
WDW-200 |
WDW-200E |
WDW-300 |
WDW-300E |
Max. Load(kN) |
200 |
200 |
300 |
300 |
Load accuracy |
Class 1 |
Class 0.5 |
Class 1 |
Class 0.5 |
Load range |
2%~100%F·S |
0.2%~100%F·S |
2%~100%F·S |
0.2%~100%F·S |
Load resolution |
1/300000 |
|||
Resolution of deformation |
0.04um |
|||
Accuracy of displacement |
Within±0.5%of indicating load |
|||
Resolution of displacement |
0.01mm |
|||
Test speed(mm/min) |
0.05-200 stepless arbitrary setting |
|||
within ±1% / ±0.5% of set speed |
||||
E-Tensile space(mm) |
550 (can be customized) |
|||
E-Compression space(mm) |
550 (can be customized) |
|||
D-Test width(mm) |
600 (can be customized) |
|||
F-Beam travel distance(mm) |
1150 |
|||
H-Workbench thickness(mm) |
108 |
|||
I-Base height(mm) |
540-970 adjustable |
|||
Power supply |
AC220V±10%,50Hz/60Hz (can be customized) |
|||
