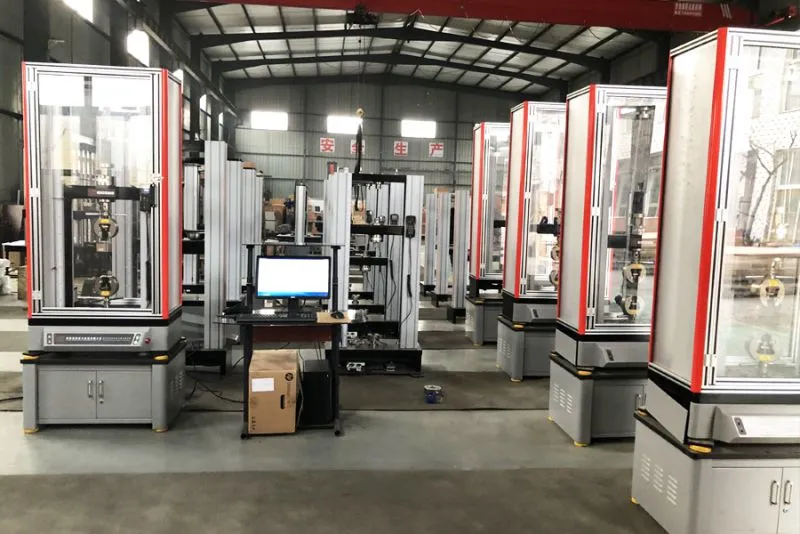

10KN Textile Elongation Computer Control Universal Testing Machine for Wire and Cable

US$ 5500 - 6900 MOQ: 1 Set

Key Specifications

brand name:

HST OR OEM

place of origin:

Shandong, China

customized support:

OEM, ODM, OBM, Software Reengineering

Hst Group Co.,ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

brand name HST OR OEM

place of origin Shandong, China

customized support OEM, ODM, OBM, Software Reengineering

power Electronic

warranty 1 YEAR

model number WDW/WDW-5/10/20/50/100/200/300/500/600

Max test force 10KN

Load accuracy ≤±1%

Load resolution 1/300000 of full scale

Disp. resolution 0.04μm

Test speed 0.05-1000mm/min

Color white and blue

clamp type Manual clamp

Test width 400mm

Tensile space 800mm

Motor TaiWan TECO AC Servo Motor

Certification CE, ISO

Textile elongation computer control universal testing machine for wire and cable

Contact me:Sunny mobile/wechat/whatsapp:+86-15866777590 Skype:jessica-hssd

Model	WDW-10/20/50			WDW-100		WDW-200/ 300		WDW-500/ 600
Max. Load	10kN 1000kgf	20kN 2000kgf	50kN 5000kgf	100kN 10000kgf		200kN 20000kgf	300kN 30000kgf	500kN 50000kgf		600kN 60000kgf
Structure	Floor Type
Control model	Computer control			Constant stress, constant strain, constant displacement closed-loop control System
Load accuracy	≥±1%
Load range	2%-100% of full scale
Load resolution	1/20000 of full scale
Deformation test range	/			2%~100
Deformation accuracy	/			≥±0.5
Deformation resolution	/			1/20000
Displacement accuracy	≥±1%
Disp. resolution	0.01mm
Displacement speed	0.005-500mm/min			0.001-200mm/min
Tensile space	700mm			650mm	600mm				650mm
Test width	400mm			450mm	550mm				650mm
Clamp way	Manual clamp								Hydraulic clamp
