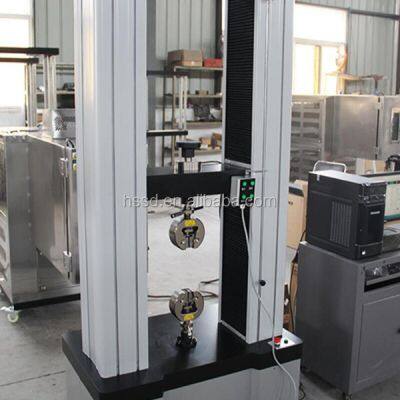

Electronic Computer Display Universal Hardness Testing Machine HST Tester

US$ 3000 1 - 9 Set

US$ 2000 ≥10 Set

Key Specifications

brand name:

Hensgrand

place of origin:

Shandong, China

customized support:

OEM, ODM, OBM

Hst Group Co.,ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

brand name Hensgrand

place of origin Shandong, China

customized support OEM, ODM, OBM

power Electronic

warranty 1 YEAR

model number WDW-10

Product name electronic computer display universal hardness testing machine

Test force 10KN, 20KN,30KN, 100KN,300KN,500KN etc.

Load Accuracy ±1% or ±0.5%

resolution of load 1/300000 of full scale

Tensile Test Space 650mm

Grips Manual Grip or Hydraulic Grip

Power supply 220V/380V/110V, 50-60HZ

Application Leather, textile, metal etc.

Certificate CE/ASTM/JIS

resolution of deformation measurement 2%-100%

electronic computer display universal hardness testing machine HST tester

Product Description

Specification Data

Computer control universal Testing machine specification :

NO.	Items	Model	WDW-10	WDW-20	WDW-30	WDW-50
1	Host	Structure	column and 2 Ball Screw
		Max. Load(kN)	10	20	30	50
		Tensile space(mm)	670			770
		Compression space(mm)	900			1000
		Effective test width	450			450
		size(mm)	850 x 590 x 1750			840 x 570 x 1850
		Host Weight (mm)	370kg			420kg
		Power Supply	220V/50-60Hz
2	control system	Controller	24 bit AD, external controller
		communication mode	USB 2.0
		Test software	HKTest
		Hand control box	320x240 Display Sscreen,8 key control
3	Process Specifications	Servo motor	TAIWAN “TECO”
		Speed(mm/min)	0.01-1000
		Displacement resolution	0.4 pm
4	Test Specifications	Load cell	USA(max load): one can add more load cell
		Load accuracy	Class 0.5, EN 10002-2 Grade0.5, ISO75001-1 Class 0.5, BS 1610 Class 0.5, ASTM E4, and JIS B7721 Class 0.5
		Measuring range	0.2%~100%
5	Safety protection	strong electric drive system	24V voltage control, with over current overloading protection function
		Position limit switch	Upper and lower lights
		Power	Power light,leak current protection device
		Automatic protection	Overload 10%, automatic protection
		Position limit protection	Hall switch
6	Other configuration	Equipment level adjusting device	φ80mm vibration-absorptive cushioning iron
		Hand control box fixing device	Standard
