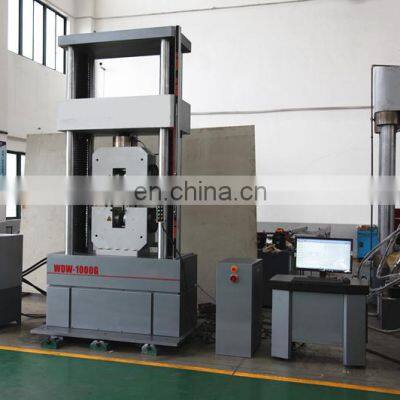

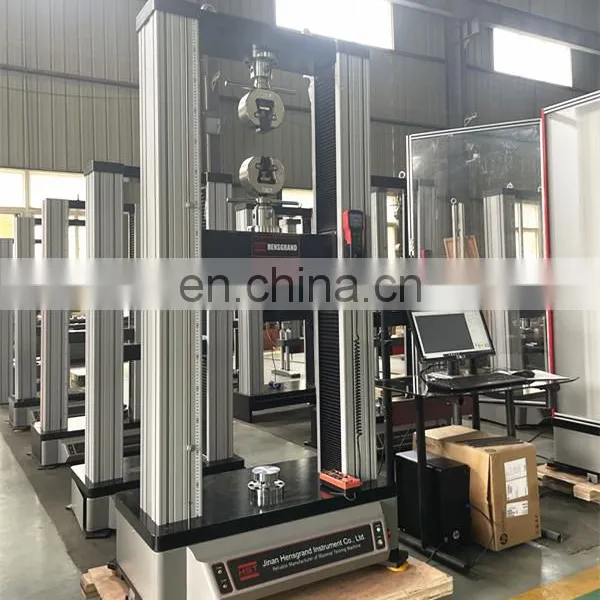

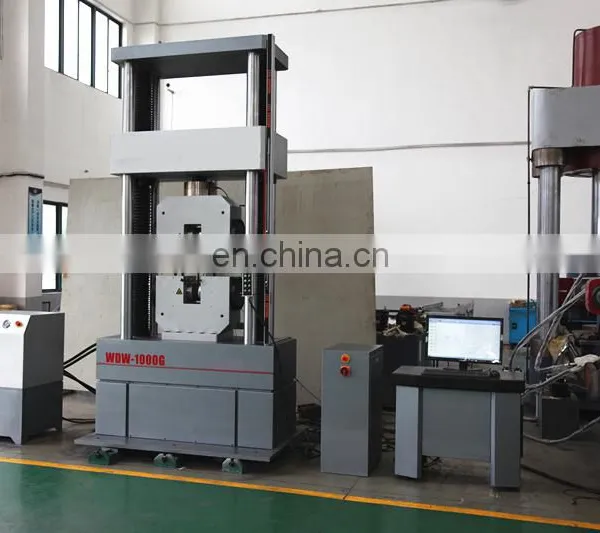

WDW computer control strength tester electronic machinery and equipments for wire and cable testing
Contact: Alice Zhang skype: hssdtest whatsapp / wechat /mobile: +8617853101076, 15098778967
1.Application:
Material static universal testing equipment is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2.Standard:
ASTM, ISO, DIN, GB and other international standards.
3.Main Technical Parameters:
|
Model |
WDW-10 WDW-20 |
WDW-30 WDW-50 |
WDW- 100 |
WDW-200 WDW-300 |
||||
|
Max. load |
10kN |
20kN |
30kN |
50kN |
100kN |
200kN |
300kN |
|
|
Tensile space |
800mm |
700mm |
700mm |
550mm |
||||
|
Compression space |
800mm |
700mm |
700mm |
550mm |
||||
|
Test width |
400mm |
500mm |
550mm |
600mm |
||||
|
Structure |
Four-column floor type, (upper is compression and lower is tensile) |
|||||||
|
Control method |
Computer control |
|||||||
|
Load accuracy |
1 class/0.5 class optional |
|||||||
|
Load range |
2%~100%F·S/0.4%-100% optional |
|||||||
|
Resolution |
1/300000 |
|||||||
|
Measuring range of deformation |
2%-100% |
|||||||
|
Accuracy Indication of deformation |
≤±1% |
|||||||
|
Disp. indicating relative error |
≤±1% |
|||||||
|
Displacement Resolution |
0.04um |
|||||||
|
Adjusting range of control rate of load |
0.005~5%FS/S |
|||||||
|
Adjustment scope of deformation rate |
0.005-5%FN/S |
|||||||
|
Adjusting range of displacement rate |
0.05-500mm/min(can be customized) |
|||||||
|
Load Cell Configuration |
One(max load), more load cells can be added according to customer requirement |
|||||||
|
Extend configuration |
Large deformation extensometer, high or low temperature teste chamber, high temperature oven |
|||||||
|
Power supply |
AC220/380V±10%,50Hz (can be customized) |
|||||||
|
Grips |
Manual/Hydraulic automatic optional |
|||||||
|
Dimension |
1000x550x2076 mm |
|||||||
|
Weight |
160kg |
460kg |
||||||
