Home > Instruments & Meters > Test Instrument > Test Machine > Computer Control Iron or Pellets Compression Tester

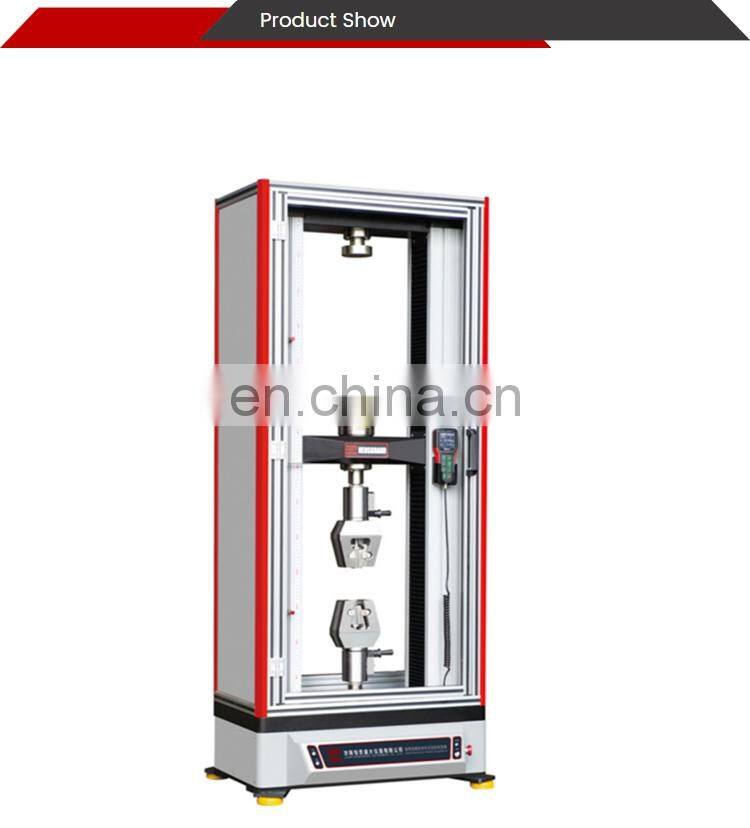

Computer Control Iron or Pellets Compression Tester

Computer Control Iron or Pellets Compression Tester thumbnail-3

Computer Control Iron or Pellets Compression Tester thumbnail-4

Computer Control Iron or Pellets Compression Tester thumbnail-5

Computer Control Iron or Pellets Compression Tester photo-1

Computer Control Iron or Pellets Compression Tester photo-2

Computer Control Iron or Pellets Compression Tester photo-3

Computer Control Iron or Pellets Compression Tester photo-4

Computer Control Iron or Pellets Compression Tester photo-5

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2009

Factory Size:

1,000-3,000 square meters

Contact Supplier Request Quote Chat Now

Hst Group Co.,ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

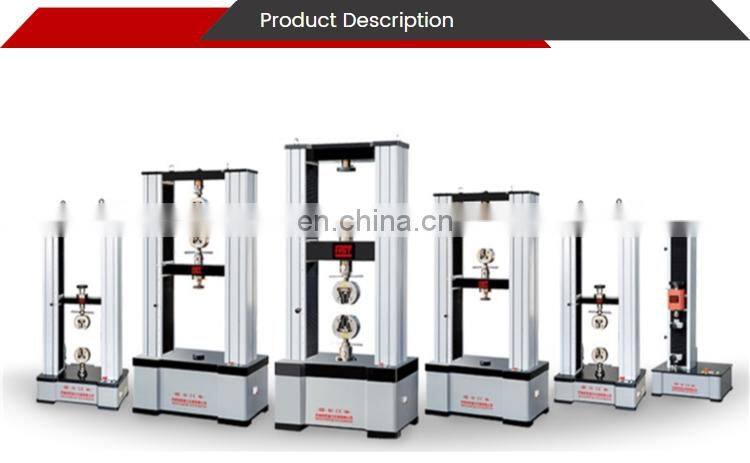

1. Application

It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

2. Standards

ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,

GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc

Model	ETM503	ETM104	ETM204	ETM304	ETM504	ETM105
Columns	Double Column
Load Capacity (kN)	5	10	20	30	50	100
Test Grade	0.5	0.5	0.5	0.5	0.5	0.5
Testing Force Accuracy	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Testing Force Range	0.4%-100%FS	0.4%-100%FS	0.4%-100%FS	0.4%-100%FS	0.4%-100%FS	0.4%-100%FS
Force Resolution	1/300000	1/300000	1/300000	1/300000	1/300000	1/300000
Displacement Accuracy	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Displacement Resolution	0.05mm	0.05mm	0.05mm	0.05mm	0.05mm	0.05mm
Speed Range (mm/min)	0.01-1000	0.01-1000	0.01-1000	0.01-1000	0.01-1000	500
Control Accuracy	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Crosshead Travel	1000mm	1000mm	1000mm	1100mm	1100mm	1100mm
Max. Tensile Testing Space(mm)	670	670	670	770	770	650
Max. Compression Testing Space(mm)	900	900	900	1000	1000	1000
Test width (mm)	450	450	450	450	450	550
Compression Platen	80mm	80mm	80mm	80mm	80mm	80mm
Load cell	High-precision USA load cell offers high stiffness, high stability, and high linearity
	Over-load protection ,lateral loading protection, Bi-direction allows tension and compression test
	Self-recognition (TEDS) function, Regular self-calibration
Position limit switch	Upper and lower lights
Power Supply	AC220V±10%, 50Hz/60Hz

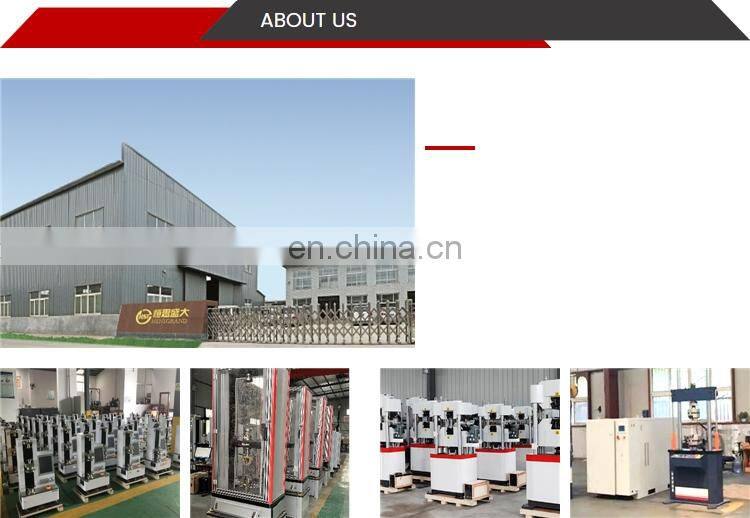

HST Group

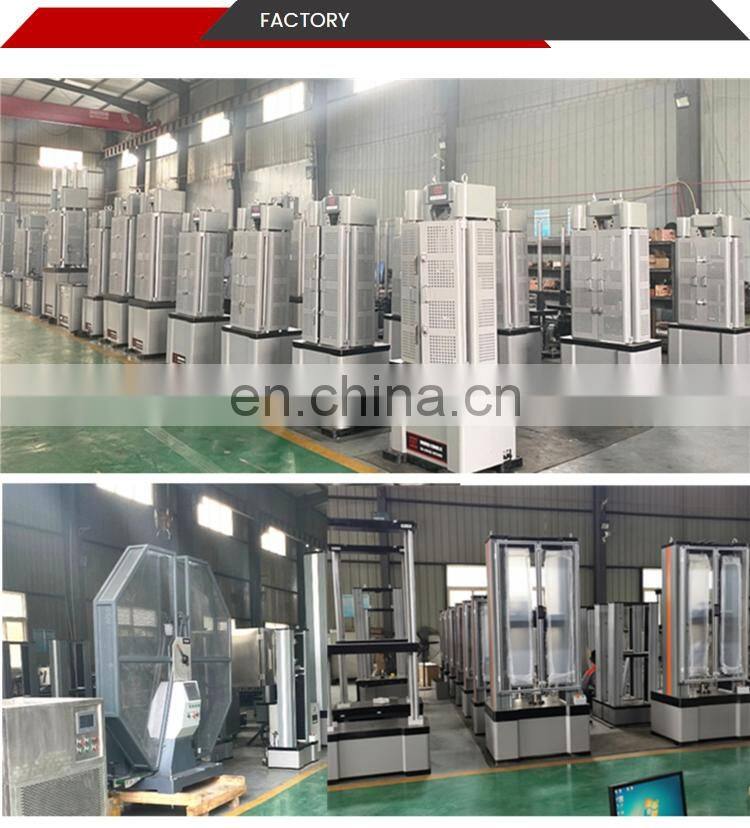

HST GROUP is specialized in developing and manufacturing testing equipments for metal ,non-metal and composite materials with all kinds of testing standards of GB,ISO,ASTM,BS, EN etc.Our main products contains the followings with CE and ISO certifications:Tensile Testing Machine, Electronic Universal Testing Machine, Hydraulic Universal Testing Machine, Impact Testing Machine, Compression Testing Machine, Torsion Testing Machine, etc.With modernized standard workshops and advanced production tools and machinery, we have strong ability to research and develope new production independently. With enough technical engineers , skilled workers and after-sale services team , we are able to supply best test solutions ,machines and services.We sincerely welcome customers from home and abroad to visit us, let''s make progress together and reach win-win cooperation!

Transport mode: Free sample is available once you accept the freight collect

Payment term: 30% T/T, L/C at sight

FAQ

1.Are your company a trading one or a factory ?
Factory + trade (integration),18 years focusing on test instruments field,13 years exporting experience.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3.What''s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 3-10 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don''t hesitate to tell us your requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
6.Do you have customers of our country before?
Now our testing machines have been sold to more than 110 countries, like USA, Canada, Russia,UK, Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam, Brazil and so on.
7.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
8.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won''t be damaged. We''ve delivered many testing machines abroad by sea or by air without damage.
9.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
10.How to install and use the product
The product is shipped with an operating instructions and video of English version.
