Product Description

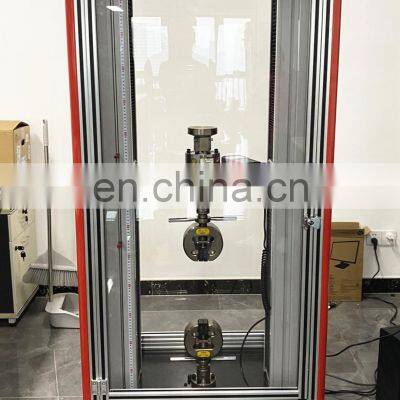

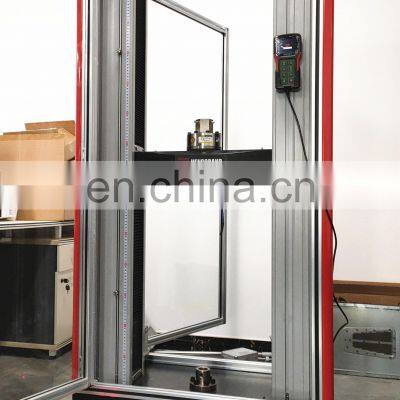

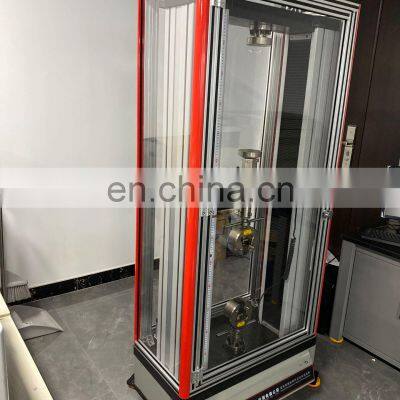

WDS-10 Electronic Digital Display universal testing machine manufacturer
1. Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2.Standard:
ASTM, ISO, DIN, GB and other international standards.
3.Main Technical Parameters:
|
Model |
WDS-10 |
WDS-20 |
WDS-30 |
WDS-50 |
|
Max. load |
10kN |
20kN |
30kN |
50kN |
|
Structure |
Four-column floor model, (upper is tensile and lower is compression; upper is compression and lower is tensile) |
|||
|
Control method |
Single chip control |
|||
|
Load accuracy |
1 class |
|||
|
Load range |
2%~100%F·S/0.4%-100% FS |
|||
|
Displacement Resolution |
0.04um |
|||
|
Test speed |
0.05-300mm/min(can be customized) |
|||
|
Tensile space |
700mm(can be customized) |
|||
|
Compression space |
700mm(can be customized) |
|||
|
Test width |
400mm(can be customized) |
|||
|
Power supply |
AC220V±10%,50Hz(can be customized) |
|||
|
Grips |
Wedge type, plate type and other grips as consumer’s demand |
|||
|
Dimension |
800*490*1960mm |
|||
