Latest Touch Screen Automatic Spring Torque Tester Torque Testing Machine Manufacturer Disc Coil Spring Torsion Force Tester

Latest Touch Screen Automatic Spring Torque Tester Torque Testing Machine Manufacturer Disc Coil Spring Torsion Force Tester photo-1

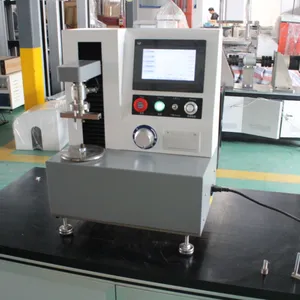

Latest Touch Screen Automatic Spring Torque Tester Torque Testing Machine Manufacturer Disc Coil Spring Torsion Force Tester photo-2

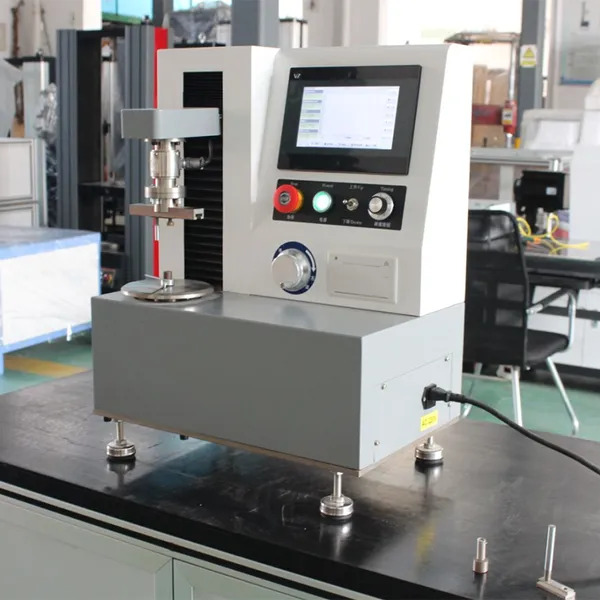

Latest Touch Screen Automatic Spring Torque Tester Torque Testing Machine Manufacturer Disc Coil Spring Torsion Force Tester photo-3

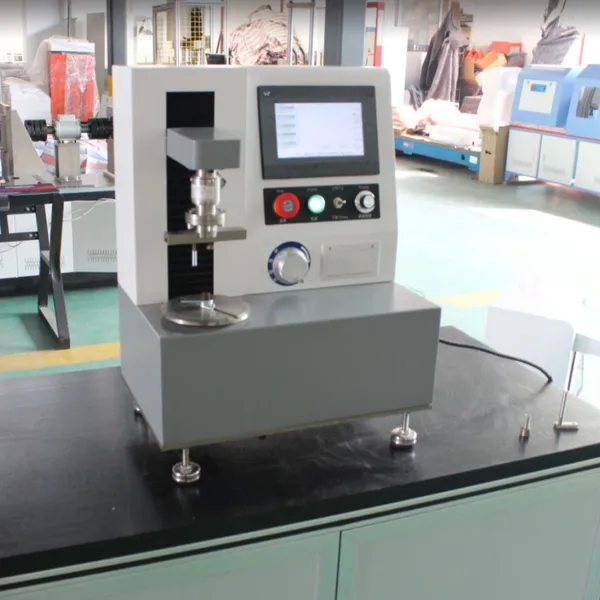

Latest Touch Screen Automatic Spring Torque Tester Torque Testing Machine Manufacturer Disc Coil Spring Torsion Force Tester photo-4

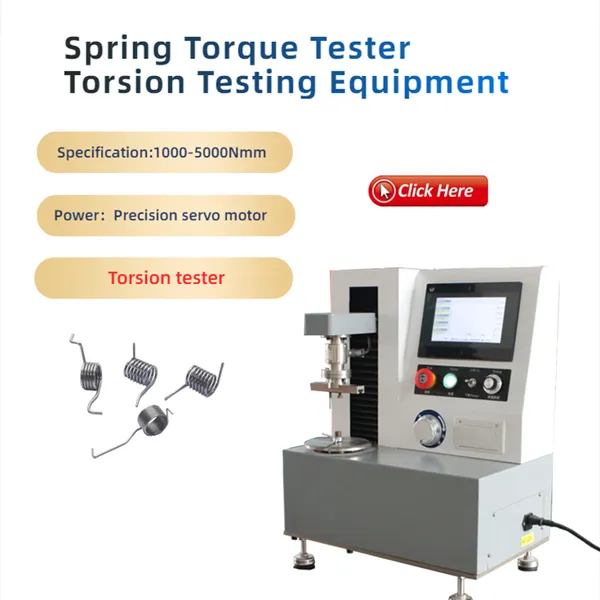

Latest Touch Screen Automatic Spring Torque Tester Torque Testing Machine Manufacturer Disc Coil Spring Torsion Force Tester photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2010
Factory Size:
1,000-3,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao,shanghai,tianjin
Delivery Detail:
15 days

Latest Touch Screen Automatic Spring Torque Tester Torque Testing Machine Manufacturer Disc Coil Spring Torsion Force Tester

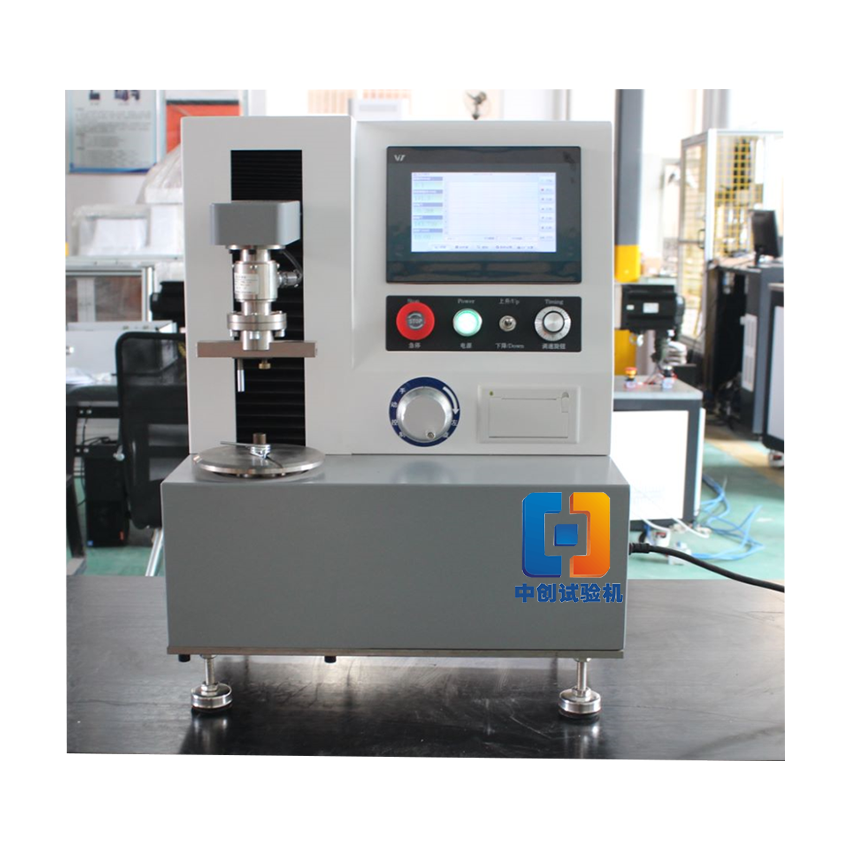

spring torsion

ZCTZ series is a new type of automatic spring torsion testing machine developed by our factory. It is mainly used for testing the torsion angle and torsional moment of torsion spring, spiral spring, elastic element and friction mechanism. It can measure the corresponding torque at a certain twist angle, and can also measure the corresponding twist angle at a certain torque.

Specification (Nmm)

50

100-500

1000-5000

Torque resolution (Nmm)

0.001

0.01

0.1

Power

precision servo motor

Transmission structure

Reducer

Control unit

Micro control system, industrial LCD

Data processing

Automatic acquisition, processing, can save, query, print

Torque zero relative error

±0.1%

Torque indication relative error

±0.5%

Torque indication repeatability relative error

±2%

Twist angle resolution (°)

0.1

Torsion angle indication error (°)

±1%

Upper and lower twist plate height (mm)

120

Torsional disk diameter (mm)

135

Size (mm)

520*300*480

Net weight (kg)

26

Power supply

AC 220V±10% 50Hz


Product Tags: Torsion Testing Machine , torsion spring test , Spring testing machine
