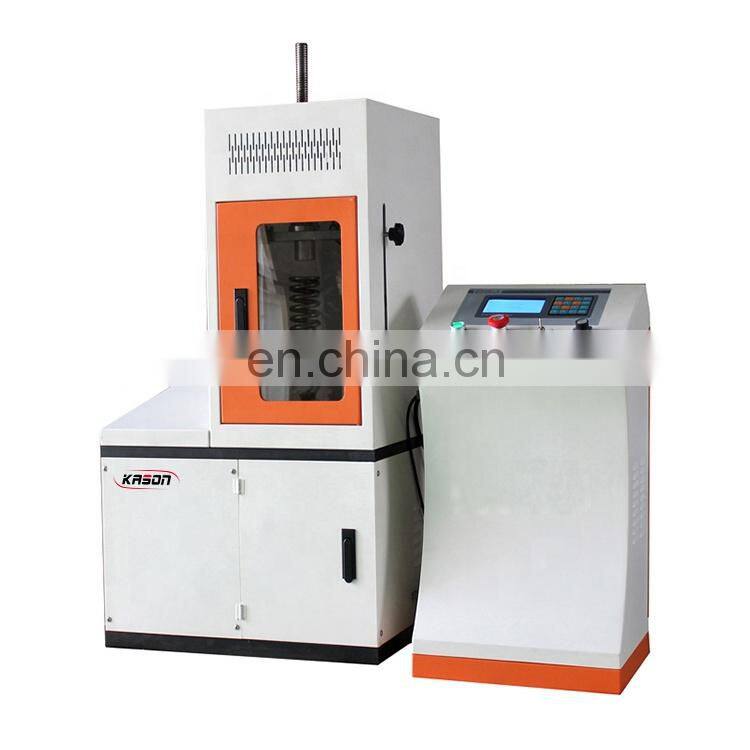

Help CenterWDW-30 30KN Tensile Testing Machine/spring Fatigue Tension Tester
Related Products
-
WDW-05 5KN Gypsum Board/plasterboard Flexing Universal Testing MachineNegotiableMOQ: 1 -
WDW-100 100KN Universal Electronic Tensile Testing Machine, UTM 10 TONUS$ 3500 - 5700MOQ: 1 Set
-
WDW-10 WDW-100 10ton 1ton 100ton Tensile Testing Machine Universal Testing MachineUS$ 38488.45MOQ: 4 Sets
-
WDW-10 Wire Rope Electronic Universal Tensile Test Machine/ Load Measuring InstrumentsNegotiableMOQ: 1
-
WDW-30E Computer Control 30kn Plastic Tensile Testing Machine PriceNegotiableMOQ: 1

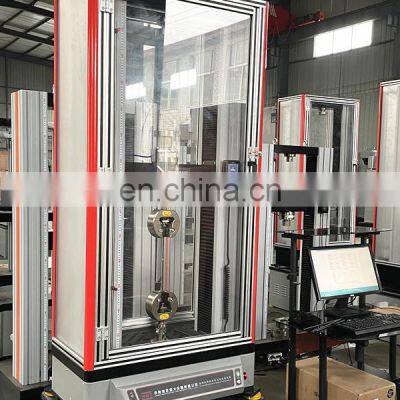

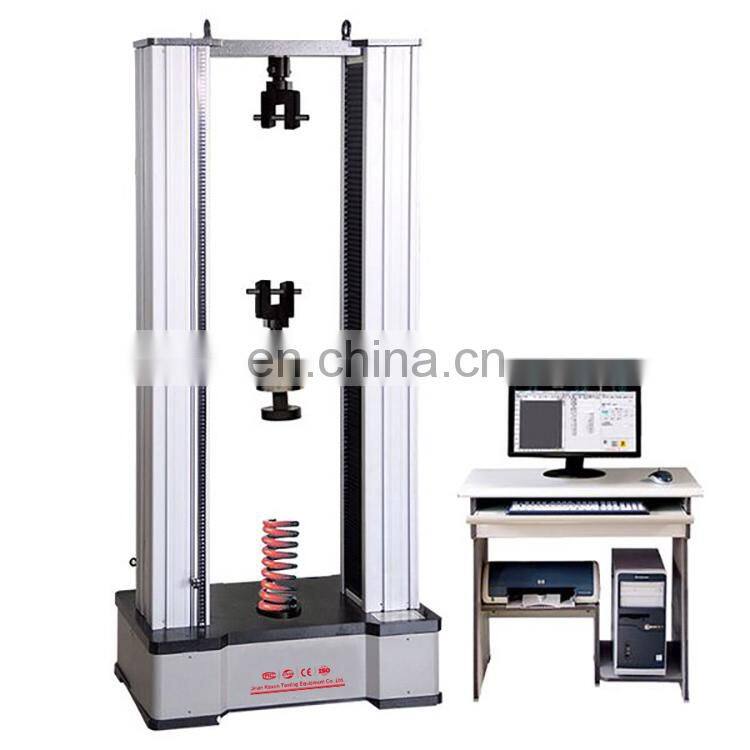

tensile testing machine/Digital spring tension tester

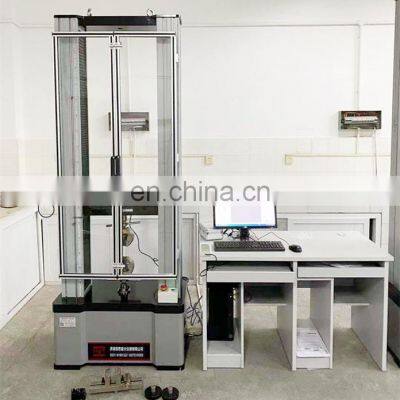

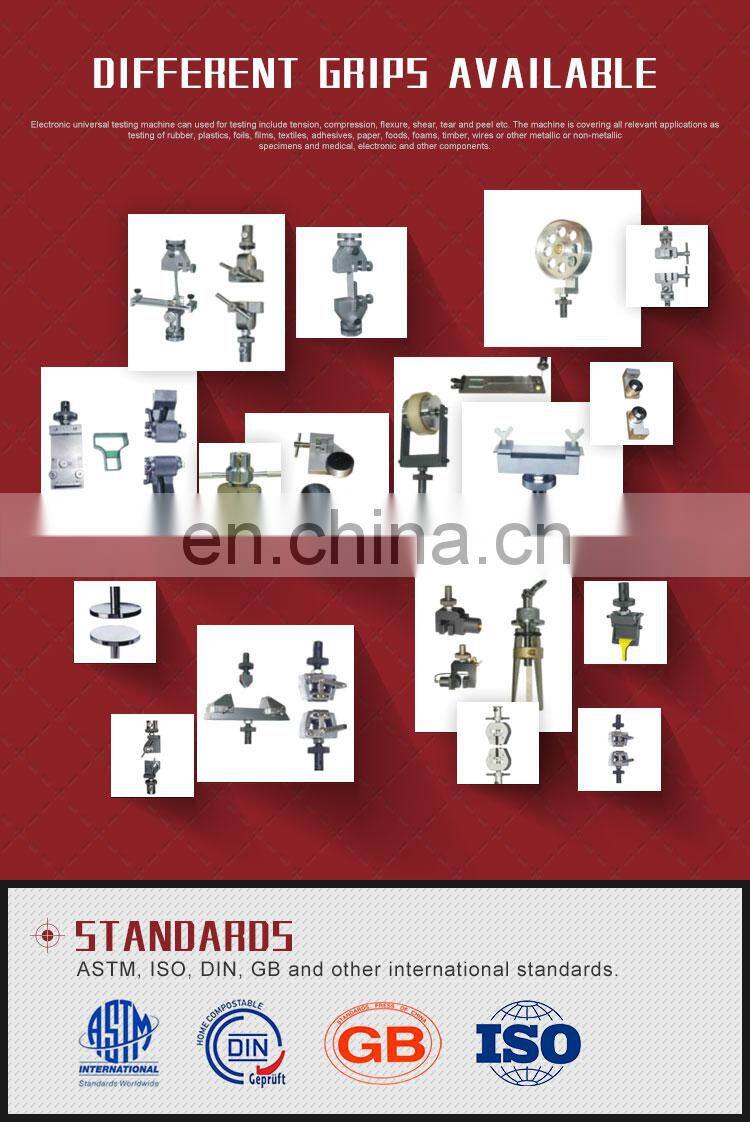

WDS series digital display electronic universal testing machines and WDW computer control universal testing machines are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards.
Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Main Unit Feature:
1). Adopt floor structure,High Stiffness, lower for tensile, upper for compression,upper for tensile, lower for compression, double space. The beam is step less lifting.
2). Adopting ball screw drive, realize no clearance transmission,make sure the precision control of the test force and deformation speed.
3). The shiel plate with limit mechanism used to control the beam moving range, in order to avoid sensor damaged due to the moving distance is too large.
4).The table, moving beams is made of high quality precision machining steel plate , not only
reduce the vibration generated by specimen fracture, but also improve the stiffness.
5). Three columns of mandatory orientation, make the main unit rigidity much improved, to further ensure the repeatability of measurement.
6). Adopt bolt type grip installation, make the grip replace easier.
7). Adopt AC servo driver and AC servo motor, with stable performance,more reliable. Have over-current, over-voltage, over speed, overload protection device.

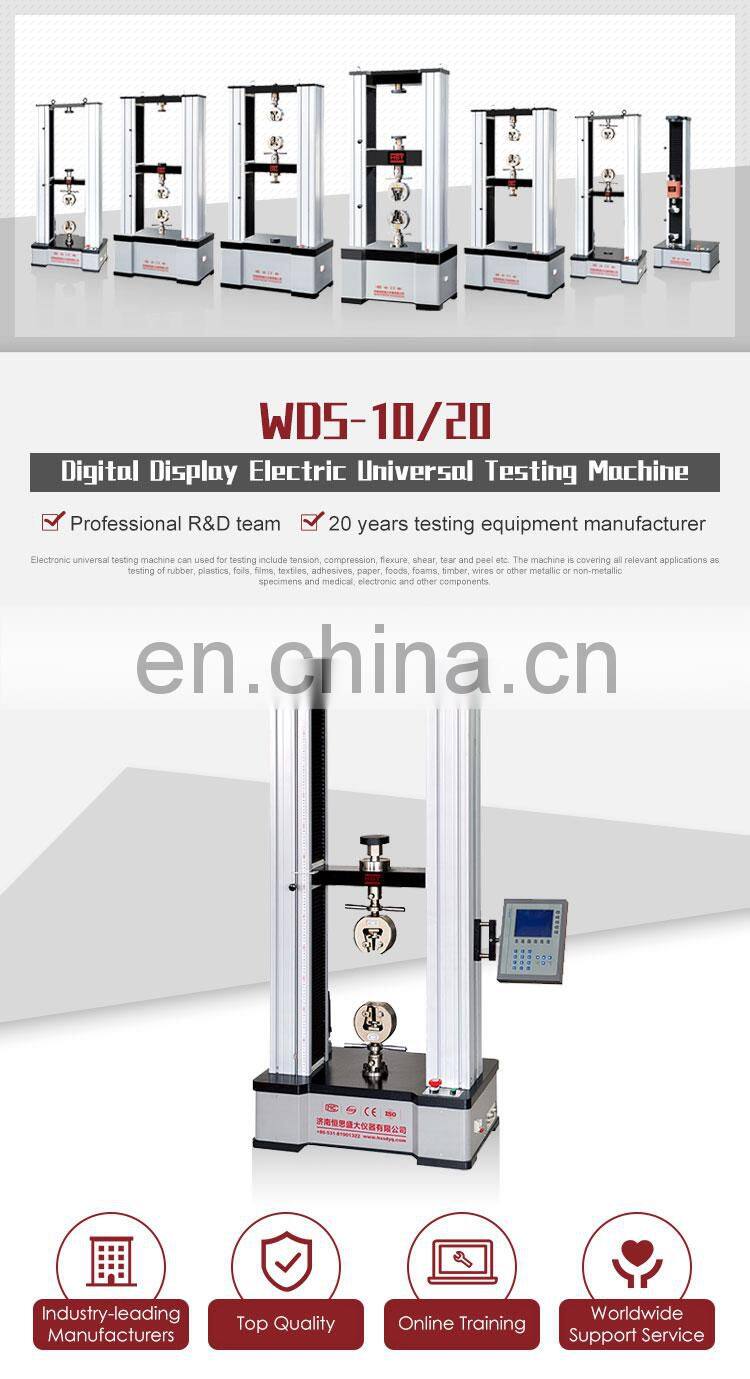

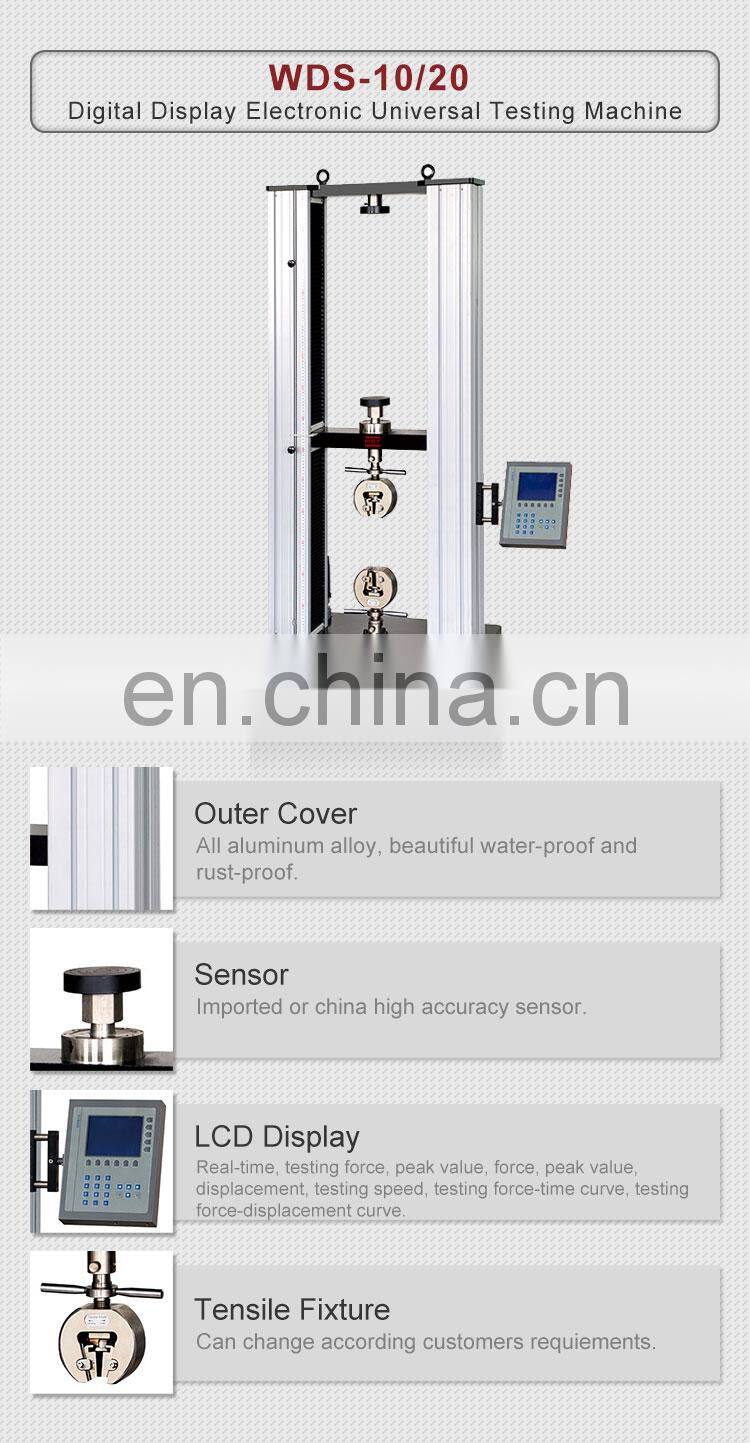

Digital display control universal Testing machine specification :
|
Model |
WDS-02, WDS-05, |
WDS-1, WDS-5 |
WDS-10 WDS-20 |
WDS-50 WDS-100 |
WDS-200 WDS-300 |
|||
|
Max. Load (KN)
|
0.2 or 0.5 |
1 or 5 |
10 or 20 |
50 or 100 |
200 or 300 |
|||
|
Control Method
|
Single Chip Control |
|||||||
|
Load Accuracy
|
±1% |
|||||||
|
Load Range
|
2%~100% of Full Scale |
|||||||
|
Relative Error of Reading
|
≤±0.5% |
|||||||
|
Relative Error of Speed
|
≤±1% |
|||||||
|
Resolution of Displacement
|
0.01mm |
|||||||
|
Control Speed (mm/min) |
0.005-500(mm/min) |
0.005-200 (mm/min) |
||||||
|
Tensile Test Space
|
650mm |
|||||||
|
Compression Test Space
|
650mm |
|||||||
|
Grips
|
Manual Grip or Hydraulic Automatic Grip (Optional) |
|||||||
|
Power Supply
|
AC110V / 220V / 380V±10%, 50HZ-60HZ |
|||||||
|
|
|
|

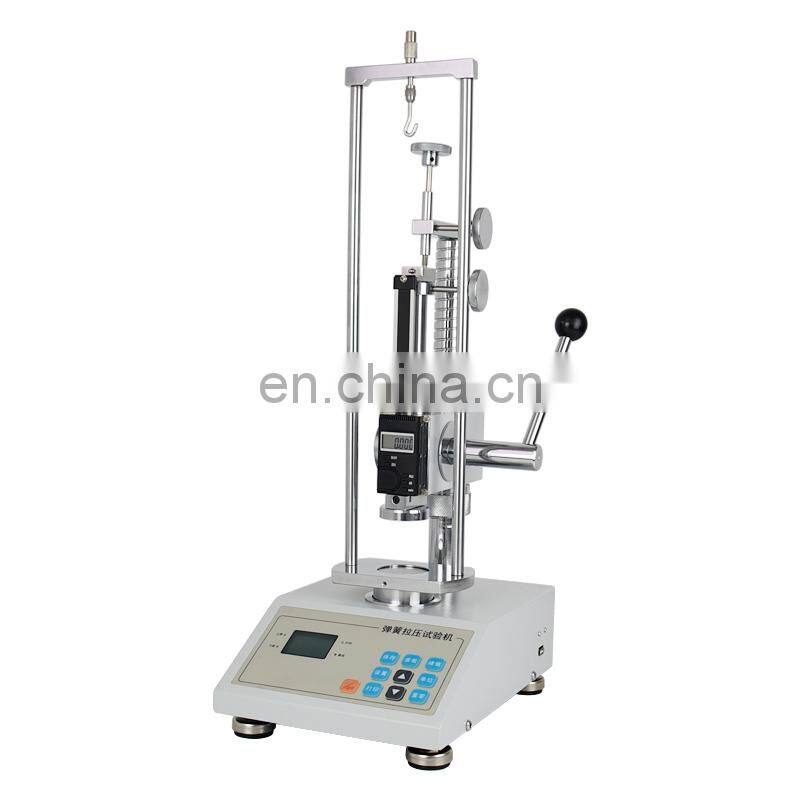

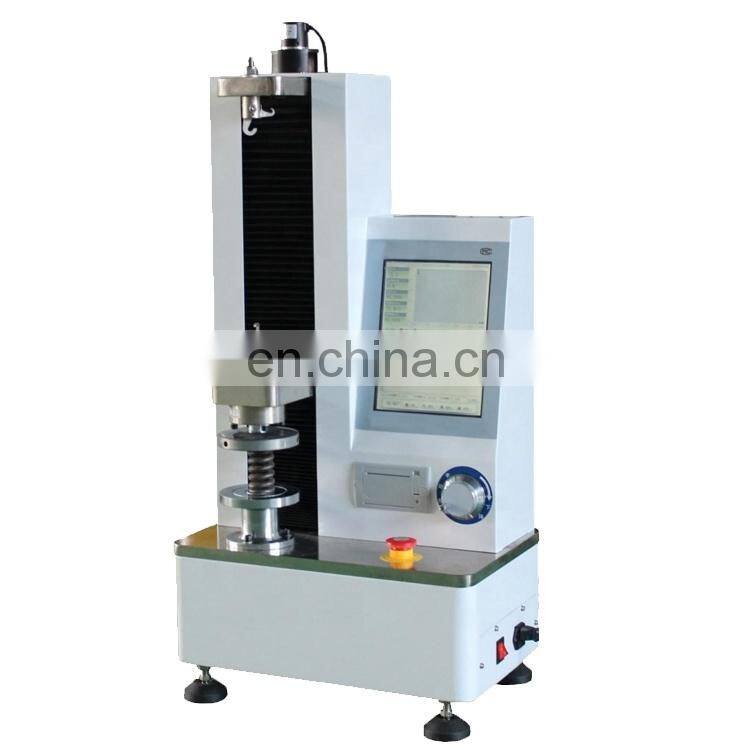

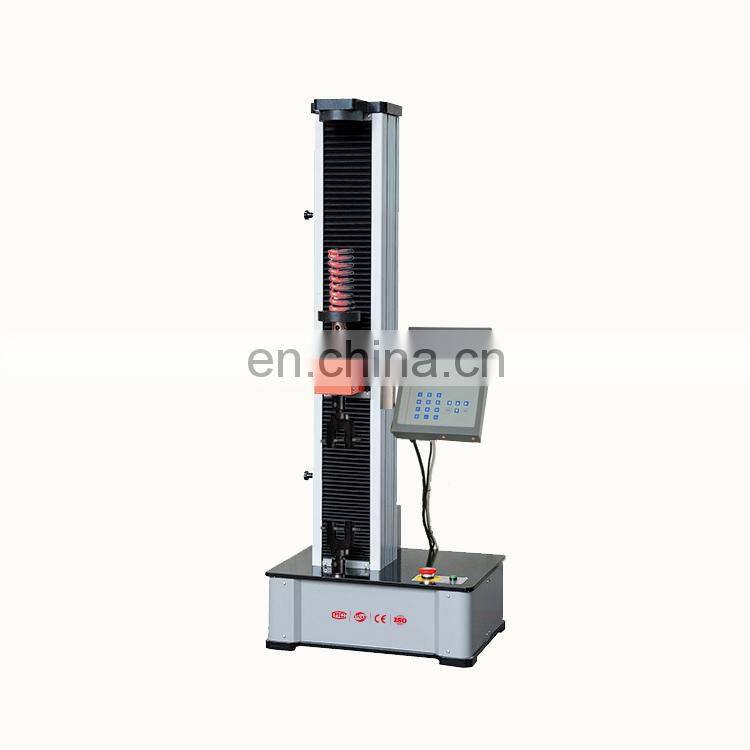

| 10N-10KN Touch scree spring tension compression tester | 10N-5KN Digital display spring tension compression tester | 10N-5KN Digital display spring tension compression tester |
|
|
|
|

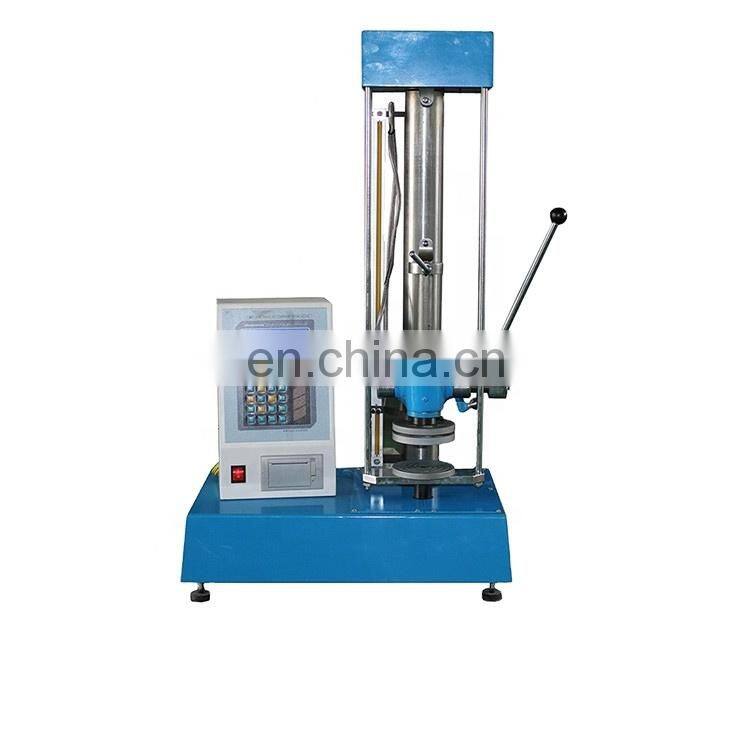

| 20N-5KN Digital display spring tension compression testing machine | 10-100kn spring tension compression testing machine | Spring fatigue tester |
|
|
|

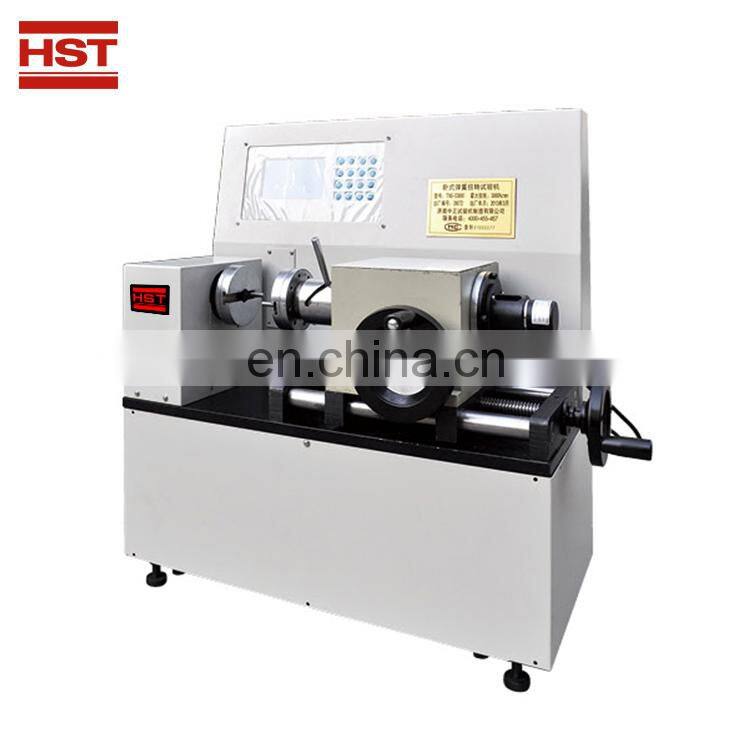

| Spring torsion tester | Spring fatigue tester | Spring torsion testing machine |
