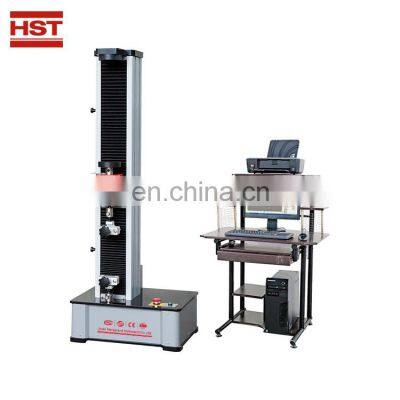

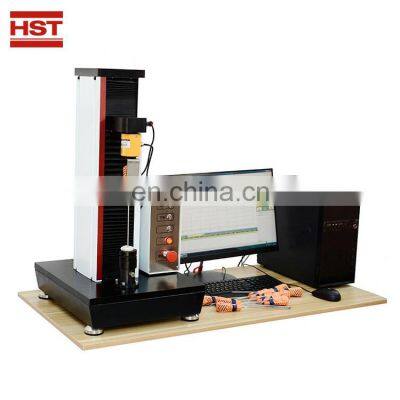

gypsum board/plasterboard flexing universal testing machine
WDW series computer electronic universal testing machines are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards.
Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc
Computer control universal Testing machine specification :
|
Model |
WDW-10 WDW-20 |
WDW-30 WDW-50 |
WDW-100 |
WDW-200 WDW-300 |
WDW-500 WDW-600 |
||
|
Max. Load (KN)
|
10 or 20 |
30 or 50 |
100KN |
200 or 300 |
500 or 600 |
||
|
Control Method
|
Computer Automatic Control |
||||||
|
Load Accuracy
|
±1% or ±0.5% |
||||||
|
Load Range
|
2%~100% Full Scale or 0.4%-100% Full Scale |
||||||
|
Resolution of load
|
1/300000 of full scale |
||||||
|
Measuring Range Of Deformation |
2%~100% |
||||||
|
Accuracy measure Of Deformation |
±1% or ±0.5% |
||||||
|
Relative Error of Speed
|
≤±1% |
||||||
|
Resolution of Displacement
|
0.001mm |
||||||
|
Control Speed (mm/min)
|
0.005-500(mm/min) |
0.005-200(mm/min) |
|||||
|
Tensile Test Space
|
650mm |
||||||
|
Compression Test Space
|
650mm |
||||||
|
Test Width
|
400mm |
450mm |
550mm |
650mm |
|||
|
Grips
|
Manual Grip or Hydraulic Automatic Grip (Optional) |
||||||
|
Load Cell Configuration
|
One(Max Load), more load cells can be added according to customer requirement. |
||||||
|
Extend Configuration
|
Large deformation extensometer, high or low temperature test chamber, high temperature oven. |
||||||
|
Power Supply
|
AC110V / 220V / 380V±10%, 50HZ-60HZ |
||||||
