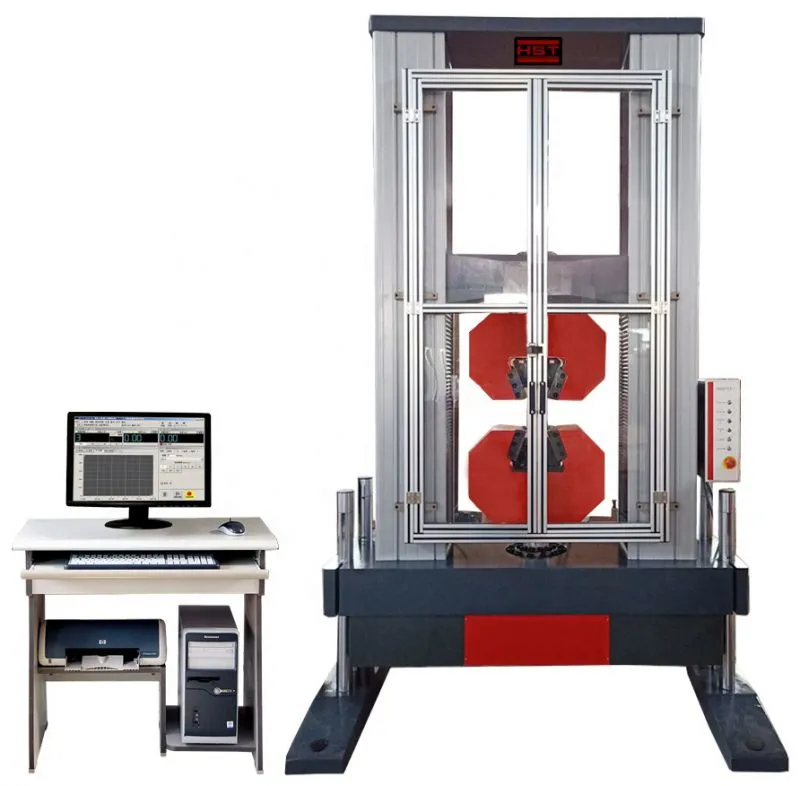

WDW-500E/600E 500kn 600kn electronic Universal testing machine UTM
Main Unit Feature:
1. Application
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2. Standards
1 The main frame is designed with high rigidity ,the overall is simple and clear;
2 The working height is adjustable and easy for the experimenter to operate;
3 High-performance helical gear reducer with large load, low noise, low temperature rise, high reliability and long life use.
4 Innovative integrated design controller, directly placed on the host side, built-in electrical components, control boards, etc.,

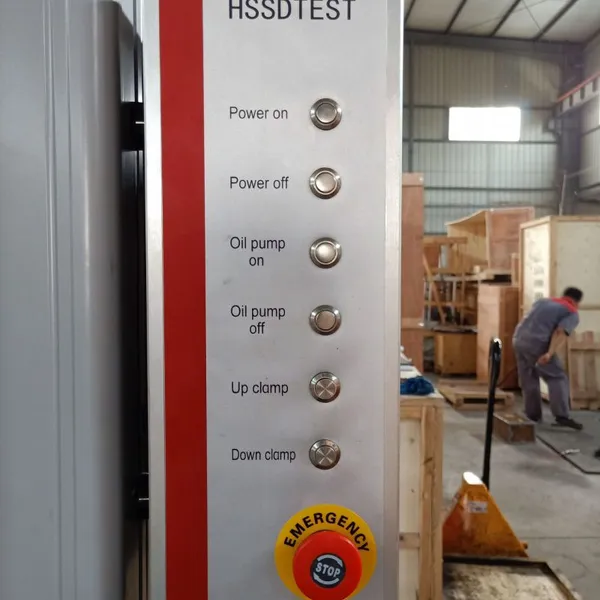

5 The controller panel is equipped with electrical buttons, easy to operate.6 The coaxial beam is mounted on the middle beam to ensure the coaxiality of the upper and lower clamps.
|
Model |
WDW-500E/WDW-600E |
|
Max. Load(kN) |
500/600 |
|
Load accuracy |
Class 0.5 |
|
Load range |
0.2%~100%F·S |
|
Load resolution |
1/300000 |
|
Resolution of deformation |
0.04um |
|
Accuracy of displacement |
Within±0.5%of indicating load |
|
Resolution of displacement |
0.01mm |
|
Test speed(mm/min) |
0.05-200 stepless arbitrary setting |
|
Within ±0.5% of set speed |
|
|
E-Tensile space(mm) |
1000 (can be customized) |
|
E-Compression space(mm) |
850 (can be customized) |
|
D-Test width(mm) |
800 (can be customized) |
|
F-Beam travel distance(mm) |
1150 |
|
H-Workbench thickness(mm) |
108 |
|
I-Base height(mm) |
540-970 adjustable |
|
Power supply |
AC380V/220V±10%,50Hz/60Hz (can be customized) |
|
Weight(KG) |
4300 |
