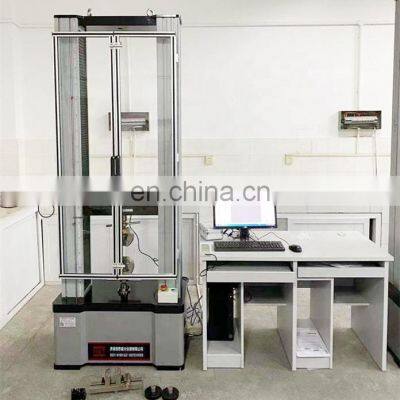

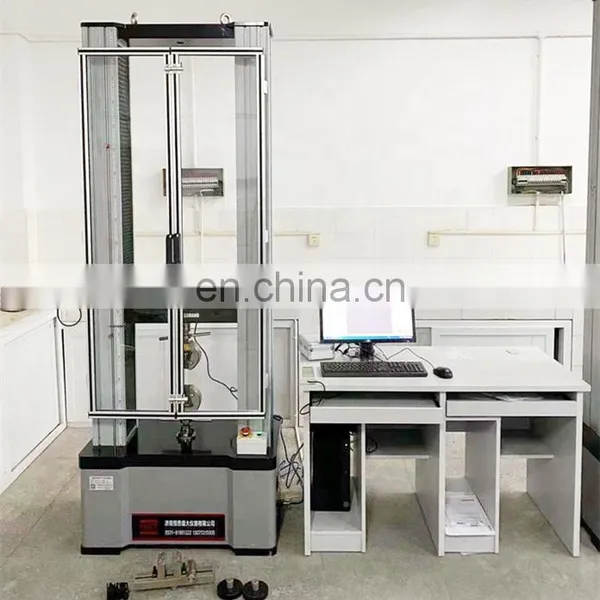

Computer Control Automatic Computer tensile testing machine WDW-50
Contact: Alice Zhang Skype: hssdtest What's APP / TEL: +86-15098778967
Application:
WDW series electronic tensile tester is suitable for wide range of material for tensile, compression, bending, split, cut, torn, punctured, burst, yield strength, elongation, nonproportional
strength, modulus of elasticity, and other parameters.
Test Material:
It is for metal, rubber, plastic, spring, textile, rope, glass and other composite materials testing.
It applies to aerospace industry, engineering inspection, university and college, iron and steel industry , research institution and other fields.Computer automatic control machine rise,
fall, test and stop etc. Easy operation, stable performance.
Technical parameter:
|
Model |
WDW-20 |
WDW-30 |
WDW-50 |
WDW-100 |
WDW-200/ 300 |
WDW-500/ 600 |
|||
|
Max. Load |
20kN |
30KN |
50KN |
100kN |
200kN |
300kN |
500kN |
600kN |
|
|
Structure |
Four-column Floor Type (upper is compression and lower is tensile) |
||||||||
|
Control model |
Constant stress, constant strain,constant displacement closedloop control System |
||||||||
|
Load accuracy |
1 class/ 0.5 class optional |
||||||||
|
Load range |
2%-100% of full scale /0.4%-100% optional |
||||||||
|
Load resolution |
1/300000 |
||||||||
|
Deformation test range |
2%~100% |
||||||||
|
Deformation accuracy |
≤±1% |
||||||||
|
Displacement accuracy |
≤±1% |
||||||||
|
Disp. resolution |
0.04um |
||||||||
|
Displacement speed |
0.05-500mm/min |
0.05-200mm/min |
|||||||
|
Tensile space |
600mm |
700mm |
550mm |
700mm |
|||||
|
Compression space |
600mm |
700mm |
550mm |
700mm |
|||||
|
Test width |
400mm |
450mm |
600mm |
650mm |
|||||
|
Clamp way |
Manual clamp / Hydraulic clamp (optional) |
Hydraulic clamp |
|||||||
|
Load Cell Configuration |
One(max load), more load cells can be added according to customer requirement |
||||||||
|
Extend configuration |
Large deformation extensometer, high or low temperature teste chamber, high temperature oven |
||||||||
|
Power supply |
AC220/380V±10%,50Hz (can be customized) |
||||||||
Features
1.High accuracy servo motor to control test speed.
2.Ball screw no backlash to guarantee the low noise and high driving efficiency
3.High accuracy load cell to measure the test load
4.High accuracy photoelectric encoder to measure the displacement.
5.Max test software has strong function, it can show test load, displacement, test speed,
test status, and also has the function of peak load holding, peak displacement holding
and self return original position.
6.Thousands of test fixture can be used according to different test request;
7.Compact structure with easy operation.
8.Limit switch and setting in the software to guarantee the safety
