Product Description

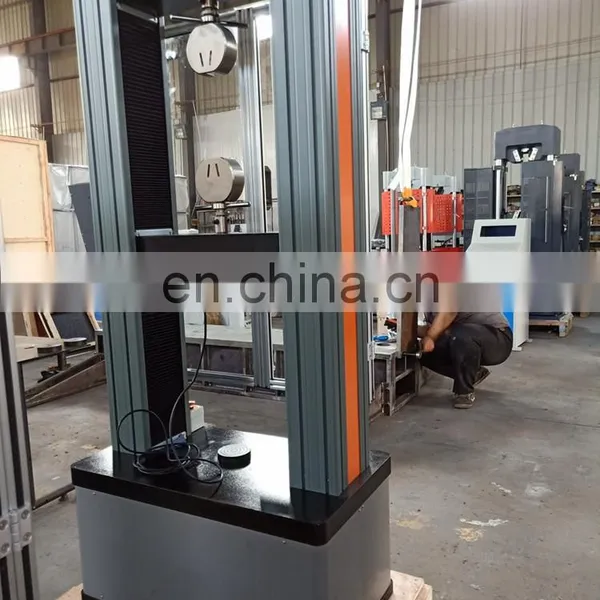

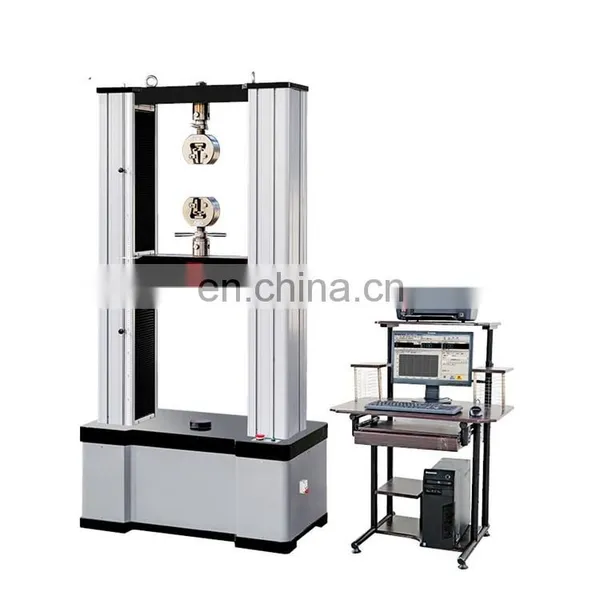

WDW-10 Wire Rope Electronic Universal Tensile Test Machine/ Load Measuring Instruments
1. Overview:
WDW computer control universal testing machine is manufactured according to the GB/T2611-2007 "General requirements for testing machines" and GB/T16491-2008 "Electronic universal testing machines". The computer automatically control the testing machine to rise,fall, test, stop, etc. With good appearance, convenient operation, stable and reliable performance.
2. Application:
This series mainly used for tensile, compression, peal, shear, tear, and bending mechanical property test for metal, non metal material. Widely used in aerospace, petrochemical industry, machinery manufacturing, plastic, rubber, ceramic building materials, metal materials, construction and other industries, and institutions of higher learning, scientific research institutions, technical supervision, Quality Inspection Station and so on.
3.Technical parameters:
|
Model |
WDW-10kN |
WDW-20kN |
WDW-50kN |
WDW-100kN |
WDW-300kN |
|||||
|
Max. Load(kN) |
10 |
20 |
50 |
100 |
300 |
|||||
|
Tensile space(mm) |
800 |
800 |
700 |
700 |
550 |
|||||
|
Compression space(mm) |
800 |
800 |
700 |
700 |
550 |
|||||
|
Effective test width(mm) |
400 |
400 |
500 |
550 |
600 |
|||||
|
Ambient temperature |
+10 ... +35 °C |
|||||||||
|
Conformity |
ISO 9000 and CE |
|||||||||
|
Force transducer |
||||||||||
|
Load accuracy |
Standard |
Class 1, Conforms to EN 10002-2 Grade1, ISO75001-1 Class 1, BS 1610 Class 1, ASTM E4, and JIS B7721 Class 1 |
||||||||
|
High-Precision |
Class 0.5, Conforms to EN 10002-2 Grade0.5, ISO75001-1 Class 0.5, BS 1610 Class 0.5, ASTM E4, and JIS B7721 Class 0.5 |
|||||||||
|
Load range |
2%~100%F·S/ 0.2%~100%F·S |
|||||||||
|
Load resolution |
1/500000 |
|||||||||
|
Displacement transducer |
||||||||||
|
Resolution of deformation |
0.04um |
|||||||||
|
Accuracy of displacement |
Within±0.5%of indicating load |
|||||||||
|
Resolution of displacement |
0.01mm |
|||||||||
|
Drive system |
||||||||||
|
Motor |
AC servo-motor |
|||||||||
|
Test speed(mm/min) Stepless |
0.001-1000 |
0.001-1000 |
0.001-500 |
0.001-500 |
0.001-200/500 |
|||||
|
Speed accuracy |
±0.1% |
|||||||||
|
Power supply |
AC220V±10%,50Hz/60Hz (can be customized) |
|||||||||
