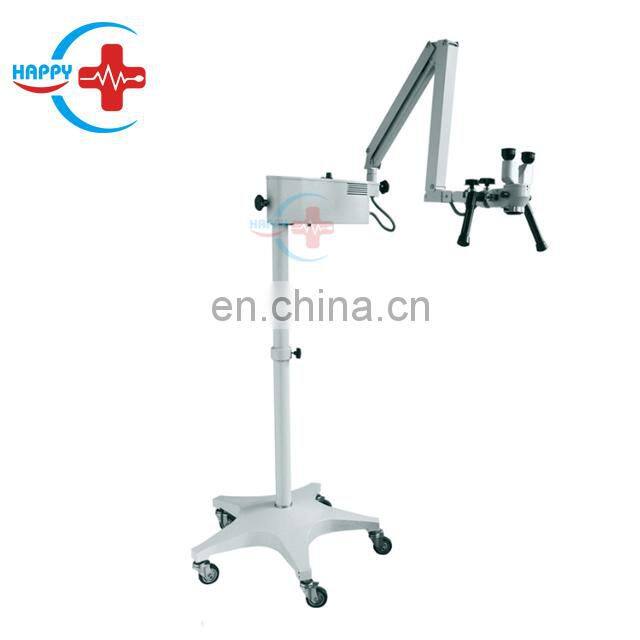

HC-I046B Stand Mobile Operation Microscope Optical Surgical Used in Ophthalmology

 Features :

HC-I048 surgical microscope performance configuration table:

The surgical microscope uses fiber-optic coaxial illumination, has different working distances and magnification, is easy to operate and simple to use, and is widely used in microsurgery in ENT, ophthalmology, dental and surgical departments.

Selection of surgical microscopes and recommendations for selecting objectives:

 About single column and double column: The main difference is high and low.

Double-column: relatively high, large adjustment range, optional when the room is large enough.

Single column: It is optional when the room space is small, the operator is short and the bed can be lowered. First double column.

Applicable objectives: There are four focal lengths (equivalent to the working distance) of 200, 250, 300, 400 mm.

For dentistry: 200 is too close for operation; 400 is too remote for operation. Choose 250 or 300 is better.

General choices: 200 - neurovascular eyes; 250 - dentistry; 300 - gynecology; 400 - internal medicine surgery

Focal length magnification: Small focal length, multiples, and a small focal length.

HC-I048 surgical microscope:

Observation angle: straight

Observation magnification: 6X

Objective focal length: F = 200mm, 250mm, 300mm, 400mm four objectives (optional two)

Zoom system: 0.6X, 1X, 1.6X three gear zoom

Total magnification: 2.4X-12X

Fine adjustment distance: 10mm

Lighting system: cold light fiber coaxial lighting, adjustable brightness

Lights: 21V150W halogen tungsten lamp

Filter: Built-in green, orange filter.

Pictures for HC-I048 Stand Mobile Operation Microscope optical surgical  :
