SIMCOM SIM7600G IoT 4G LTE Module for Global Network, SIM7600 Wireless NB-IoT Module with 2G GSM GPRS Fallback
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- 5G NR Sub-6GHz Bands RG500Q-EA, 5G Module RG500QEAAA-M20-SGASA LTE Cat 20 RG500QEA RG500Q
- 4G LTE Cat3 Module 100Mbp/50Mbps ME909u-521, Europe/Asia Region LTE Wireless RF Communication Module ME909 ME909U-523
- Folksy LLC LTE/HSPA+/WCDMA/EDGE/GPRS Data Module B2B 3RN13
- M2 to USB Board, 4G Module Adapter Board, M.2 to USB Adapter
- 4G Module Adapter, Mini PCIe to USB Development Board, MINI PCIE to USB transfer PCB Test Board
- PCIe to USB Converter Mini PCIe to USB Adapter Development Board 3G LTE 4G Module Testing Board
Product Description
Description
SIM7600G 4G LTE Module
The SIM7600X-PCIE series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600-H series modules. Meanwhile the SIM7600-PCIE series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.
Product Advantages
● Mini-PCIE interface with strong compatibility
● Suitable for LTE, UMTS and GSM networks with global coverage
● Abundant software functions: FOTA, LBS, TLS, VoLTE
● Multi-constellation GNSS receiver support
● AT commands of the SIM7600-PCIE series are compatible with the SIM7500/SIM7600-H series modules
SIM7600A | SIM7600SA | SIM7600E | SIM7600G | SIM7600NA | ||||||
Form Factor | Mini PCIE | Mini PCIE | Mini PCIE | Mini PCIE | Mini PCIE | |||||

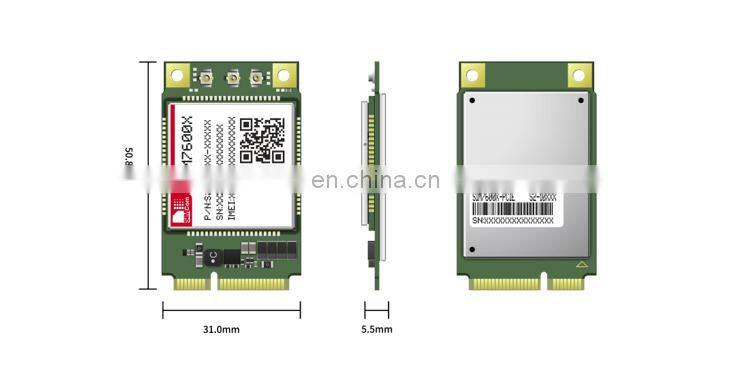

Dimensions(mm) | 50.8*31*5.35 | 50.8*31*5.35 | 50.8*31*5.35 | 50.8*31*5.35 | 50.8*31*5.35 | |||||
Frequency Bands | ||||||||||
LTE-FDD | B2/B4/B12 | B1/B2/B3/B4/B5/B7/B8/B28/B66 | B1/B3/B5/B7/B8/B20 | B1/B2/B3/B4/B5/ B7/B8/B12/B13/B18/ B19/B20/B25/B26/ B28/B66 | B2/B4/B5/B12/B13/ B14/B25/B26/B66/B71 | |||||
LTE-TDD | B40 | B38/B40/B41 | B34/B38/B39/B40/B41 | B41 | ||||||
WCDMA | B2/B5 | B1/B2/B5/B8 | B1/B5/B8 | B1/B2/B4/B5/B6/B8/B19 | ||||||
GSM | 850/900/1800/1900MHz | 900/1800MHz | 850/900/1800/1900MHz | |||||||
GNSS | o | o | o | o | o | |||||
Temperature | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ | |||||
Electrical Features | ||||||||||
Supply Voltage(V) | 3.0~ 3.3 | 3.0~ 3.3 | 3.0~ 3.3 | 3.0~ 3.3 | 3.0~ 3.3 | |||||
Power Consumption (mA) | ||||||||||
LTE | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | |||||
WCDMA, DRX=9 | 3.3 | 3.3 | 3.3 | 3.3 | ||||||
GSM,BS_PA_MFRMS=2 | 2.8 | 2.8 | 2.8 | 2.8 | ||||||
Data Transfer | ||||||||||
LTE(Mbps) | 10(DL)/5(UL) | 10(DL)/5(UL) | 10(DL)/5(UL) | 10(DL)/5(UL) | 10(DL)/5(UL) | |||||
HSPA+(Mbps) | 42(DL)/5.76(UL) | 42(DL)/5.76(UL) | 42(DL)/5.76(UL) | 42(DL)/5.76(UL) | ||||||
WCDMA(Kbps) | 384(DL)/384(UL) | 384(DL)/384(UL) | 384(DL)/384(UL) | 384(DL)/384(UL) | ||||||
GPRS/EDGE(Kbps) | 236.8(DL)/236.8(UL) | 236.8(DL)/236.8(UL) | 236.8(DL)/236.8(UL) | |||||||
Software Features | ||||||||||
Protocol | TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNS | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNS | |||||
TLS | ● | ● | ● | ● | ● | |||||
File System | ● | ● | ● | ● | ● | |||||
Audio Record/Play | o | o | o | o | o | |||||
TTS | o | o | o | o | o | |||||
DTMF | o | o | o | o | o | |||||
LBS | ● | ● | ● | ● | ● | |||||
FOTA | ● | ● | ● | ● | ● | |||||
Jamming Detection | ● | ● | ● | ● | ● | |||||
Android RIL | Android 5.0/6.0/7.0/8.0/9.0 | Android 5.0/6.0/7.0/8.0/9.0 | Android 5.0/6.0/7.0/8.0/9.0 | Android 5.0/6.0/7.0/8.0/9.0 | Android 5.0/6.0/7.0/8.0/9.0 | |||||
USB Driver | Microsoft Windows 7/8/10 Linux/Android | Microsoft Windows 7/8/10 Linux/Android | Microsoft Windows 7/8/10 Linux/Android | Microsoft Windows 7/8/10 Linux/Android | Microsoft Windows 7/8/10 Linux/Android | |||||
WWAN (RNDIS) | ● | ● | ● | ● | ● | |||||
ECM | ● | ● | ● | ● | ● | |||||
MBIM | Win8/Win10 | Win8/Win10 | Win8/Win10 | Win8/Win10 | Win8/Win10 | |||||
NDIS | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | |||||
Firmware Upgrade | USB/FOTA | USB/FOTA | USB/FOTA | USB/FOTA | USB/FOTA | |||||
Interfaces | ||||||||||
SIM Card | 1.8V/3.0V | 1.8V/3.0V | 1.8V/3.0V | 1.8V/3.0V | 1.8V/3.0V | |||||
UART | ● | ● | ● | ● | ● | |||||
USB | ● | ● | ● | ● | ● | |||||
PCM | o | o | o | o | o | |||||
Analog Audio | o | o | o | o | o | |||||
Embedded SIM card socket | o | o | o | o | o | |||||
I2C | ● | ● | ● | ● | ● | |||||
Diversity Receiver | ● | ● | ● | ● | ● | |||||
Certification | ||||||||||
Regulatory | FCC/PTCRB/IC/ RoHS/ REACH | CE-RED/ACMA/FCC/ RoHS/REACH/Anatel | CE-RED/RoHS/REACH/ IMDA/GCF | CE-RED/RCM*/FCC/IC/PTCRB*/ GCF*/RoHS*/REACH* | FCC*/IC*/PTCRB*/ GCF*/RoHS*/REACH* | |||||
Carrier | AT&T/Rogers | Telstra | Deutsche Telekom /Vodafone | AT&T*/Verizon* | AT&T*/Verizon*/Sprint*/T-mobile* | |||||
●: support o: optional * : on going |
