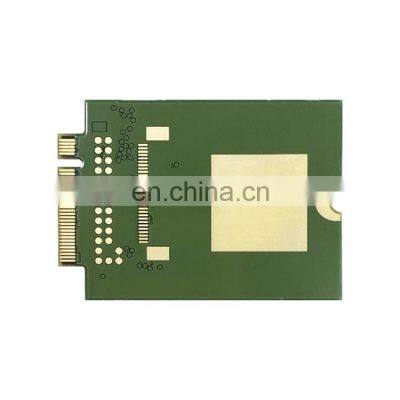

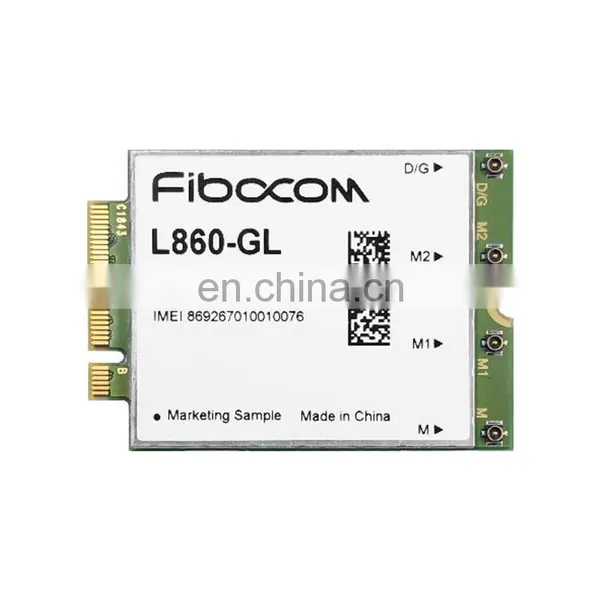

L860-GL 4G LTE Cat16 Module for Global M2 Form Factor
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GNSS L86 MT3333 Chipset Low Power Compact GPS Module LCC Package Integrated Antenna MT3333 SolutionNegotiableMOQ: 1 -
Wireless GSM/GPRS Module Telit G24NegotiableMOQ: 1
-
TC35I/MC39I/TC35/MC35I GSM/GPRS MODULENegotiableMOQ: 1
-
Original Quad-band 850/900/1800/1900 MHz MC55I MC55I-W GSM ModuleNegotiableMOQ: 1
-
Wireless GSM Module HC25NegotiableMOQ: 1
Description
L860-GL
Air Interface: 4G, 3G
Region: Global
Key feature
● LTE, WCDMA
● Cat16
● M.2 30x42
● Windows, Linux
Overview
The Fibocom's L860-GL is a multimode LTE & WCDMA module that provides Gigabit LTE speed, unleashing the potential of cellular technology to meet high speed bandwidth application demand.
With a rich selection of the frequency bands, L860-GL provides global mobile network coverage to facilitate product with one SKU, reduces complexity in end product configuration. The L860-GL supports LTE network with up to 1Gbps on the downlink and 75Mbps on the uplink. It also provides fallback to WCDMA network.

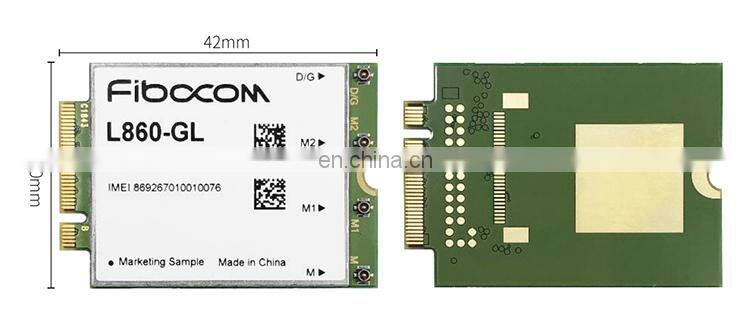

The L860-GL is designed with the M.2 30*42 form factor which is ideally suited for integration with Personal Computer (Laptop, Desktop, Tablet, etc.), IoT Gateway and Routers that run Windows and Linux OS.
Product Features |
||
LTE FDD |
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B66 |
|
LTE TDD |
B38, B39, B40, B41, B42* |
|
WCDMA |
B1, B2, B4, B5, B8 |
|
DL5CAon 4 bands, DL 256QAM support |
||
DL-MIMO: 2*2, 4*2, 4*4 |
||
DL4x4MIMO |
B1, B2, B3, B4, B7, B30, B40, B41*, B66 |
|
LAA(Band46） |
||
Integrated GPS, GLONASS, Galileo, BDS |
||
Body SAR |
||
Antenna Tuner |
||
eSIM Support |
||
DSSA (Dual SIM Singla Active) |
||
Maximum Transmitting Power |
LTE: 23dBm |
|
WCDMA:23.5dBm |
||
Receiver Sensitivity |
LTE: -98dBm ~ -103.5dBm |
|
WCDMA: -110dBm ~ -111.4dBm |
||
Operating Voltage |
3.135V~ 4.4V, Typical 3.3V |
|
Normal operating temperature |
-10°C～+55°C |
|
Extended operating temperature |
-20°C～+65°C |
|
Storage Temperature |
-40°C~ +85° |
|
Foam Factor |
M.2 S3 Key-B |
|
Size |
30*42*2.3mm |
|
Data |
||
Downlink |
LTE: 1Gbps (Cat16) |
|
UMTS: 384Kbps |
||
DC-HSPA+: 42Mbps (Cat24) |
||
Uplink |
LTE: 75Mbps (Cat5) |
|
UMTS: 384Kbps |
||
DC-HSPA+: 5.76Mbps (Cat6) |
||
Interfaces |
||
USIM |
x 2 |
|
PCIe Gen.2 |
||
Operating System |
||
Operating System |
Win10 & Linux |
|
*=Planning |
||
