SIMCOM Gsm Gprs SIM900B Compatible With the Gps Wifi Module-SIM300/340 and SIM340E
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SIMCOM SIM8950 Development Board Android Smart Core Board 4G LTE for Advertising Machine WIFI BT GPS 1080P OutputNegotiableMOQ: 1 -
Multi-band New Original Sim5216e 3g Module Simcom Sim5216NegotiableMOQ: 1
-
Sms Receiver ModuleNegotiableMOQ: 1
-
Q24PL001 Sierra Wavecom Wireless CPU GSM Module Quad-band 850/900/1800/1900 MHzNegotiableMOQ: 1
-
WiFi Module ESP-12F ESP12F ESP 12FNegotiableMOQ: 1
Description

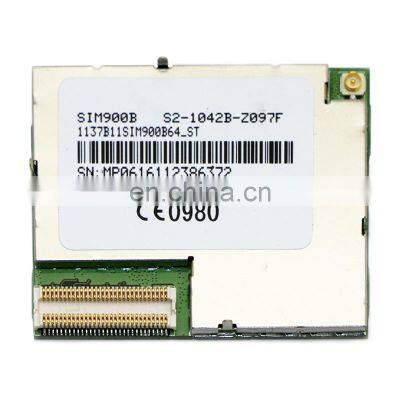

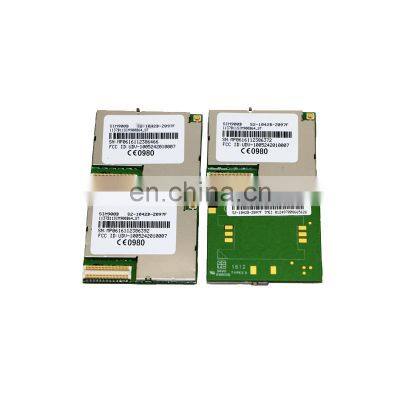

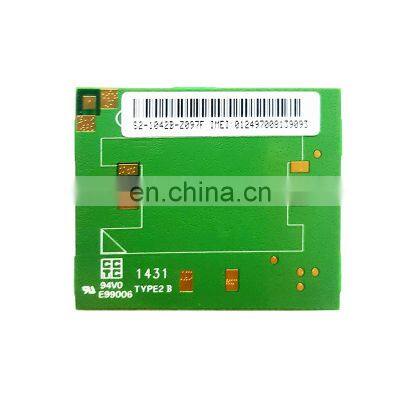

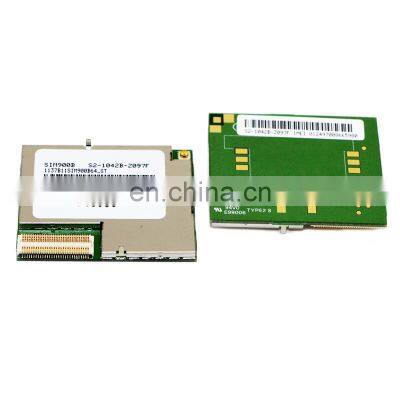

SIMCOM SIM900B, compatible with the module-SIM300/340 and SIM340E
SIMCom presents a compact and reliable wireless module-SIM900B which is compatible with the module-SIM300/340 and SIM340E. This is a complete Quad-band GSM/GPRS module in a B2B type and designed with a very powerful single-chip processor integrating AMR926EJ-S core, allowing you to benefit from small dimensions and cost-effective solutions.
Featuring an industry-standard interface, the SIM900B delivers GSM/GPRS 850/900/1800/1900MHz performance for voice, SMS, Data, and Fax in a small form factor and with low power consumption. SIM900B can fit almost all requirements in your M2M application.
Specifications for Fax
* Group 3, class 1
Interfaces
* 60 PIN Board-to-board connector
* Interface to external SIM 3V/ 1.8V
* Two analog audio interface
* RTC backup
* SPI interface
* Serial interface
* SIM Card
- Option1: SIM holder
- Option2: Embeded SIM
* Keypad
* GPIO
* PWM
* ADC
* Antenna connector
Software features
* 0710 MUX protocol
* embedded TCP/UDP protocol
* FTP/HTTP
Specifications for SMS via GSM/GPRS
* Point to point MO and MT
* SMS cell broadcast
* Text and PDU mode
Specifications for Data
* GPRS class 10: max. 85.6 kbps (downlink)
* PBCCH support
* Coding schemes CS 1, 2, 3, 4
* USSD
* Non transparent mode
* PPP-stack
Compatibility
* AT cellular command interface
Approvals
* CE /FCC /PTCRB /GCF /IC /ICASA /ROHS
Enhanced version add following features
*FOTA
* MMS
* Embedded AT
Specifications for Voice
* Tricodec
– Half rate (HR)
– Full rate (FR)
– Enhanced Full rate (EFR)
* Hands-free operation
(Echo suppression)
* AMR
– Half rate (HR)
– Full rate (FR)
Carrier Approvals
* NCC/Orange/AT&T/Vodafone
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
