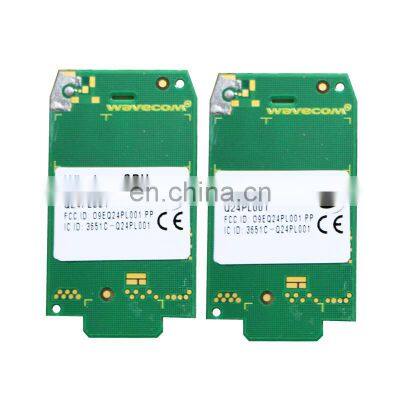

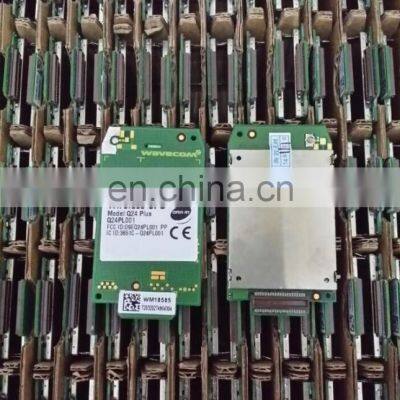

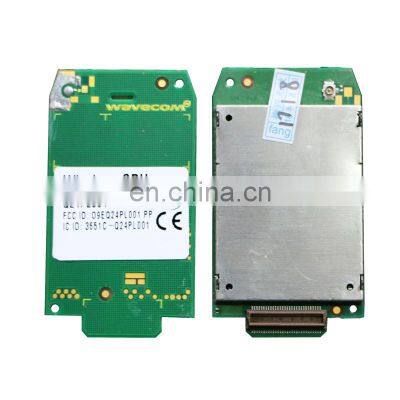

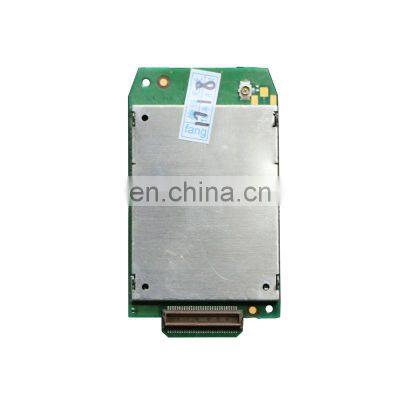

Q24PL001 Sierra Wavecom Wireless CPU GSM Module Quad-band 850/900/1800/1900 MHz
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
WiFi Module ESP-12F ESP12F ESP 12FNegotiableMOQ: 1 -
SIM800A Development Board 2G GPRS GSM ModuleNegotiableMOQ: 1
-
L860-GL 4G LTE Cat16 Module for Global M2 Form FactorNegotiableMOQ: 1
-
GNSS L86 MT3333 Chipset Low Power Compact GPS Module LCC Package Integrated Antenna MT3333 SolutionNegotiableMOQ: 1
-
Wireless GSM/GPRS Module Telit G24NegotiableMOQ: 1
Description
Wavecom Wireless CPU GSM / GPRS Module: Q24 Plus Q24PL001
IN STOCK
Q24PL001 is the smallest programmable wireless CPU on the market. Open AT OS running on the ARM9 core for applications running speed is greater than 16MIPS (using VariSpeed). Q24PL001 equipped with up to 44 GPIO, particularly suitable for applications that require a large number of connections.
Analogue Interfaces
Core processor
ARM7, 32 bit, 52 MHz running Open AT®RTOS as standard
Memory
Internal, 32Mb Flash and up to 16Mb SRAM or PSRAM
Digital Control
11 IOs, 1 INT, 1 SPI, 1 I2C, 5 x 5 keyboard
Digital Comms
2 UART
1 ADC
Audio Interfaces
2 analog differential audio
Cellular Radio
Supporting 850-900-1800-1900MHz GSM band
Cellular Data
GSM standard SMS, Fax, CSD (circuit), GPRS cl 10 (packet)
Cellular Voice
Supported Codecs (FR/EFR/AMR ) (HR as option), VDA2 C
RF and IO connectivity
Multiple RF connections possibility (UFL, MMS, connection which allows to support board to board solution, 60 I/O Pins connector
Dimensions
L58 x W32 x H 3.9mm
1. ARM 946E-S, 32bit, 104MHz, 30MIPS
2. Open AT memory
3. 1.5Mbyte ROM, 512kByte RAM
4. 128byte Objects
5. OS 6.61 version of the
6. OPEN AT 4.1
7. Is compatible with Microsoft Windows Mobile
8 kinds of power mode; Real-time OS
9. More than 350 AT commands and API
10. RTC with calendar
11. File Transfer (FTP)
12. TCP / IP / UDP / DNS
13. 4-band 850/900/1800/1900MHZ
14 GSM CSD 14.4kbps
15. GPRS multi-slot class12, class B
16. I / F Connector: 60pin
17. Power Supply: Rating 3.6vdc-peak 1.7A
18. Temperature: classA-20 ° C to +55 ° C
19. ClassB-35 ° C to +85 ° C
20. ClassA-40 ° C to +85 ° C
21. Automatic temperature shut down
22. Full RF shielding
23. External Dimensions: 58 × 32 × 6 mm
24. Weight: 20g (including shielding)
2. Open AT memory
3. 1.5Mbyte ROM, 512kByte RAM
4. 128byte Objects
5. OS 6.61 version of the
6. OPEN AT 4.1
7. Is compatible with Microsoft Windows Mobile
8 kinds of power mode; Real-time OS
9. More than 350 AT commands and API
10. RTC with calendar
11. File Transfer (FTP)
12. TCP / IP / UDP / DNS
13. 4-band 850/900/1800/1900MHZ
14 GSM CSD 14.4kbps
15. GPRS multi-slot class12, class B
16. I / F Connector: 60pin
17. Power Supply: Rating 3.6vdc-peak 1.7A
18. Temperature: classA-20 ° C to +55 ° C
19. ClassB-35 ° C to +85 ° C
20. ClassA-40 ° C to +85 ° C
21. Automatic temperature shut down
22. Full RF shielding
23. External Dimensions: 58 × 32 × 6 mm
24. Weight: 20g (including shielding)
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
