Multi-band New Original Sim5216e 3g Module Simcom Sim5216
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sms Receiver ModuleNegotiableMOQ: 1 -
Q24PL001 Sierra Wavecom Wireless CPU GSM Module Quad-band 850/900/1800/1900 MHzNegotiableMOQ: 1
-
WiFi Module ESP-12F ESP12F ESP 12FNegotiableMOQ: 1
-
SIM800A Development Board 2G GPRS GSM ModuleNegotiableMOQ: 1
-
L860-GL 4G LTE Cat16 Module for Global M2 Form FactorNegotiableMOQ: 1
Product Description

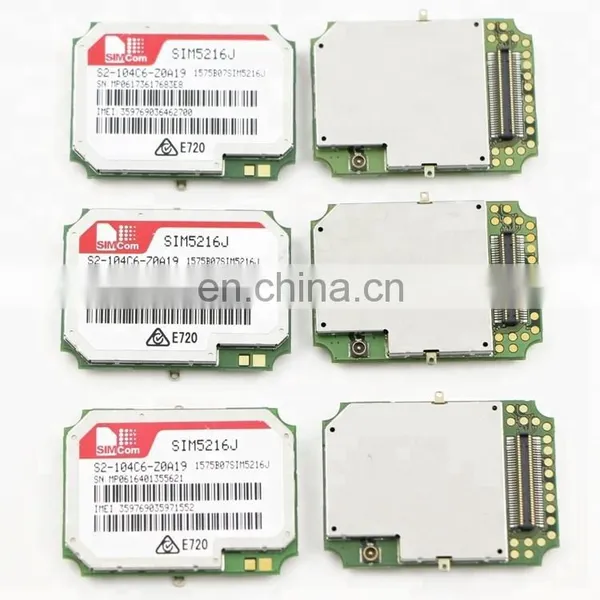

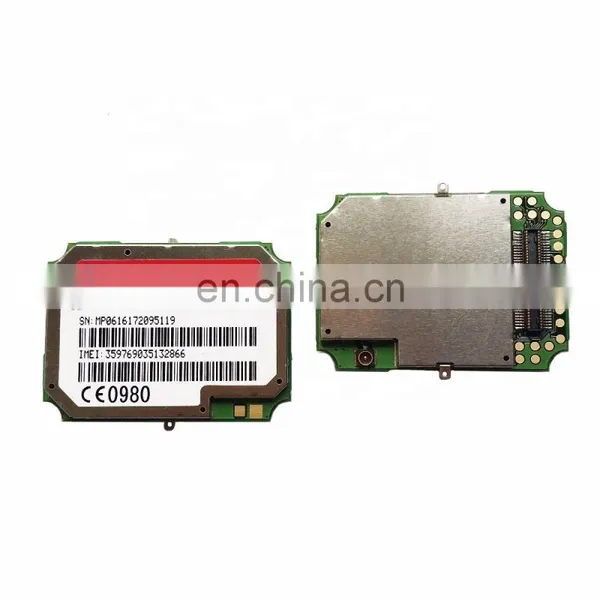

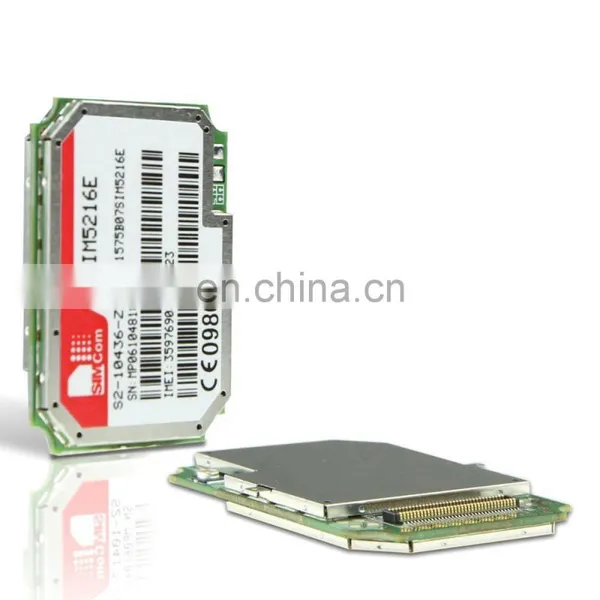

Multi-band New Original Sim5216e 3g Module
• With abundant application capability like embedded LUA script, TCP/UDP/FTP/HTTP/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer's application.
• Its unique camera/video call feature shall add value to security solutions. It is ideal for a wide range of products including AMR, Gateway, Telematics, Tracking solution, Security solution and much more.
General features
* SIM5216A:Dual-Band UMTS/HSDPA 850/1900MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
* SIM5216E:Dual-Band UMTS/HSDPA 900/2100MHz
Tri-Band GSM/GPRS/EDGE 850/900/1800MHz
* GPRS multi-slot class 12
* EDGE multi-slot Class 12
* WCDMA 3GPP release 5
* Output power
- UMTS 1900/850: 0.25W (for SIM5216A)
- UMTS 2100/900: 0.25W (for SIM5216E)
- GSM850/GSM900: 2W
- DCS1800: 1W
- PCS1900: 1W (for SIM5216A)
* Control Via AT Commands
* Supply voltage range: 3.3V~ 4.2V
* Operation temperature: -30 °C to +80 °C
* Dimension: 36mm × 26mm × 4.7mm
* Weight: 7g
Support embedded Script Language
* LUA Script Language
Specifications for Data transfer
* HSDPA - Max.3.6Mbps(DL)
* WCDMA - Max.384Kbps(DL), Max.384Kbps(UL)
* EDGE Class - Max. 236.8Kbps(DL),Max.118Kbps(UL)
* GPRS - Max. 85.6Kbps(DL), Max.42.8Kbps(UL)
* CSD - GSM data rate 14.4Kbps
- WCDMA data rate 57.6Kbps
Specifications for SMS
* Point to point MO and MT
* Text and PDU mode
Specifications for CSD
* Support in GSM and WCDMA
Specifications for Network Identity and Time zone (NITZ)
* Support in GSM and WCDMA
Specifications for video call
* DTMF on H245
* Support standard WCDMA 64kbps(CS) Video call
Other features
* USB Driver for Microsoft Windows 2000/XP/Vista
* USB Driver for Linux 2.6.16
* Firmware update via USB
* MMS
* TCP/IP
* FTP/HTTP/SMTP/POP3
* FOTA
* USB Audio
Interfaces
* USB2.0
* UART
* USIM card
* ADC
* Digital Camera
* GPIO
* I2C
