Product Description

Description

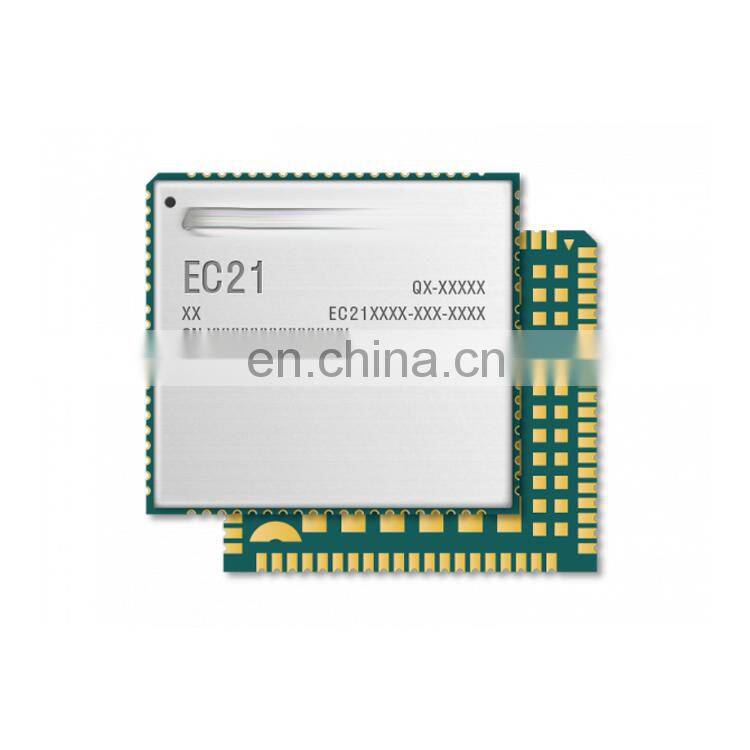

LTE EC21-AU ● LTE category 1 module ● 32.0mm × 29.0mm × 2.4mm ● LCC form factor ● Max. downlink 10Mbps / uplink 5Mbps ● Extended temperature range of -40°C to +85°C

Overview ● The EC21-AU is an LTE category 1 module in an LCC form factor measuring 32.0mm x 29.0mm x 2.4mm, which meets the 3GPP Release 12 standard. The EC21-AU is compatible with UMTS/HSPA+ UC20 and UC200T modules, and multi-mode LTE Standard EC25, EC20 R2.0, EC20 R2.1, EG25-G and EG21-G modules. It is therefore backward-compatible with existing EDGE and GSM/GPRS networks, enabling easy migration between LTE and 2G or 3G. The EC21-AU is optimized for networks in Australia, New Zealand and Latin America. ● The EC21-AU provides cost-effective, low-power LTE connectivity, delivering maximum downlink rates of 10Mbps and uplink rates of 5Mbps under LTE, and multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability. This makes the series ideal for IoT applications which are not reliant on high-speed connectivity but do require the longevity and reliability of LTE networks. ● The EC21-AU supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou and Galileo), and the integrated GNSS greatly simplifies product design, and provides quicker, more accurate and dependable positioning. A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10, Linux, Android and eCall) allow the module to serve a wide range of IoT applications including smart metering, wearable devices, environmental monitoring, asset tracking, fleet management, and security systems.

Key Features ● Compatible with UMTS/HSPA+ UC20 and UC200T modules, and multi-mode LTE Standard EC25, EC20 R2.0, EC20 R2.1, EG25-G and EG21-G modules ● Supports Qualcomm® IZat™ location technology Gen8C Lite ● Supports DFOTA ● Supports DTMF ● Supports MIMO ● Multi-constellation GNSS receiver

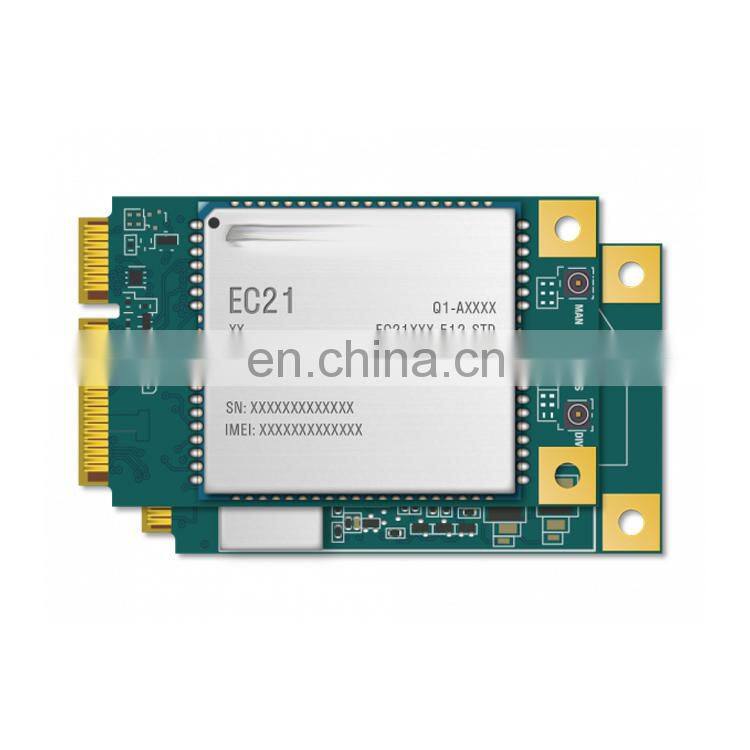

LTE EC21-AU mPCIe ● LTE category 1 module ● 51.0mm × 30.0mm × 4.9mm ● Mini PCIe form factor ● Max. downlink 10Mbps / 5Mbps uplink under LTE ● Extended temperature range of -40°C to +80°C

Overview ● The EC21-AU Mini PCIe is an LTE category 1 module in a standard PCI Express® Mini Card form factor measuring 51.0mm × 30.0mm × 4.9mm, which meets the 3GPP Release 11 standard. The EC21-AU Mini PCIe is optimized for networks in Latin America and Australia. ● The EC21-AU Mini PCIe provides cost-effective, low-power LTE connectivity, delivering maximum downlink rates of 10Mbps and uplink rates of 5Mbps under LTE, and multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability. This makes the series ideal for IoT applications which are not reliant on high-speed connectivity but do require the longevity and reliability of LTE networks. It is also backward-compatible with existing 2G networks, ensuring that it can be connected even in remote areas devoid of 3G or 4G network coverage. ● The EC21-AU Mini PCIe supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS), and the integrated GNSS greatly simplifies product design, and provides quicker, more accurate and dependable positioning. ● A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10, Linux, Android and eCall) allow the module to serve a wide range of IoT applications including smart metering, wearable devices, tracking and tracing, smart home gateways, fleet management, digital signage, and drones.

Key Features ● Supports DFOTA ● Supports DTMF ● Supports MIMO ● USB 2.0 high speed interface ● Multi-constellation GNSS receiver available
