SIMCOM SIM8200G Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ Module, 5G Module SIM8200G SIM8200 up to 4.0 Gbps Data Transfer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Simcom SIM7906E-M2 SIM7906E Multi-Band LTE CAT6 LTE-FDD/LTE-TDD/HSPA+ ModuleNegotiableMOQ: 1 -
LTE Cat12 Module SIMCOM SIM7912G M2 Type Multi-Band LTE-FDD/LTE-TDD/HSPA+ 4G LTE Module SIM7912NegotiableMOQ: 1
-
4G Mini PCIE Module SIMCOM SIM7100ANegotiableMOQ: 1
-
SIMCOM SIM7100A GSM 4G LTE ModuleNegotiableMOQ: 1
-
4G LTE Mini Pci or LGA Version Module SIM7100A With Multi-Band 4G Dual-Band 3G SMT MINI PCIENegotiableMOQ: 1
Description
SIM8200G

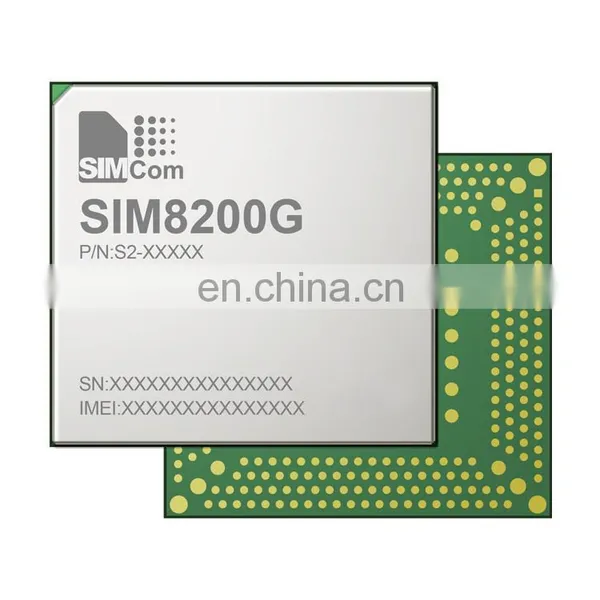

●The SIM8200G is Multi‐Band 5G NR/LTE‐FDD/LTE‐TDD/HSPA+ module solution in a LGA type which supports R15 5g NSA/SA up to 4.0 Gbps data transfer.
●It has strong extension capability with rich interfaces including UART,PCIe,USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's application.
●The package of SIM8200G is LGA form factor. This also minimize the investments of customers, and enables a short time‐to‐market.
●It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.
Product Advantages
● Standard LGA interface.
● High throughput data communication.
General Features |
Other Features |

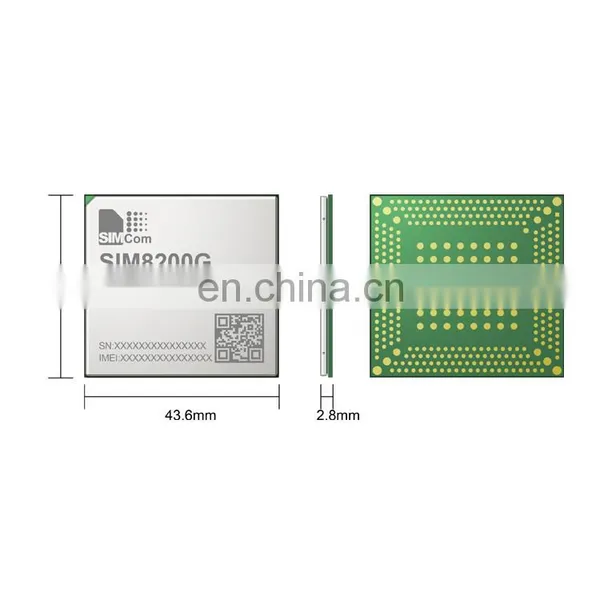

• Supply voltage range: 3.3V ~ 4.3V • Control Via AT Commands • Operation temperature: ‐40℃ ~ +85℃ • Dimensions: 41.0*43.6*2.8mm • Weight: TBD • Sub‐6G/LTE‐FDD/LTE‐TDD/WCDMA • Support UL 2XCA |
• USB Driver for Microsoft Windows Win7/Win8/Win10 • USB Driver for Linux /Android • RIL supporting for Android 5.0/6.0/7.0/8.0 • RNDIS /NDIS/PPP/MBIM to Win8 • Firmware update via USB • TCP/IP/IPV4/IPV6/Multi‐PDP/FTPS /HTTPS/MQTTS/DNS • SSL3.0/TLS1.0/TLS1.2 • DTMF (Sending and Receiving) • VoNR/VoLTE/CSFB • FOTA/OTA • AGPS/SUPL2.0v |
Data |
Interfaces |
• Sub‐6G ‐ Uplink up to 450Mbps ‐ Downlink up to 4 Gbps • LTE CAT22 ‐ Uplink up to 200Mbps ‐ Downlink up to 2.4Gbps • HSPA+ ‐ Uplink up to 5.76Mbps ‐ Downlink up to 42.0Mbps |
• USB2.0 with High speed up to 480Mbps • USB3.1 with SS Gen2 • UART • USIM and E‐SIM interface(1.8V /2.85V) • Digital Audio through PCM • I2C • I2S for Audio • SPI • ADC • GPIOs • RGMII • PCIe Gen3 • SDIO3.0 • WIFI • PMI • Antenna x 8 |
Approvals |
|
• RoHSREACHCCCCTASRRCMobileUnicomTelecomJATETelecRCMCE(RED)GCF |
5G NR |
n1,n2,n3,n5,n7,n8,n12,n20,n25,n28,n40,n41,n66,n71,n77,n78,n79 |
LTE-TDD |
B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 |
LTE‐TDD |
B34/B38/B39/B40/B41/B42/B43/B48 |
WCDMA |
B1/B2/B3/B4/B5/B8 |
