SIMCOM 5G Module SIM8202 SIM8202E SIM8202G, Multi-Band Module 5G NR/LTE-FDD/LTE-TDD/HSPA+ SIM8202G-M2 SIM8202E-M2
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SIMCOM SIM8202E-M2 SIM8202G-M2 Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ Module, 5G Module SIM8202 SIM8202E SIM8202GNegotiableMOQ: 1 -
SIMCOM SIM8300G-M2 Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ Module, 5G Module SIM8300 SIM8300G M2 Form FactorNegotiableMOQ: 1
-
SIMCOM SIM8200G Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ Module, 5G Module SIM8200G SIM8200 up to 4.0 Gbps Data TransferNegotiableMOQ: 1
-
Simcom SIM7906E-M2 SIM7906E Multi-Band LTE CAT6 LTE-FDD/LTE-TDD/HSPA+ ModuleNegotiableMOQ: 1
-
LTE Cat12 Module SIMCOM SIM7912G M2 Type Multi-Band LTE-FDD/LTE-TDD/HSPA+ 4G LTE Module SIM7912NegotiableMOQ: 1
Description
SIM8202X-M2
● The SIM8202X-M2 is the Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module which supports R15 5G NSA/SA up to 2.4Gbps data transfer.
● It has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.
● The SIM8202X-M2 adopts M.2 form factor, TYPE 3042-S3-B. AT commands of SIM8202X-M2 are compatible with SIM7912G/SIM8200X-M2 series modules. This also minimizes the investments of customers and enables a short time-to-market.
● It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.
Product Advantages
● Standard M.2 interface
● High throughput data communication
● AT commands of the SIM8202X-M2 are compatible with SIM7912G/SIM8200X-M2 series modules
Product |
SIM8202E-M2 |
SIM8202G-M2 |
||||
Form Factor |
M.2 |
M.2 |
||||

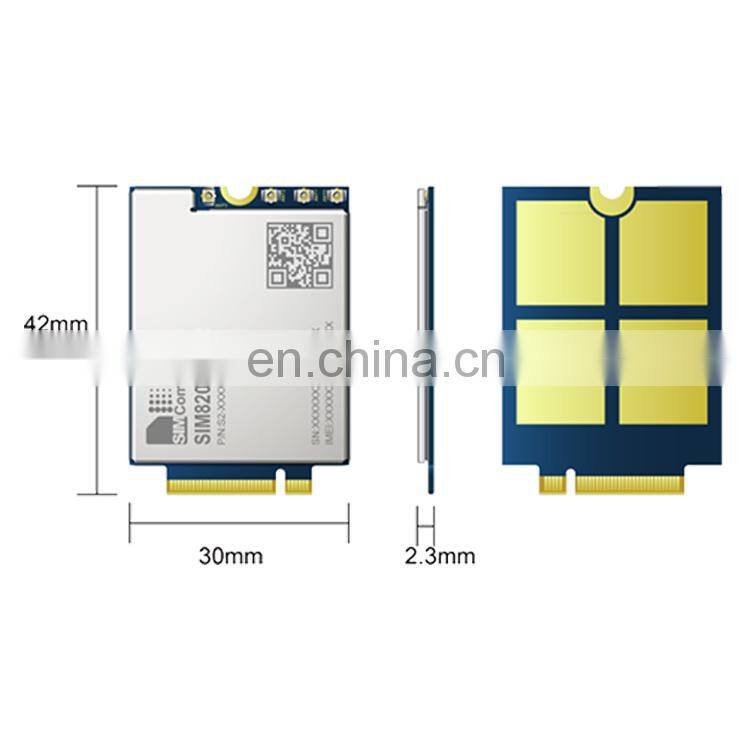

Dimensions(mm) |
42.0*30.0*2.3 |
42.0*30.0*2.3 |
||||
Frequency Bands |
Sub-6G |
n1,n2,n3,n5,n7,n8,n12,n20,n28,n38,n40,n41,n48,n66,n71,n77,n78,n79 |
n1,n2,n3,n5,n7,n8,n12,n20,n28,n38,n40,n41,n48,n66,n71,n77,n78,n79 |
|||
LTE-FDD |
B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 |
B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 |
||||
LTE-TDD |
B34/B38/B39/B40/B41/B42/B43/B48 |
B34/B38/B39/B40/B41/B42/B43/B48 |
||||
LAA |
B46 |
B46 |
||||
WCDMA |
B1/B2/B3/B4/B5/B8 |
B1/B2/B3/B4/B5/B8 |
||||
GNSS |
● |
● |
||||
Temperature |
-30℃ ~ +70℃ |
-30℃ ~ +70℃ |
||||
Electrical Features |
||||||
Supply Voltage(V) |
3.135 ~ 4.4 |
3.135 ~ 4.4 |
||||
Data Transfer |
||||||
Sub-6G |
2.4Gbps(DL)/500Mbps(UL) |
2.4Gbps(DL)/500Mbps(UL) |
||||
LTE |
1Gbps(DL)/200Mbps(UL) |
1Gbps(DL)/200Mbps(UL) |
||||
HSPA+ |
42Mbps (DL)/5.76Mbps(UL) |
42Mbps (DL)/5.76Mbps(UL) |
||||
Software Features |
||||||
Protocol |
TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0 |
TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0 |
||||
TLS |
● |
● |
||||
File System |
● |
● |
||||
FOTA |
● |
● |
||||
Android RIL |
Android 6/7/8/9 |
Android 6/7/8/9 |
||||
USB Driver |
Microsoft Windows Win7/Win8/Win10/Linux/Android |
Microsoft Windows Win7/Win8/Win10/Linux/Android |
||||
MBIM |
Win8/Win10 |
Win8/Win10 |
||||
NDIS |
Linux/Win7/Win8/Win10 |
Linux/Win7/Win8/Win10 |
||||
Firmware Upgrade |
USB |
USB |
||||
Interfaces |
||||||
SIM Card |
1.8V/2.95V |
1.8V/2.95V |
||||
USB |
● |
● |
||||
PCIe |
● |
|||||
PCM |
● |
● |
||||
I2C |
● |
● |
||||
UART |
● |
|||||
Diversity Receiver |
● |
|||||
Certifications |
||||||
Regulatory |
CE*/RCM*/RoHS*/REACH* |
CCC/SRRC*/CTA*/RoHS*/REACH*/CE* |
||||
