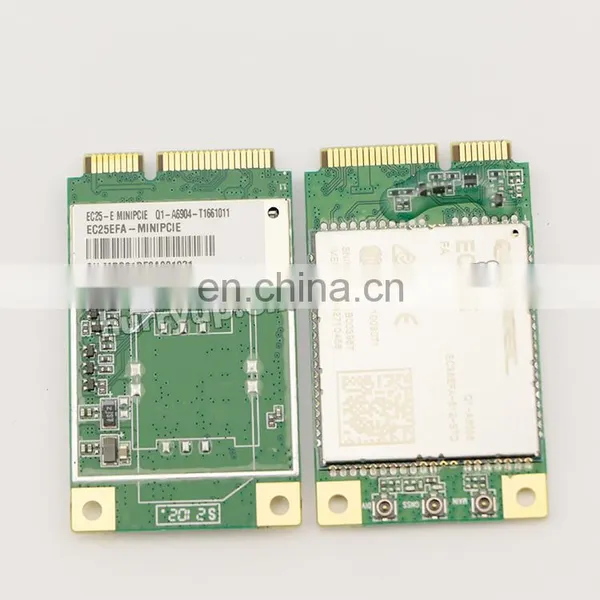

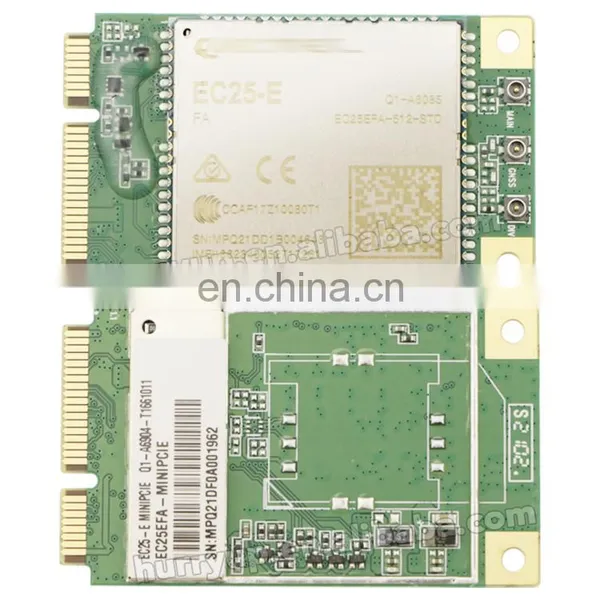

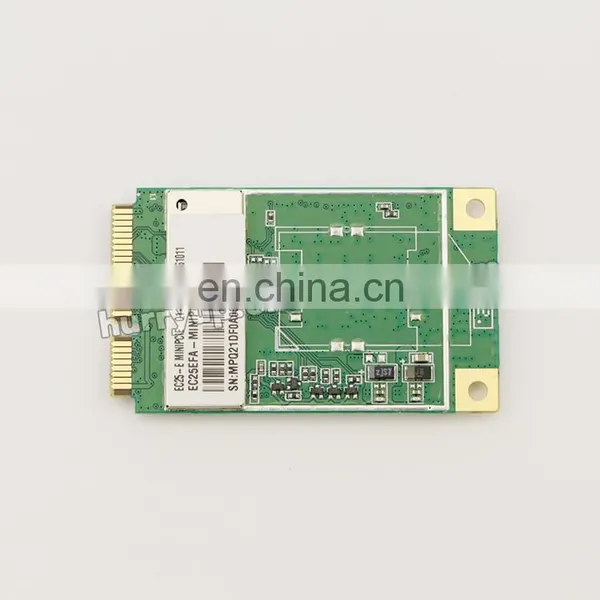

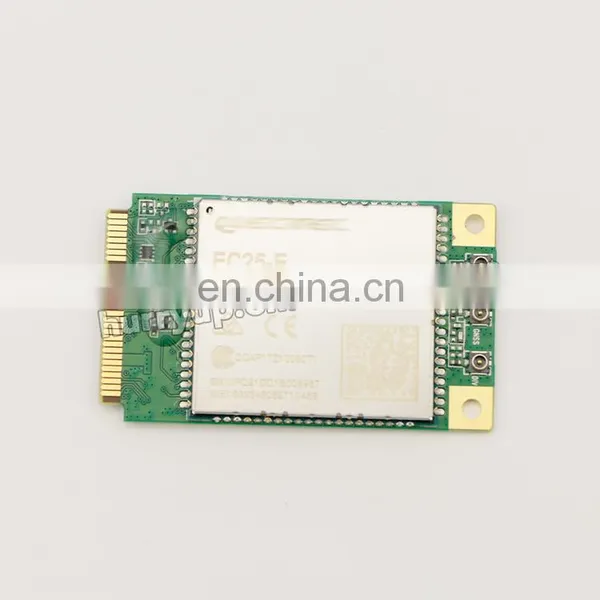

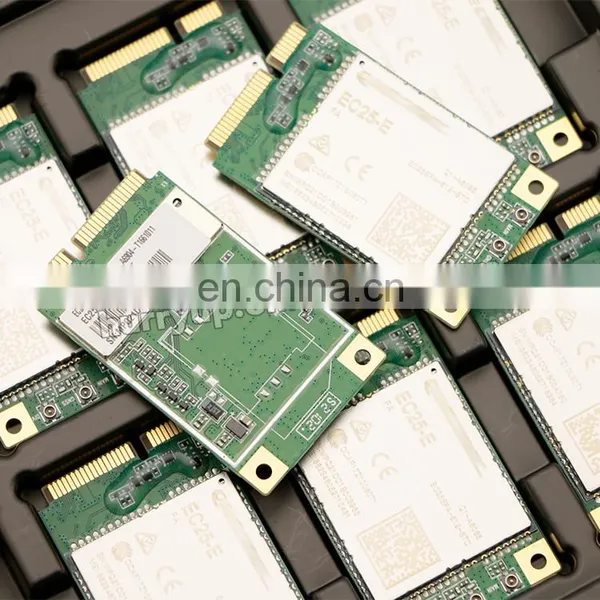

EC25 Mini PCIe 4G Module LTE Cat.4 EC25-E
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EG25-G EG25 LGA Form Factor 4G Global Band FDD-LTE/TDD-LTD CAT4 LTE ModuleNegotiableMOQ: 1 -
SIMCOM SIM7600E-H Mini PCIe 4G Module, LTE Module Cat.4 Mini PCIe Form Factor, SIM7600A/SA/J AvailableNegotiableMOQ: 1
-
SIMCOM SIM7600G-H LTE CAT4 Multi-Band LTE-FDD/LTE-TDD/HSPA+ and GSM/GPRS/EDGE ModuleNegotiableMOQ: 1
-
4G LTE Module EP06-A LTE-A Cat6 Module, Mini PCIe EP06ALA EP06 EP06ALA-512-SGADNegotiableMOQ: 1
-
SIMCOM SIM7600G IoT 4G LTE Module for Global Network, SIM7600 Wireless NB-IoT Module With 2G GSM GPRS FallbackNegotiableMOQ: 1
Description
Overview
EC25 Mini PCIe is a series of LTE category 4 module adopting standard PCI Express® Mini Card form factor (Mini PCIe). It is optimized specially for M2M and IoT applications, and delivers 150Mbps downlink and 50Mbps uplink data rates.
EC25 Mini PCIe contains 11 variants: EC25-E Mini PCIe, EC25-EU Mini PCIe, EC25-EUX Mini PCIe, EC25-J Mini PCIe, EC25-A Mini PCIe, EC25-V Mini PCIe, EC25-AF Mini PCIe, EC25-AFX Mini PCIe, EC25-MX Mini PCIe, EC25-AU Mini PCIe and EC25-AUX Mini PCIe. This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.
EC25 Mini PCIe supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M applications such as industrial router, industrial PDA, rugged tablet PC, video surveillance and digital signage.www.hurryup.en.china.cn
Key Benefits
● LTE category 4 module optimized for broadband IoT applications
● Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE coverage
● Standard PCI Express® Mini Card form factor (Mini PCIe) ideal for manufacturers to easily integrate wireless connectivity into their devices
● MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
● Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
EC25-E Mini PCIe
LTE-FDD: B1/B3/B5/B7/B8/B20
LTE-TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM/EDGE: B3/B8
Embedded GNSS: Optional
Region: EMEA/South Korea/ Thailand/India
Carrier:
Vodafone/Deutsche Telekom/ SKT/ Telefónica/
KT*/ LGU+*
Regulatory:
GCF/ CE/ KC/ NCC/ RCM/ FAC/ NBTC/ ICASA
Others:
WHQL
Vodafone/Deutsche Telekom/ SKT/ Telefónica/
KT*/ LGU+*
Regulatory:
GCF/ CE/ KC/ NCC/ RCM/ FAC/ NBTC/ ICASA
Others:
WHQL
EC25-EU Mini PCIe
LTE-FDD: B1/B3/B7/B8/B20/B28A
LTE-TDD: B38/B40/B41
WCDMA: B1/B8
GSM/EDGE: B3/B8
Embedded GNSS: Optional
Region: EMEA/Thailand
LTE-TDD: B38/B40/B41
WCDMA: B1/B8
GSM/EDGE: B3/B8
Embedded GNSS: Optional
Region: EMEA/Thailand
Carrier:
Deutsche Telekom/ British Telecom
Regulatory:
GCF/ CE/ NCC/ RCM
Others:
WHQL
Deutsche Telekom/ British Telecom
Regulatory:
GCF/ CE/ NCC/ RCM
Others:
WHQL
EC25-EUX Mini PCIe
LTE-FDD: B1/B3/B7/B8/B20/B28A
LTE-TDD: B38/B40/B41
WCDMA: B1/B8
GSM/EDGE: B3/B8
Embedded GNSS: Optional
Region: EMEA/Thailand
Regulatory:
GCF/ CE/ NCC/ RCM
Others:
WHQL
EC25-J Mini PCIe
LTE-FDD: B1/B3/B8/B18/B19/B26
LTE-TDD: B41
WCDMA: B1/B6/B8/B19
GSM/EDGE: /
Embedded GNSS: Optional
Region:Japan
LTE-TDD: B38/B40/B41
WCDMA: B1/B8
GSM/EDGE: B3/B8
Embedded GNSS: Optional
Region: EMEA/Thailand
Regulatory:
GCF/ CE/ NCC/ RCM
Others:
WHQL
EC25-J Mini PCIe
LTE-FDD: B1/B3/B8/B18/B19/B26
LTE-TDD: B41
WCDMA: B1/B6/B8/B19
GSM/EDGE: /
Embedded GNSS: Optional
Region:Japan
Carrier:
NTT DOCOMO/ SoftBank/ KDDI
Regulatory:
JATE/ TELEC
Others:
WHQL
NTT DOCOMO/ SoftBank/ KDDI
Regulatory:
JATE/ TELEC
Others:
WHQL
EC25-A Mini PCIe
LTE-FDD: B2/B4/B12
LTE-TDD: /
WCDMA: B2/B4/B5
GSM/EDGE: /
Embedded GNSS: Optional
Region: North America
Carrier:
AT&T/T-Mobile/ Rogers/ Telus
Regulatory:
FCC/ IC/ PTCRB
Others:
WHQL
EC25-V Mini PCIe
LTE-FDD: B4/B13
LTE-TDD: /
WCDMA: /
GSM/EDGE: /
Embedded GNSS: Optional
Region: Verizon
Carrier:
Verizon
Regulatory:
GCF/ FCC
Others:
WHQL
LTE-TDD: /
WCDMA: B2/B4/B5
GSM/EDGE: /
Embedded GNSS: Optional
Region: North America
Carrier:
AT&T/T-Mobile/ Rogers/ Telus
Regulatory:
FCC/ IC/ PTCRB
Others:
WHQL
EC25-V Mini PCIe
LTE-FDD: B4/B13
LTE-TDD: /
WCDMA: /
GSM/EDGE: /
Embedded GNSS: Optional
Region: Verizon
Carrier:
Verizon
Regulatory:
GCF/ FCC
Others:
WHQL
EC25-AF Mini PCIe
LTE-FDD: B2/B4/B5/B12/B13/B14/B66/B71
LTE-TDD: /
WCDMA: B2/B4/B5
GSM/EDGE: /
Embedded GNSS: Optional
Region:North America FirstNet
Carrier:
Verizon/ AT&T/ T-Mobile/ U.S. Cellular/ Rogers/ Telus
Regulatory:
GCF/ FCC/ PTCRB/ IC
Others:
WHQL
WCDMA: B2/B4/B5
GSM/EDGE: /
Embedded GNSS: Optional
Region:North America FirstNet
Carrier:
Verizon/ AT&T/ T-Mobile/ U.S. Cellular/ Rogers/ Telus
Regulatory:
GCF/ FCC/ PTCRB/ IC
Others:
WHQL
EC25-AFX Mini PCIe
LTE-FDD: B2/B4/B5/B12/B13/B14/B66/B71
LTE-TDD: /
WCDMA: B2/B4/B5
GSM/EDGE: /
Embedded GNSS: Optional
Region: North America FirstNet
Carrier:
Verizon*/ AT&T*/ T-Mobile*/
U.S. Cellular*/ Rogers*/ Bell*/ Telus*
Regulatory:
GCF/ FCC/ PTCRB/ IC
Others:
WHQL
EC25-MX Mini PCIe
LTE-FDD: B2/B4/B5/B7/B28/B66
LTE-TDD: /
WCDMA: B2/B4/B5
GSM/EDGE: /
Embedded GNSS: N
Region: Mexico
Regulatory:
FCC/ PTCRB/ IFETEL
Others:
WHQL
EC25-AU Mini PCIe
LTE-FDD: B1/B2①/B3/B4/B5/B7/B8/B28
LTE-TDD: B40
WCDMA: B1/B2/B5/B8
GSM/EDGE: Quad-band
Embedded GNSS: Optional
Region: Latin America/Australia/New Zealand
Carrier:
Telstra*
Regulatory:
GCF/ FCC/ Anatel/ NCC/ RCM
Others:
WHQL
EC25-AUX Mini PCIe
LTE-FDD: B1/B2①/B3/B4/B5/B7/B8/B28
LTE-TDD: B40
WCDMA: B1/B2/B5/B8/B4
GSM/EDGE: Quad-band
Embedded GNSS: Optional
Region:Latin America/Australia/New Zealand
LTE-FDD: B2/B4/B5/B12/B13/B14/B66/B71
LTE-TDD: /
WCDMA: B2/B4/B5
GSM/EDGE: /
Embedded GNSS: Optional
Region: North America FirstNet
Carrier:
Verizon*/ AT&T*/ T-Mobile*/
U.S. Cellular*/ Rogers*/ Bell*/ Telus*
Regulatory:
GCF/ FCC/ PTCRB/ IC
Others:
WHQL
EC25-MX Mini PCIe
LTE-FDD: B2/B4/B5/B7/B28/B66
LTE-TDD: /
WCDMA: B2/B4/B5
GSM/EDGE: /
Embedded GNSS: N
Region: Mexico
Regulatory:
FCC/ PTCRB/ IFETEL
Others:
WHQL
EC25-AU Mini PCIe
LTE-FDD: B1/B2①/B3/B4/B5/B7/B8/B28
LTE-TDD: B40
WCDMA: B1/B2/B5/B8
GSM/EDGE: Quad-band
Embedded GNSS: Optional
Region: Latin America/Australia/New Zealand
Carrier:
Telstra*
Regulatory:
GCF/ FCC/ Anatel/ NCC/ RCM
Others:
WHQL
EC25-AUX Mini PCIe
LTE-FDD: B1/B2①/B3/B4/B5/B7/B8/B28
LTE-TDD: B40
WCDMA: B1/B2/B5/B8/B4
GSM/EDGE: Quad-band
Embedded GNSS: Optional
Region:Latin America/Australia/New Zealand
Regulatory:
CE/ NCC/ Anatel/ RCM
Others:
WHQL
CE/ NCC/ Anatel/ RCM
Others:
WHQL
Notes:
① LTE-FDD B2 of EC25-AU Mini PCIe and EC25-AUX Mini PCIe does not support Rx-diversity.
* Under development
① LTE-FDD B2 of EC25-AU Mini PCIe and EC25-AUX Mini PCIe does not support Rx-diversity.
* Under development
