Home > Packaging & Printing > Packing Machinery > Multi-Function Packing Machine > Insulating Material Die Cutting Machine
Insulating Material Die Cutting Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2000
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Label Die Cutting MachineNegotiableMOQ: 1 -
Automatic Flat Bed Die CutterNegotiableMOQ: 1
-
DP-320B Automatic Label Die Cutting Machine 180 M/min Production Capacity 320*300mm About 8 Ton 320mm Max. Workable WidthNegotiableMOQ: 1
-
Flexo Print Label a3 Die Cutting MachineNegotiableMOQ: 1
-
Mylar Cutter With Automatic Die CuttingNegotiableMOQ: 1

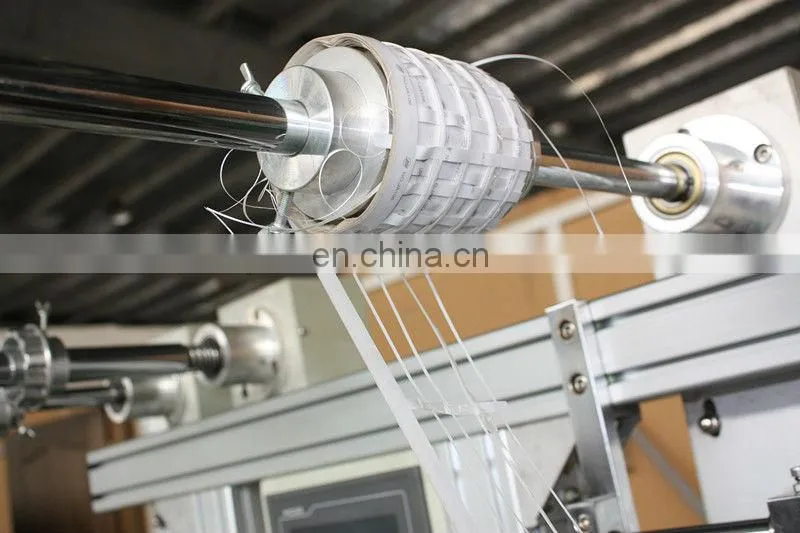

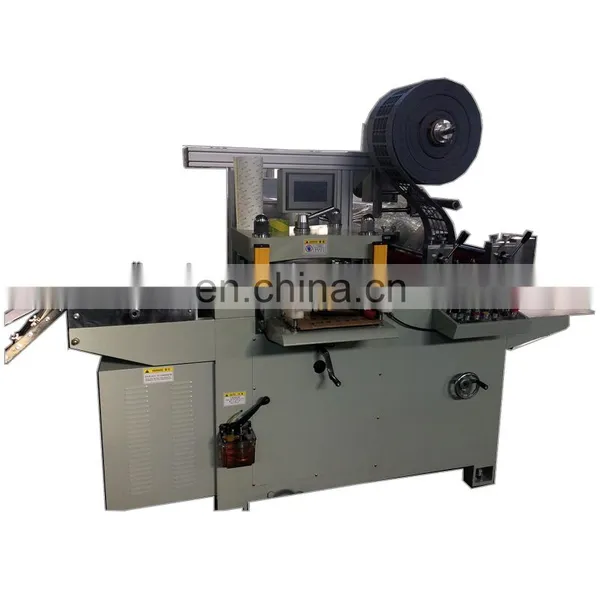

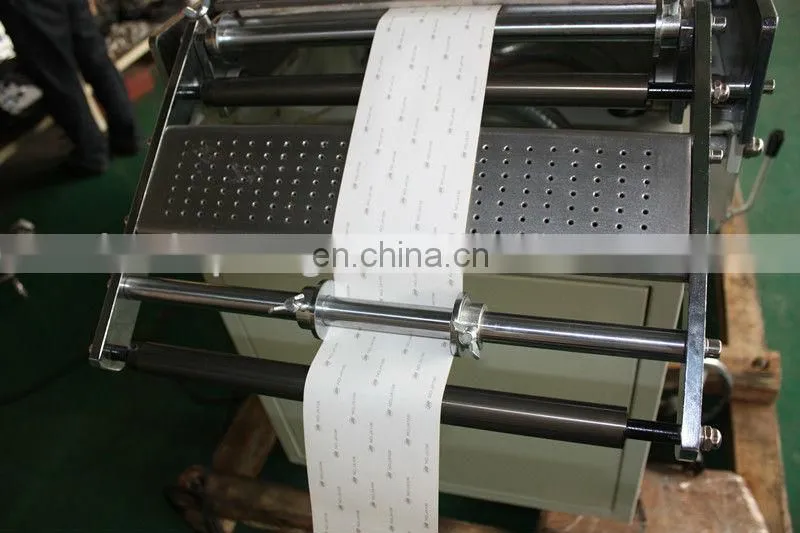

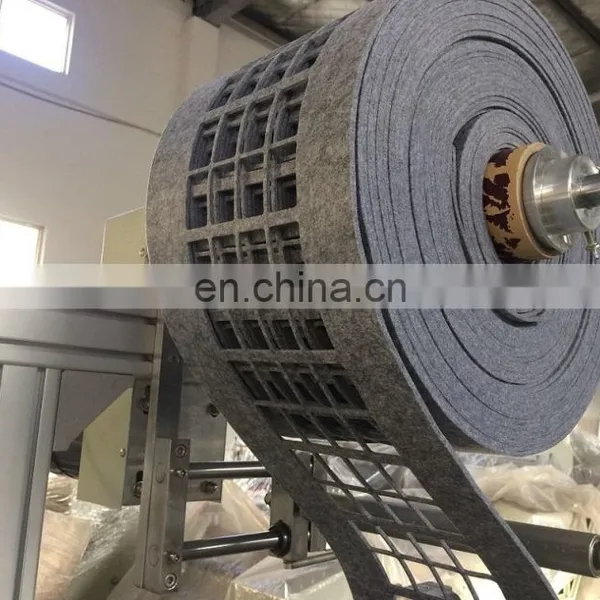

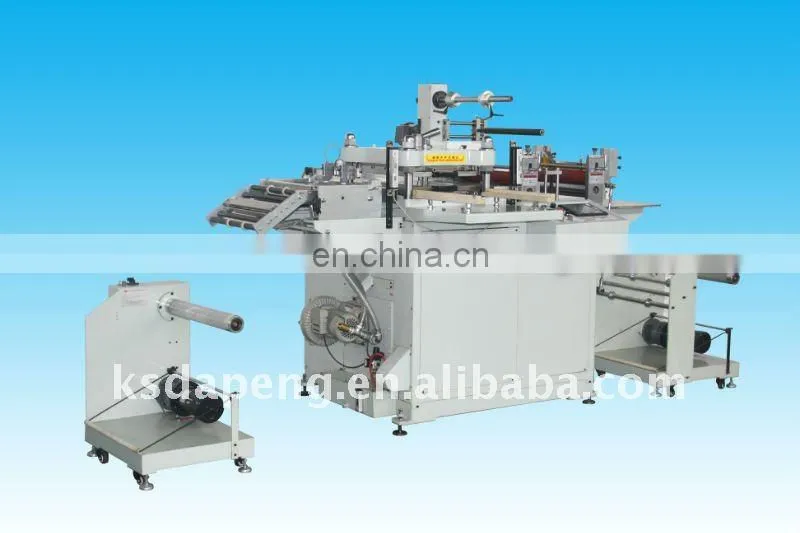

DP-320B insulating material die cutting machine
| Functional characteristics: | ||
| 320B die cutting machine is developed on the basis of imported cutting machine. The machine body is cast on the whole, and the mahcine enjoys powerfull pressure, stable operation, firm and durable. | ||
| It contains an oil gear box which reduces abrasion to the mahcine during the operation, thus prolonging the life span of the machine, enhacing the utilization ratio of the machine. | ||
| Press itinerary and pull the material length are automatically adjusted by the screen, make moulding-adjustment more convenient | ||
| Scope applicable: | ||
| The product is developed aiming at the die cutting and forming of various insulating materials such as PVC, film, Mylar, copper oil, aluminum foil, foam, etc. in the electronic industry. | ||
| Model | DP-320B | DP-420B |
| Max Feeding Width ( mm ) | 320 | 420 |
| Cutting Area ( mm ) | 320*300 | 450*400 |
| Cutting Speed ( T/M) | 30-170 | 30-170 |
| Position Accuracy ( mm ) | ±0.1 | ±0.1 |
| Power of Main Engine ( kw ) | 2.2 | 3 |
| Size ( mm ) | 2300*1250*1500 | 2400*1290*1610 |
| Voltage (V ) | 220 | 380 |
